Name: Siemens 3RV2021-4AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 10 - 16 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1704557
Availability: InStock

An open electrical cabinet with electrical components stands beside a rain-spattered window, overlooking an industrial machine.

Diagram shows electrical accessories in an installation. Components such as auxiliary switches and signal switches are numbered and interconnected.

'Circuit diagram shows a three-phase power switch connected with three fuses (L1, L2, L3) linked to transformer windings (T1, T2, T3).'

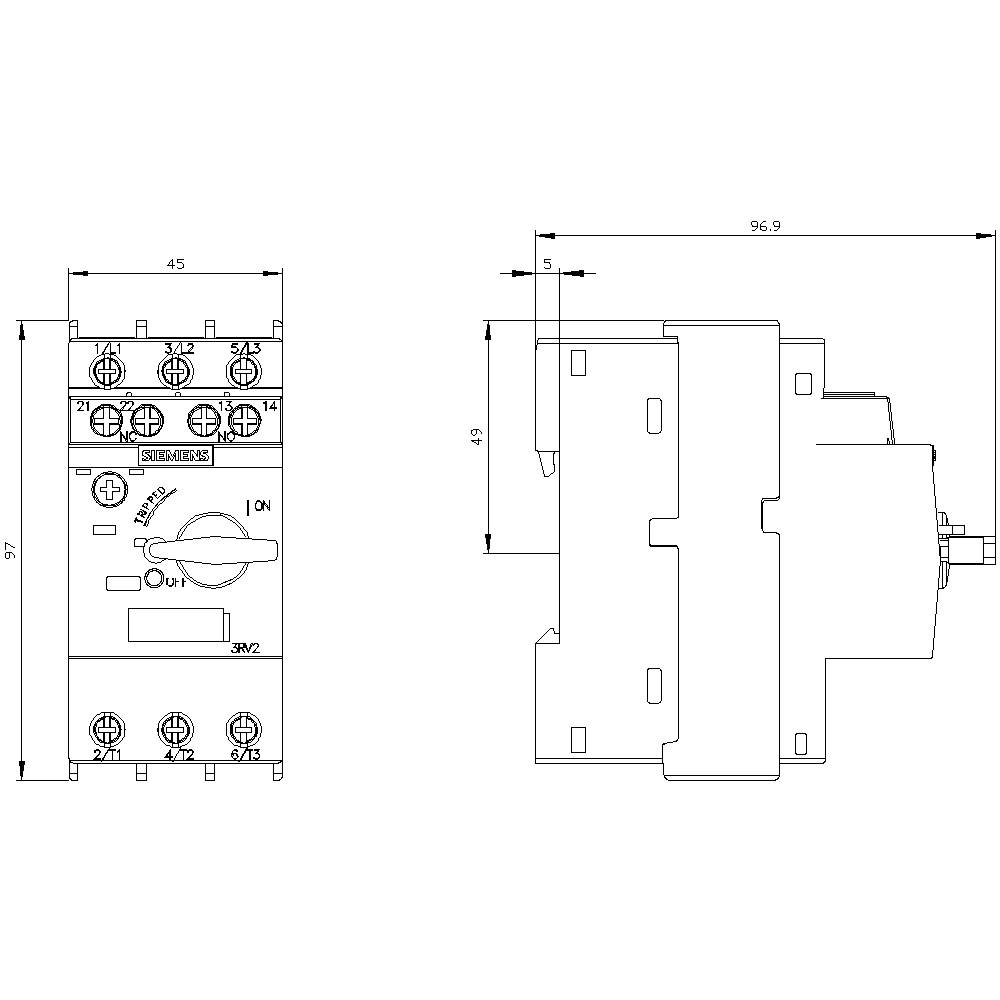

Electrical circuit diagram of a motor protection switch with front and side view. Dimensions: 97x96.9mm. Switch positions: 'ON' and 'OFF'.

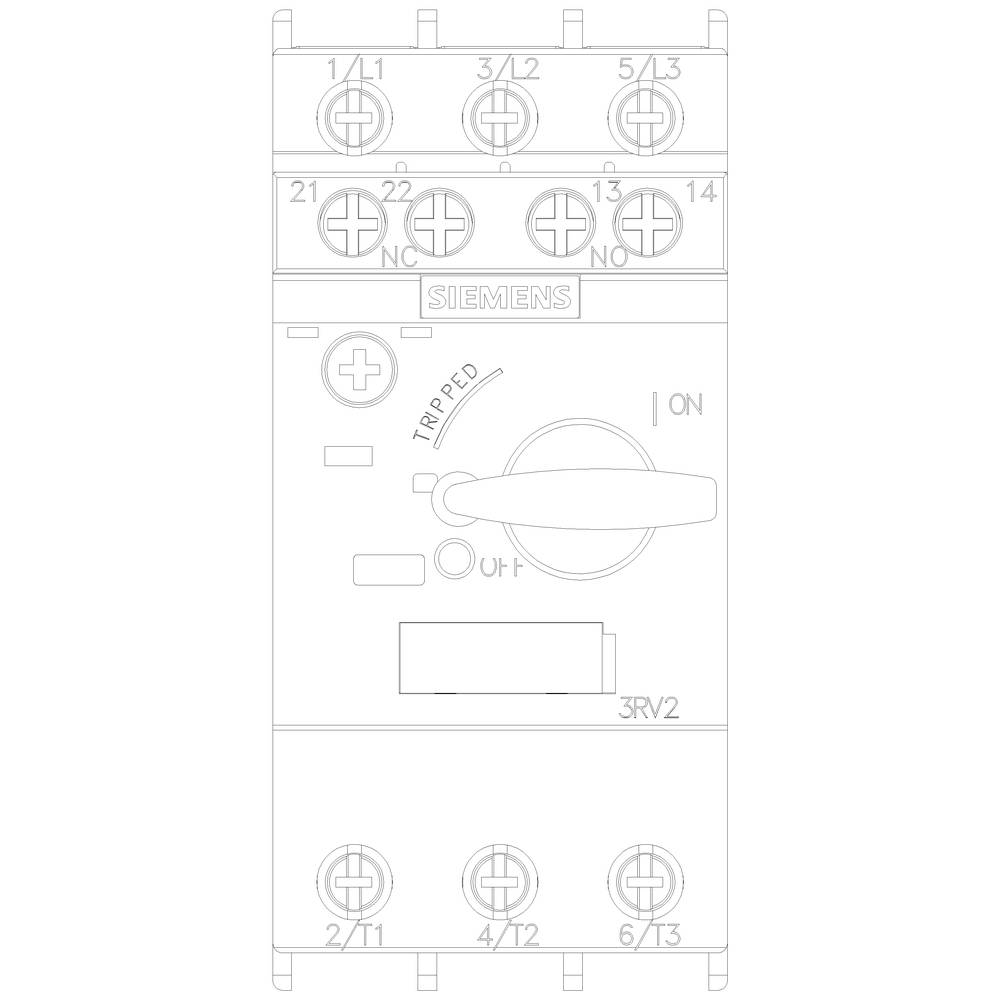

'Line drawing of a Siemens motor starter with operating controls and connection terminals, without further details.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

16 A

Connection

Screws

Type

3RV2021-4AA15

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 16 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Product type: Circuit breaker

Type: 3RV2021-4AA15

Type: S0

Amperage adjustment range (min.): 10 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 10 - 16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 7.5 kW

: TRUE

: 16 A

: FALSE

: 3

: 690-690 V

: 10-16 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 4 kW

: 55 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
