Name: Siemens 3RV2031-4UB10 Circuit breaker 1 pc(s) Adjustment range (amperage): 32 - 40 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1704593
Availability: BackOrder

A blue Siemens contactor with a lever and labels for electrical connections. Used for controlling electrical circuits.

An open electrical cabinet with electronic components stands beside a rain-streaked window, through which a production machine is visible.

'Diagram shows auxiliary switchgear for circuit breakers: Cross-connecting auxiliary switches, undervoltage and release mechanisms, indication contacts, terminal blocks.'

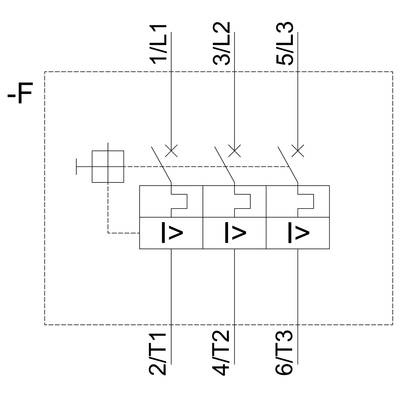

The circuit diagram shows an arrangement of three phase contactor coil contacts (1/L1, 3/L2, 5/L3) with associated connections and labels.

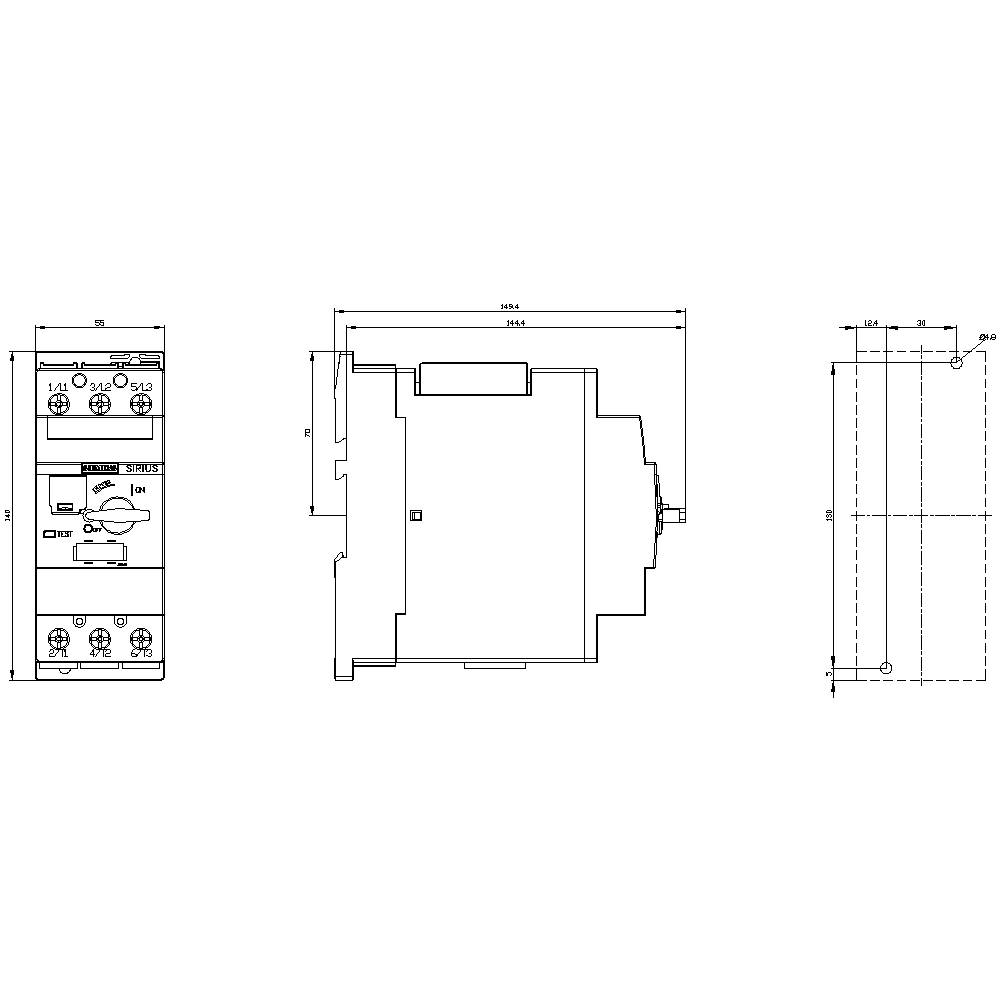

Technical drawing of an electrical device showing front, side, and top views, with dimensions in millimetres.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

40 A

Connection

Screws

Type

3RV2031-4UB10

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 349.00 / piece)

€ 349.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Coil f. 3RT2.4, 200VAC 50 Hz/220V 60 Hz

Our service for you

Technical specifications

Continuous current 40 A
Mechanical life of main contacts: 50000 switching cycles
Max. Conductor cross-section (solid or stranded): 35mm²
Max. Conductor cross-section (fine): 25 mm²

Product type: Circuit breaker

Type: 3RV2031-4UB10

Type: S2

Amperage adjustment range (min.): 32 A

Amperage adjustment range (max.): 40 A

Adjustment range (amperage): 32 - 40 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 149 mm

Width: 55 mm

Height: 140 mm

Dim: (W x H x D) 55 x 140 x 149 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 55

: 140 mm

: 149 mm

: 18.5 kW

: FALSE

: 40 A

: FALSE

: 3

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 11 kW

: 65 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant
