Name: Siemens 3RV2032-4VA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 35 - 45 A Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1706867
Availability: BackOrder

An electrical low-voltage contactor with switching function and multiple connection terminals, suitable for industrial applications.

An electrical control cabinet is open on the left side of the image, revealing complex circuitry. On the right, a wet glass pane is visible.

'Circuit diagram shows auxiliary components for power circuit breaker: Transverse auxiliary switches, lateral auxiliary switches, separator block and signalling block.'

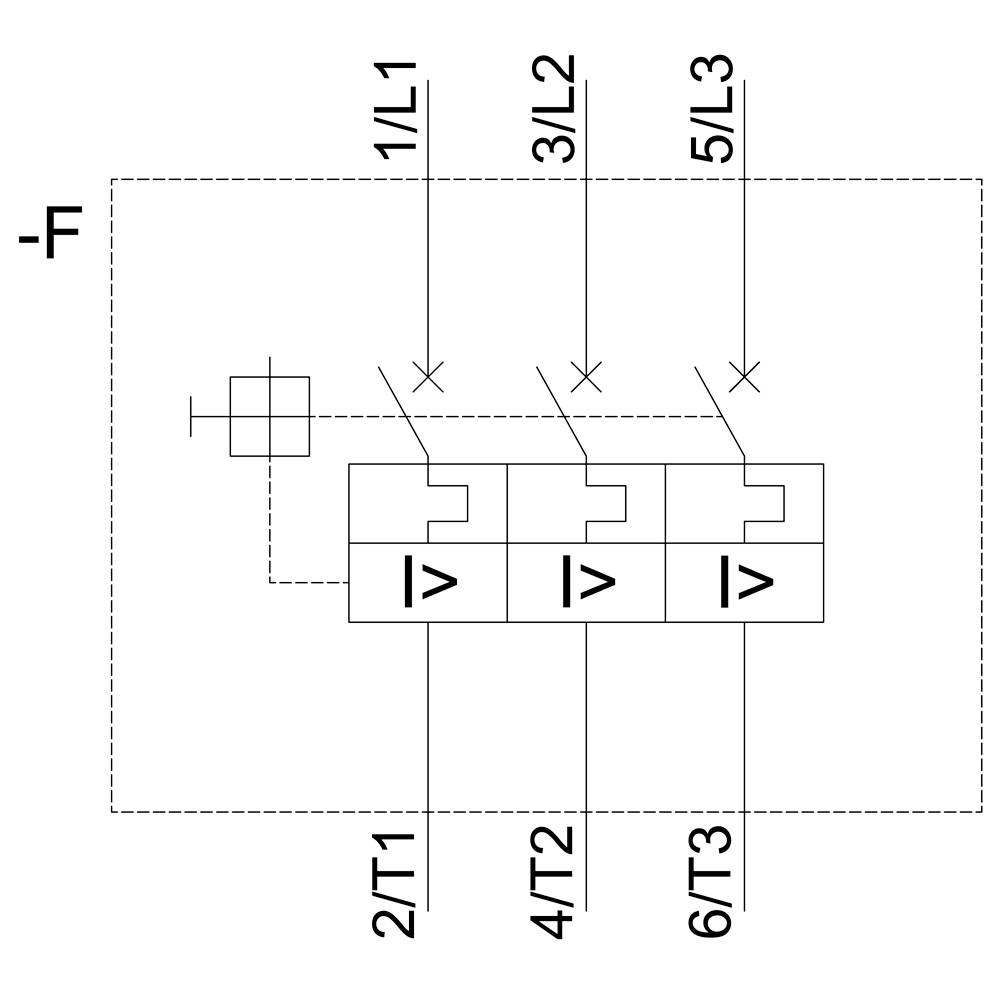

'FI' circuit diagram with three circuit breakers labelled as 1/L1, 3/L2, 5/L3 and 2/T1, 4/T2, 6/T3. Cable connections shown.

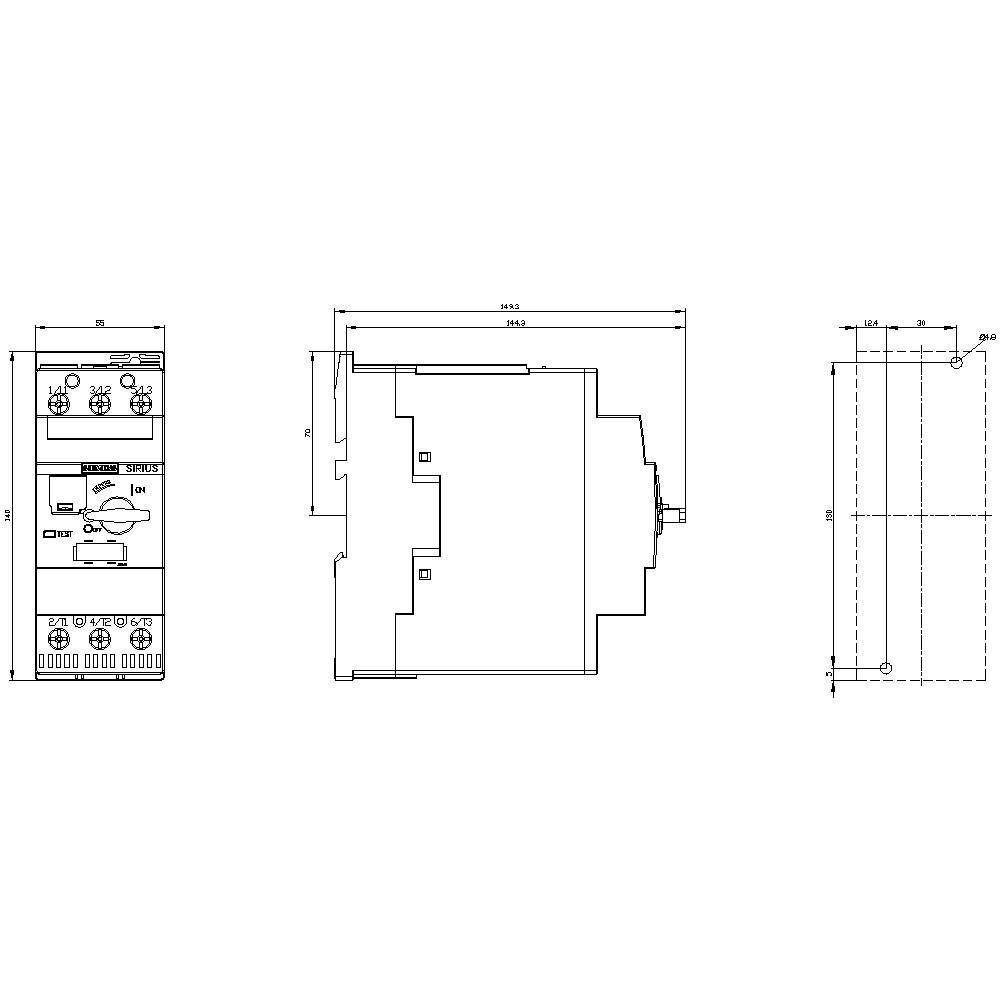

Technical drawing of a relay with front view, side view and dimensions. Control and connection points are marked.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

45 A

Connection

Screws

Packaging type

Piece

Type

3RV2032-4VA10

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 465.00 / piece)

€ 465.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Coil f. 3RT2.4, 400VAC 50 Hz

Our service for you

Technical specifications

Continuous current: 45 A
Mechanical life of main contacts: 50000 switching cycles
Max. Conductor cross-section (solid or stranded): 50 mm²
Max. Conductor cross-section (fine): 35mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2032-4VA10

Type: S2

Amperage adjustment range (min.): 35 A

Amperage adjustment range (max.): 45 A

Adjustment range (amperage): 35 - 45 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 149 mm

Width: 55 mm

Height: 140 mm

Dim: (W x H x D) 55 x 140 x 149 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 55

: 140 mm

: 149 mm

: 22 kW

: FALSE

: 45 A

: FALSE

: 3

: 690-690 V

: 35-45 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 11 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant
