Name: Siemens 3RV2111-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1746913
Availability: BackOrder

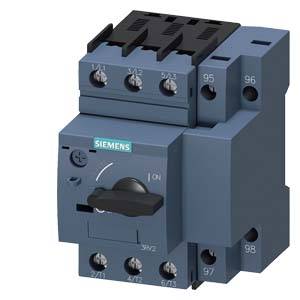

A Siemens electrical circuit breaker in grey, showing the switch and connections.

An open electrical cabinet full of cables and components stands beside a window with raindrops, through which machines can be seen blurrily.

'Diagram shows mounting accessories for switching systems, including cross connectors, auxiliary switches, and terminal blocks for flexible installation.'

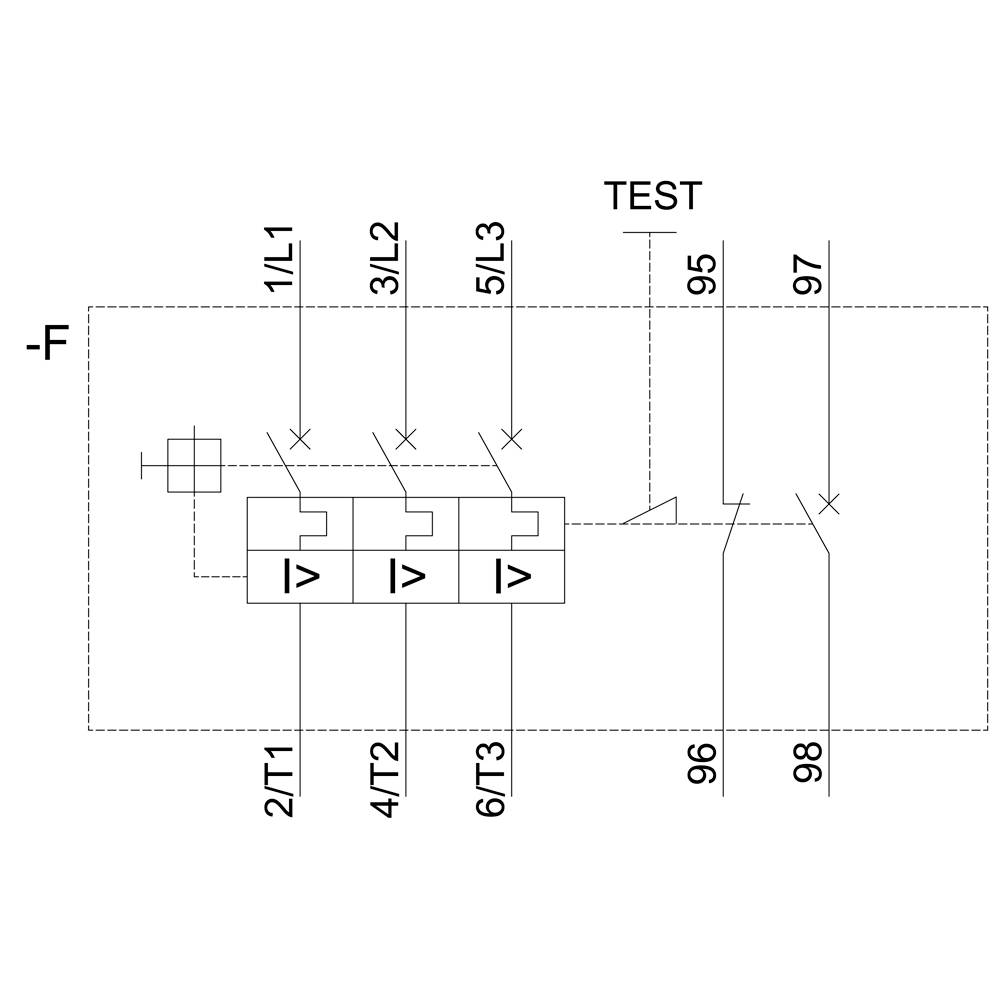

Electrical circuit diagram shows six terminals (1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3), a test button 'TEST', and connection lines.

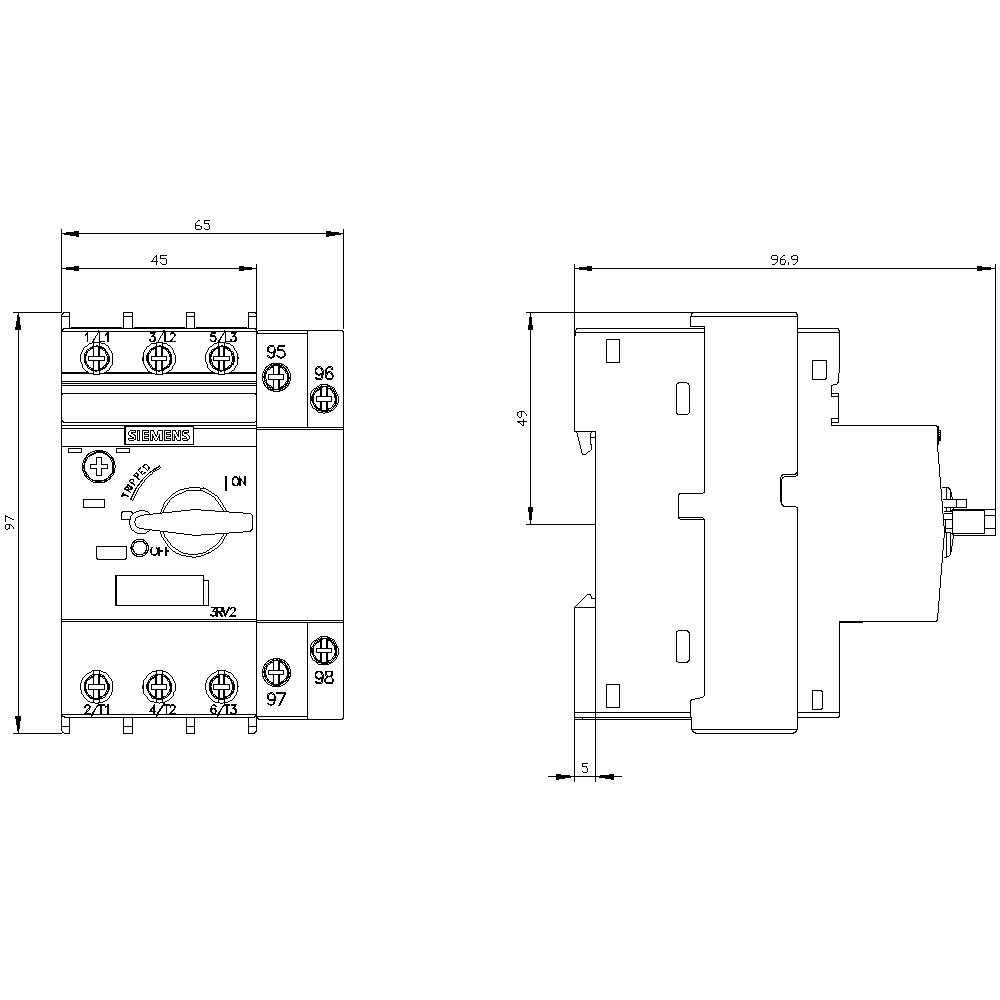

Technical drawing of a circuit breaker with front and side views. Dimensions, connections, and operating button are labelled.

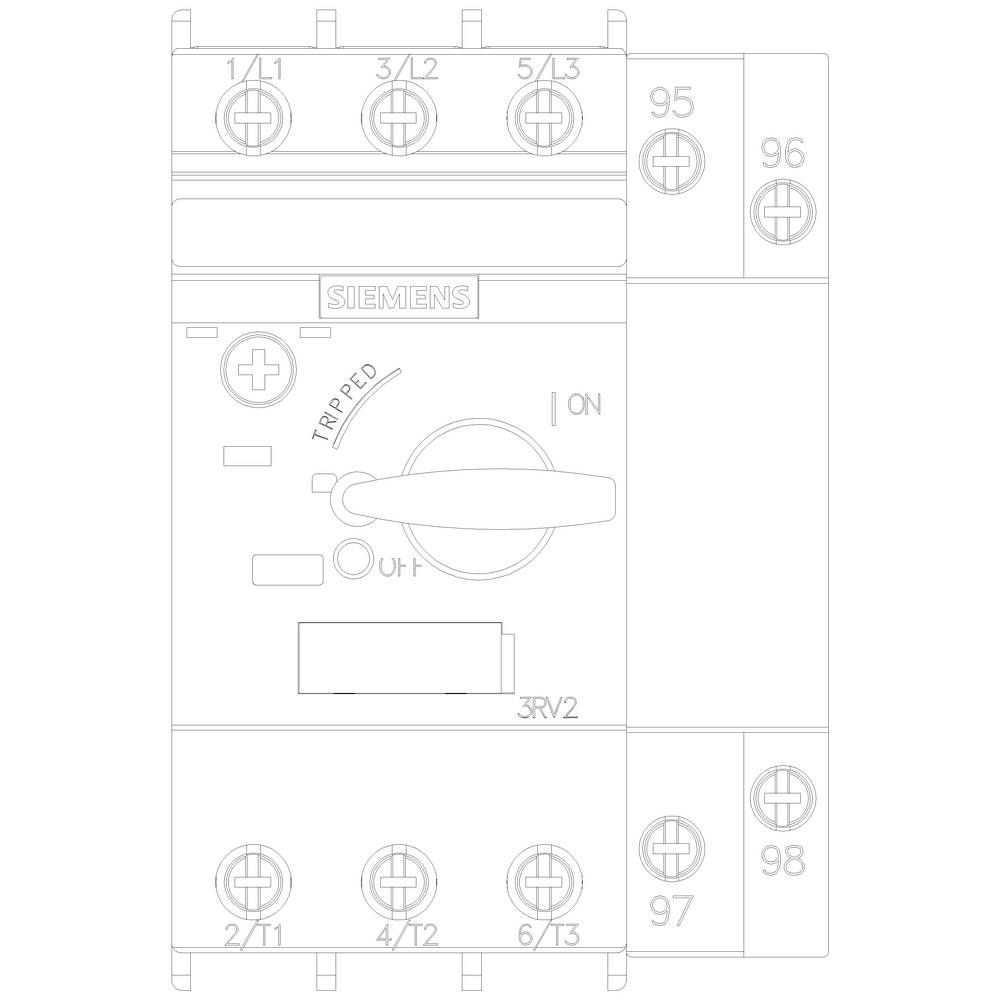

Schematic diagram of a Siemens device with a rotary switch, labelled with 'TRIPPED', 'ON', 'OFF', with connections marked.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.16 A

Connection

Screws

Packaging type

Piece

Type

3RV2111-0AA10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 0.16 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2111-0AA10

Type: S00

Amperage adjustment range (min.): 0.11 A

Amperage adjustment range (max.): 0.16 A

Adjustment range (amperage): 0.11 - 0.16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 65 mm

Height: 97 mm

Dim: (W x H x D) 65 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 65

: 97 mm

: 97 mm

: 0.04 kW

: TRUE

: 0.16 A

: FALSE

: 3

: 690-690 V

: 0.11-0.16 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
