Name: Siemens 3RV2111-0FA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1699602
Availability: BackOrder

Blue protective device with multiple connections and switches, labelled 'Siemens'. Used in electrical circuits.

Industrial Plant: Open electrical cabinet with cables and switches on the left. Wet, rain-covered window on the right with blurred machine view in the background.

'Diagram of accessories for circuit breakers shows types, connection options and compatibilities of various modules.'

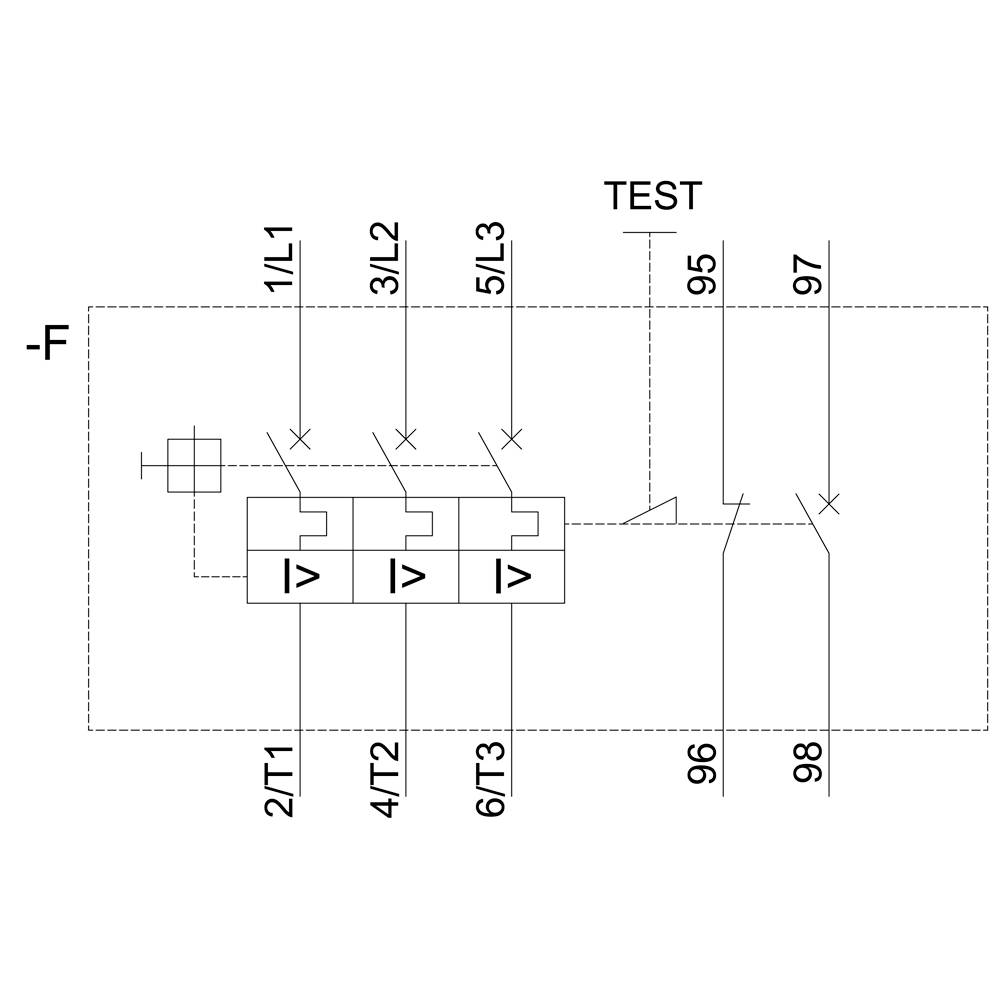

'Diagram of an electrical circuit plan with symbols for switches and conductors, numbered from 1/T1 to 6/T3, including test area.'

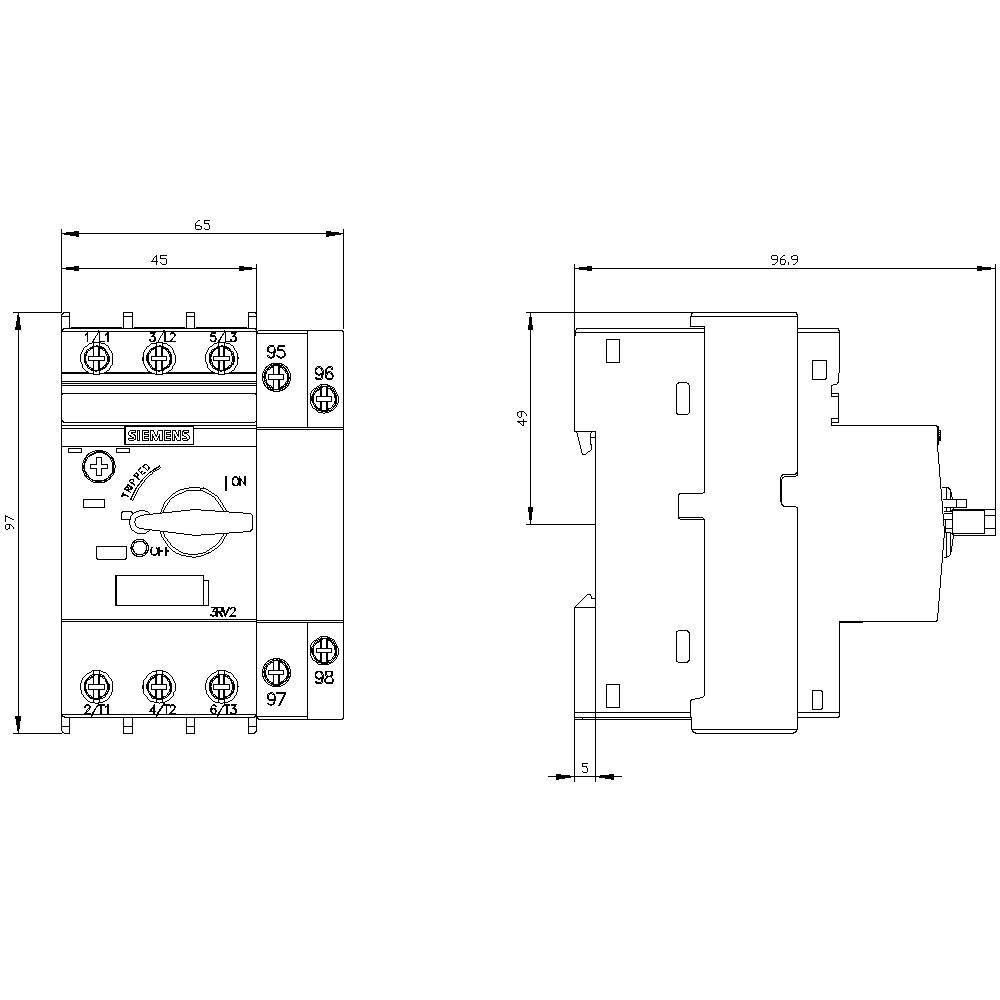

Drawing of an electrical switch with dimensions; front view shows switch and numbering, side view provides depth measurement.

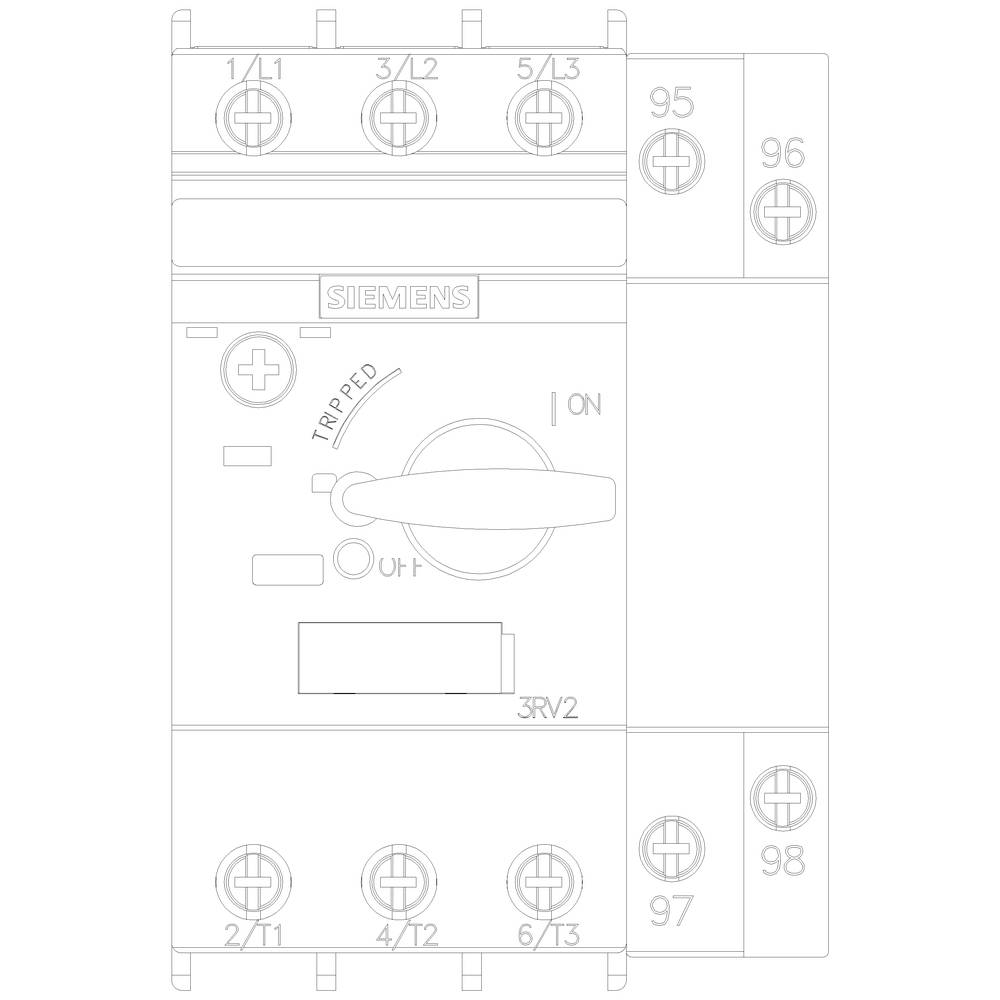

Contactor, shown with circuit symbol and connections. Labelled with 'Siemens'. Control knob indicates positions 'Tripped', 'Off', 'On'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.5 A

Connection

Screws

Packaging type

Piece

Type

3RV2111-0FA10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 0.5 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2111-0FA10

Type: S00

Amperage adjustment range (min.): 0.35 A

Amperage adjustment range (max.): 0.5 A

Adjustment range (amperage): 0.35 - 0.5 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 65 mm

Height: 97 mm

Dim: (W x H x D) 65 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 65

: 97 mm

: 97 mm

: 0.12 kW

: TRUE

: 0.5 A

: FALSE

: 3

: 690-690 V

: 0.35-0.5 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
