Name: Siemens 3RV2111-1GA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 4.5 - 6.3 A Switching voltage (max.): 690 V A
Brand: Siemens
SKU: 1746923
Availability: BackOrder

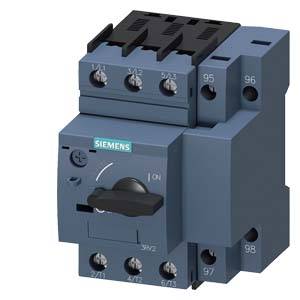

A Siemens contactor for controlling electrical circuits with a blue housing colour and multiple connection terminals.

Electrical cabinet with open doors reveals complex electronics. To the right, a closed room with damp windows, with machinery visible behind them.

'Diagram for the Installation of Circuit Breaker Accessories. Shows components with numbers and arrows indicating part connections.'

'Circuit diagram shows electrical connections and components with markings for L1, L2, L3, T1, T2, T3 and TEST.'

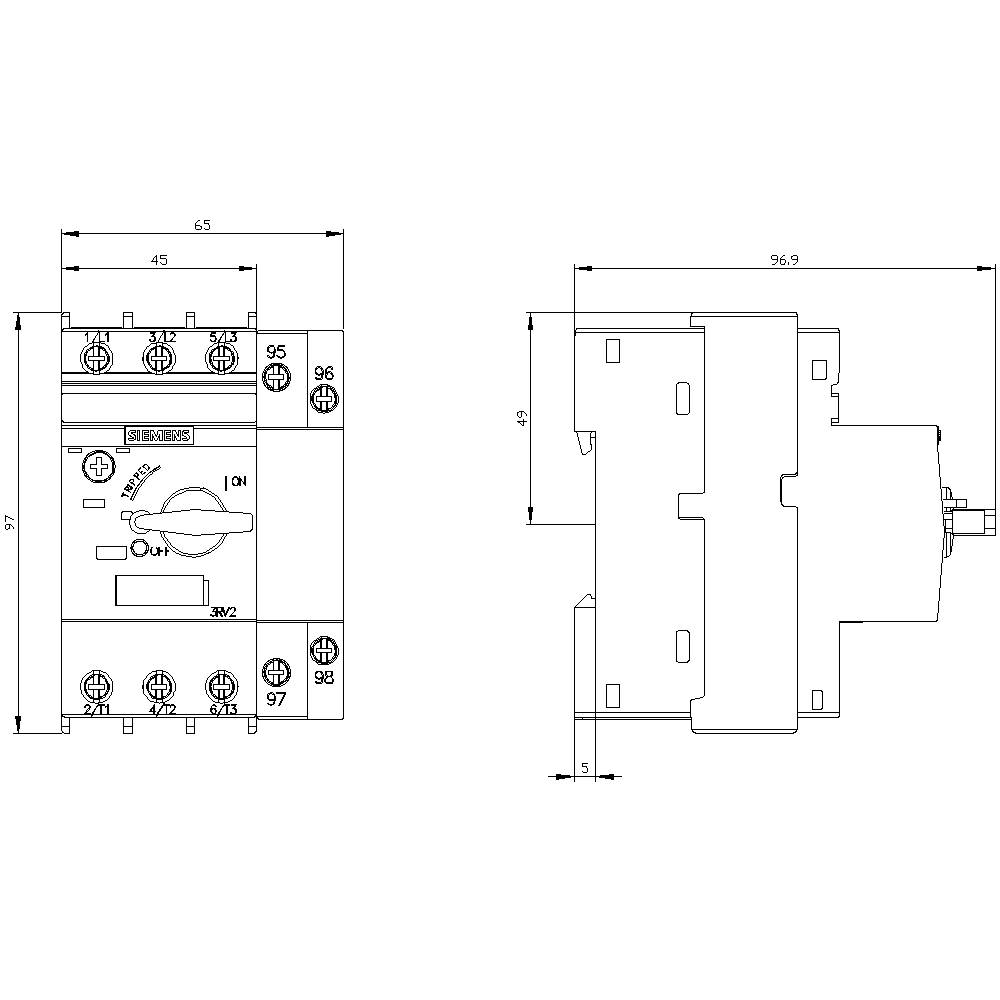

Electronic drawing of an electrical switch with dimensions in millimetres; shows front and side view.

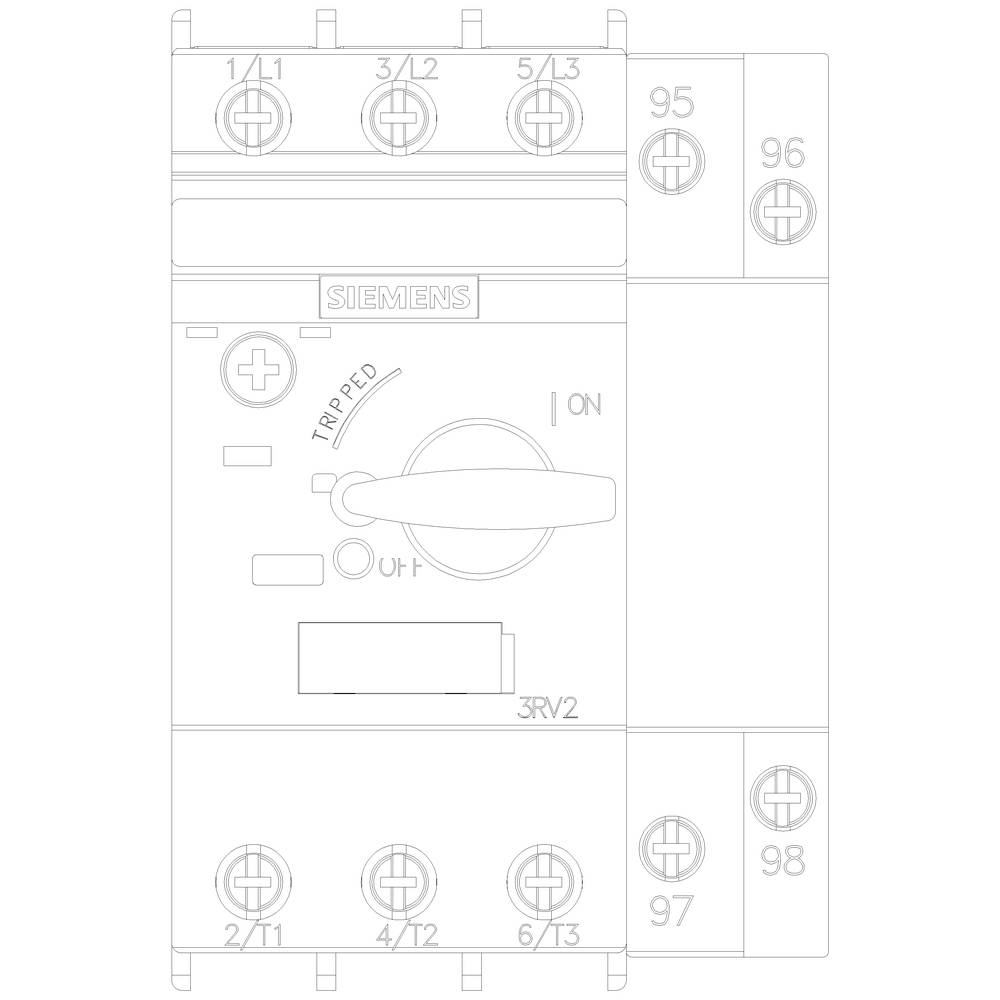

A switching device with the inscription 'SIEMENS', a rotary switch with positions 'ON', 'OFF', 'TRIPPED' and several connection terminals.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

6.3 A

Connection

Screws

Packaging type

Piece

Type

3RV2111-1GA10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Continuous current: 6.3 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2111-1GA10

Type: S00

Amperage adjustment range (min.): 4.5 A

Amperage adjustment range (max.): 6.3 A

Adjustment range (amperage): 4.5 - 6.3 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 65 mm

Height: 97 mm

Dim: (W x H x D) 65 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 65

: 97 mm

: 97 mm

: 2.2 kW

: TRUE

: 6.3 A

: FALSE

: 3

: 690-690 V

: 4.5-6.3 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 1.5 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: yes
