Name: Siemens 3RV2711-0KD10 Circuit breaker 1 pc(s) Adjustment range (amperage): 1.25 A (max) Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1745820
Availability: BackOrder

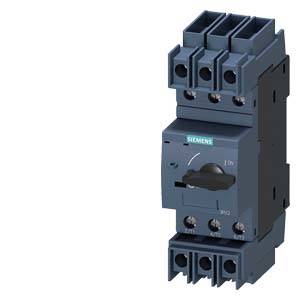

A three-pole Siemens performance switch, primarily made of black plastic, with a lever for control and various connections at the top and bottom.

Industrial plant behind a wet window, showing control cabinet and production area. Raindrops on the glass enhance the sense of separation.

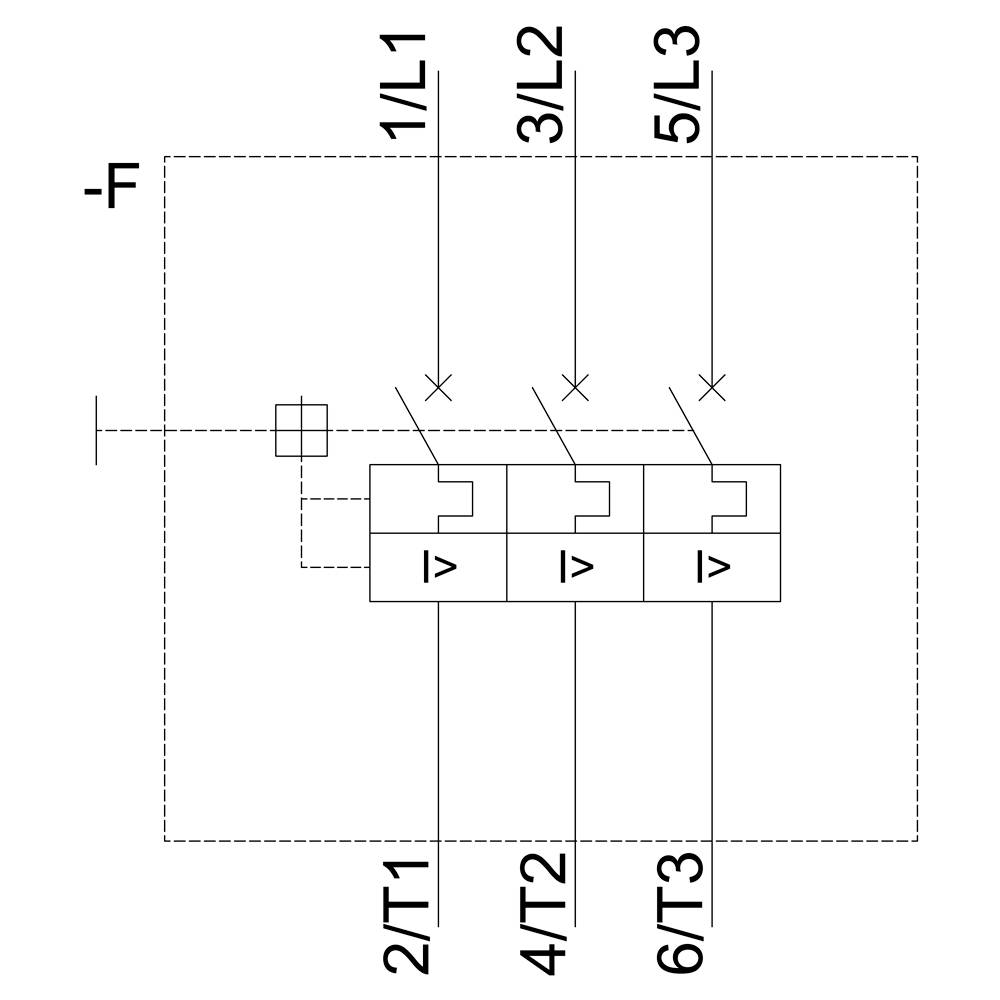

The circuit diagram shows three power switches connected in series, linking phases L1, L2 and L3 with outputs T1, T2 and T3.

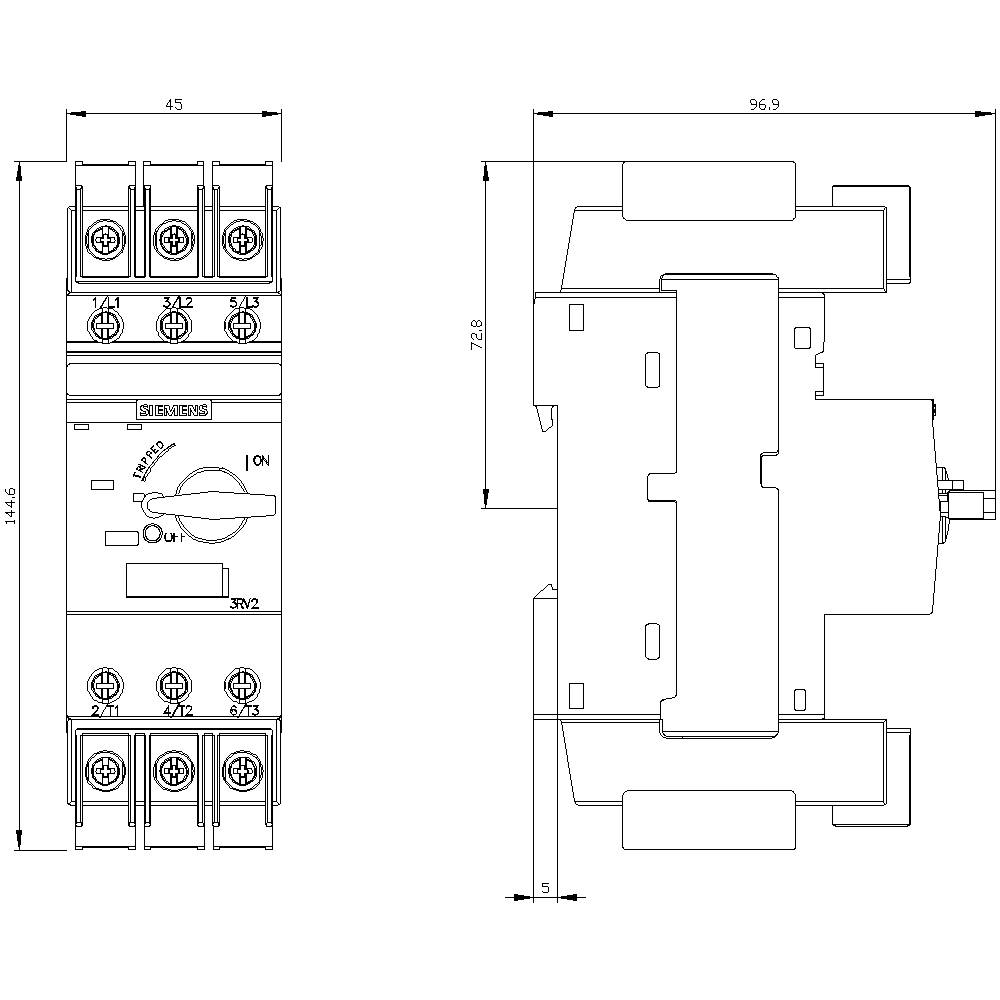

Technical drawing of an electrical switch. It shows front and side views with technical specifications and dimensions.

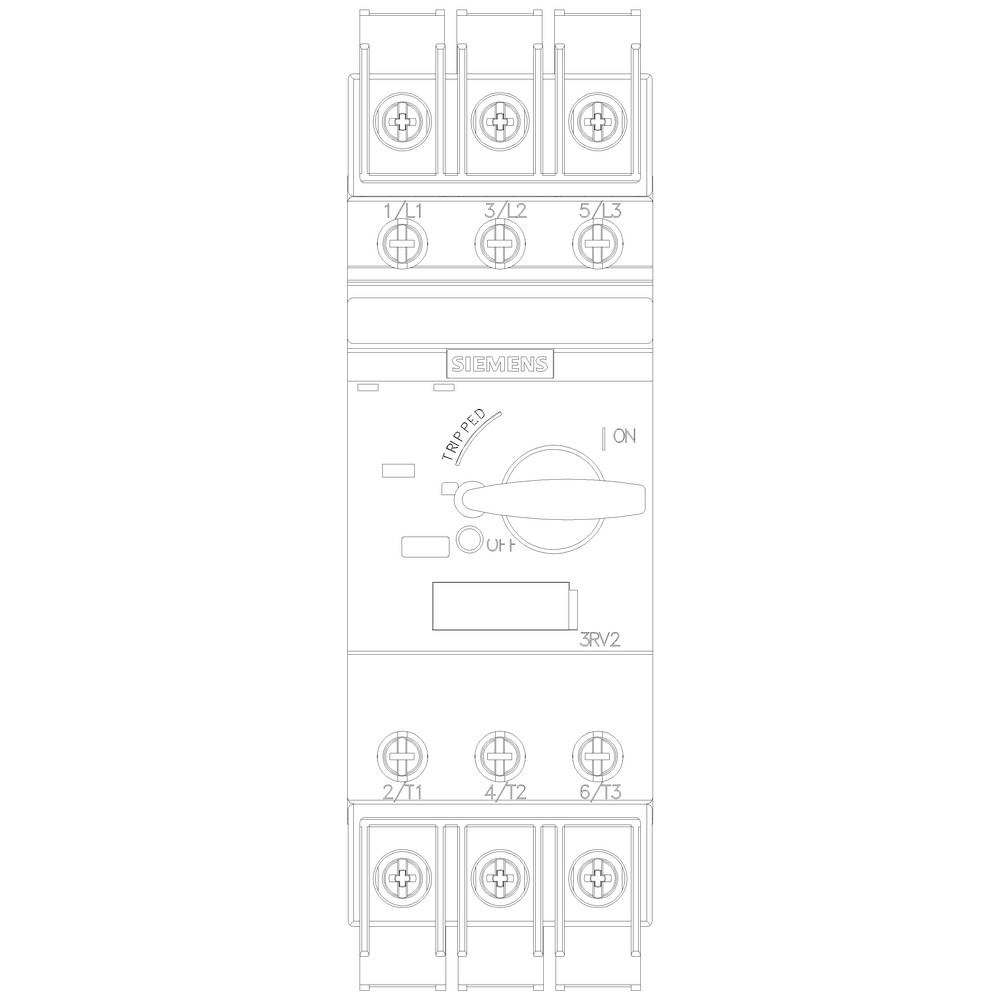

An electrical protective switch with a rotary switch in the centre and multiple terminal connections on the top and bottom surfaces.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

1.25 A

Connection

Screws

Packaging type

Piece

Type

3RV2711-0KD10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: for system protection
Weight: 0,507 kg
Design of the thread of the connection screw: M4
Mechanical life: 100000
Electrical life: 100000
Power loss: 5 W
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2711-0KD10

Type: S00

Amperage adjustment range (max.): 1.25 A

Adjustment range (amperage): 1.25 A (max)

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 144 mm

Dim: (W x H x D) 45 x 144 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 1.25 A

: 3

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes
