Name: Siemens 3RV2711-1ED10 Circuit breaker 1 pc(s) Adjustment range (amperage): 4 A (max) Switching voltage (max.): 690 V AC
Brand: Siemens
SKU: 1745823
Availability: BackOrder

A blue Siemens circuit breaker with five terminal connections.

Industrial facility with an open electrical cabinet on the left and a production machine in the background, viewed through a rain-wet window.

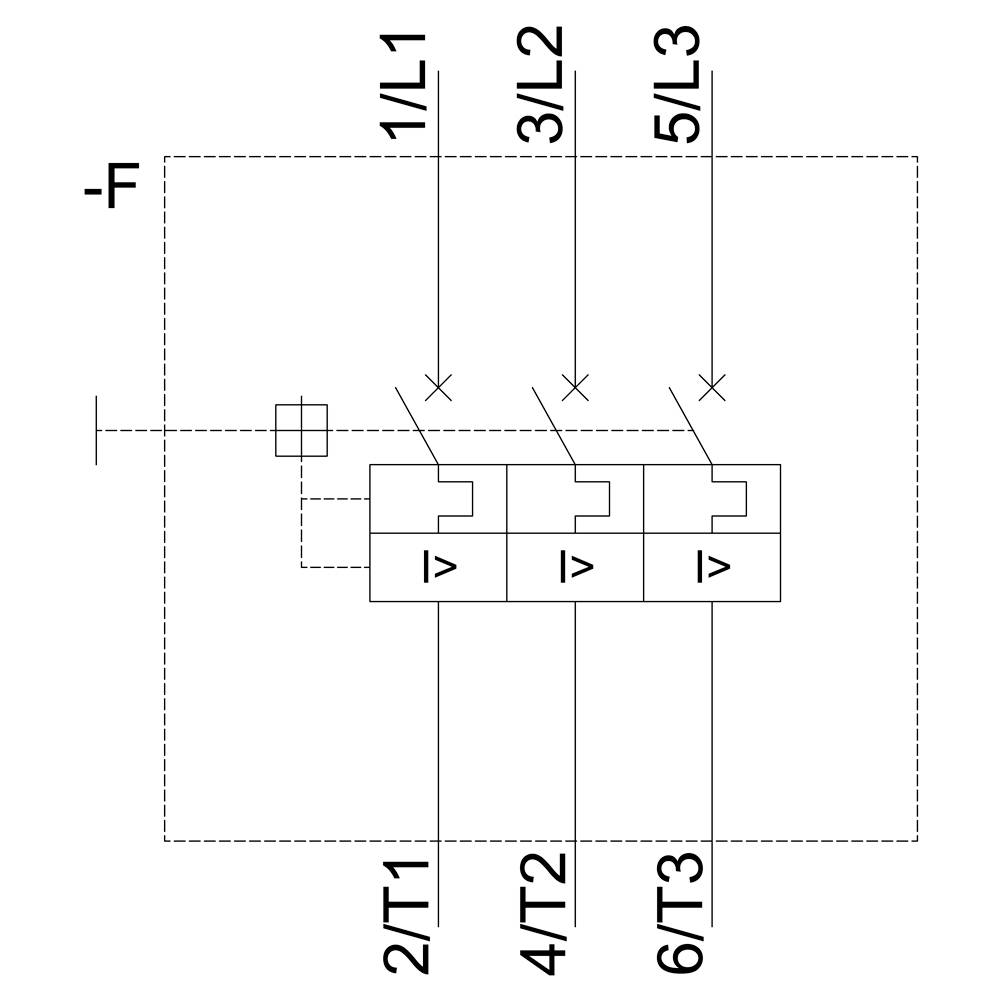

Circuit diagram of a three-phase circuit breaker with three switches, labelled '1/L1', '3/L2', '5/L3', '2/T1', '4/T2', '6/T3'.

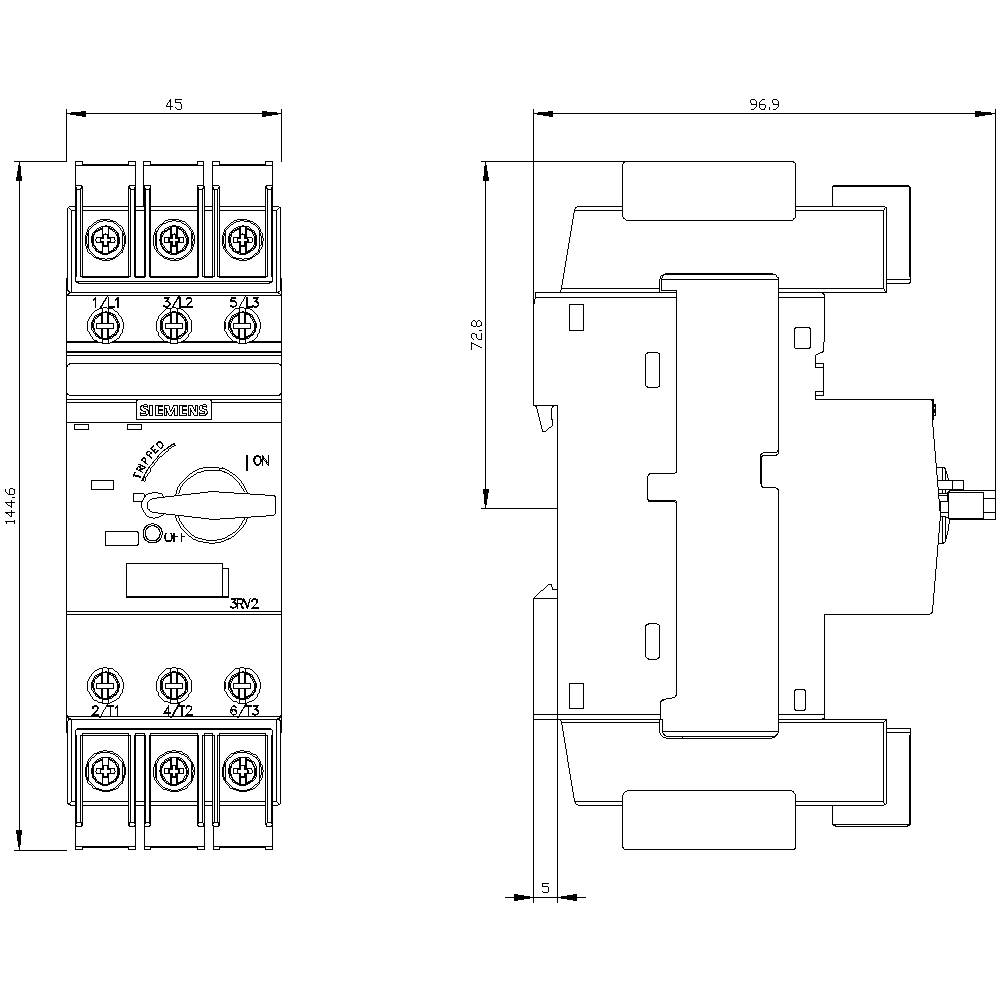

Schematic drawing of an electrical switch with dimensions. Left: Front view showing connections and a switch. Right: Side view illustrating depth and mounting.

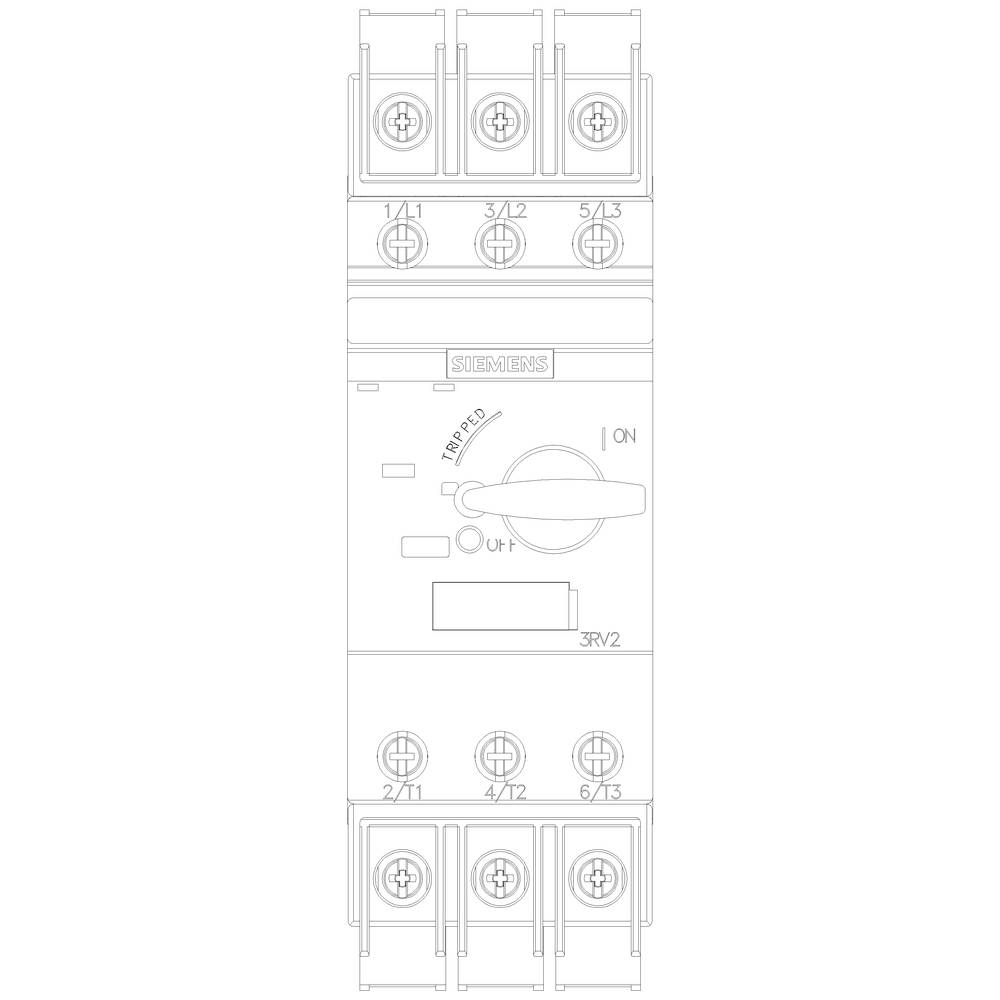

A circuit diagram of a contactor or power switch with a rotary switch indicator in the centre, surrounded by terminal blocks at both ends.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

4 A

Connection

Screws

Packaging type

Piece

Type

3RV2711-1ED10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

4NO CONTACTOR, AC1:140A, 175-280VAC/DC

Our service for you

Technical specifications

Design: for system protection
Weight: 0,508 kg
Design of the thread of the connection screw: M4
Mechanical life: 100000
Electrical life: 100000
Power loss: 6 W
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2711-1ED10

Type: S00

Amperage adjustment range (max.): 4 A

Adjustment range (amperage): 4 A (max)

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 144 mm

Dim: (W x H x D) 45 x 144 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 4 A

: 3

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: not relevant
