Name: Siemens 3RV2711-1KD10 Circuit breaker 1 pc(s) Adjustment range (amperage): 12.5 A (max) Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1703884
Availability: BackOrder

An electrical power switch in grey with multiple connections. It has a switch in the centre with labels 'ON' and 'OFF'.

Interior view of an industrial production facility with open electrical cabinets and machinery, visible through a window covered in water droplets.

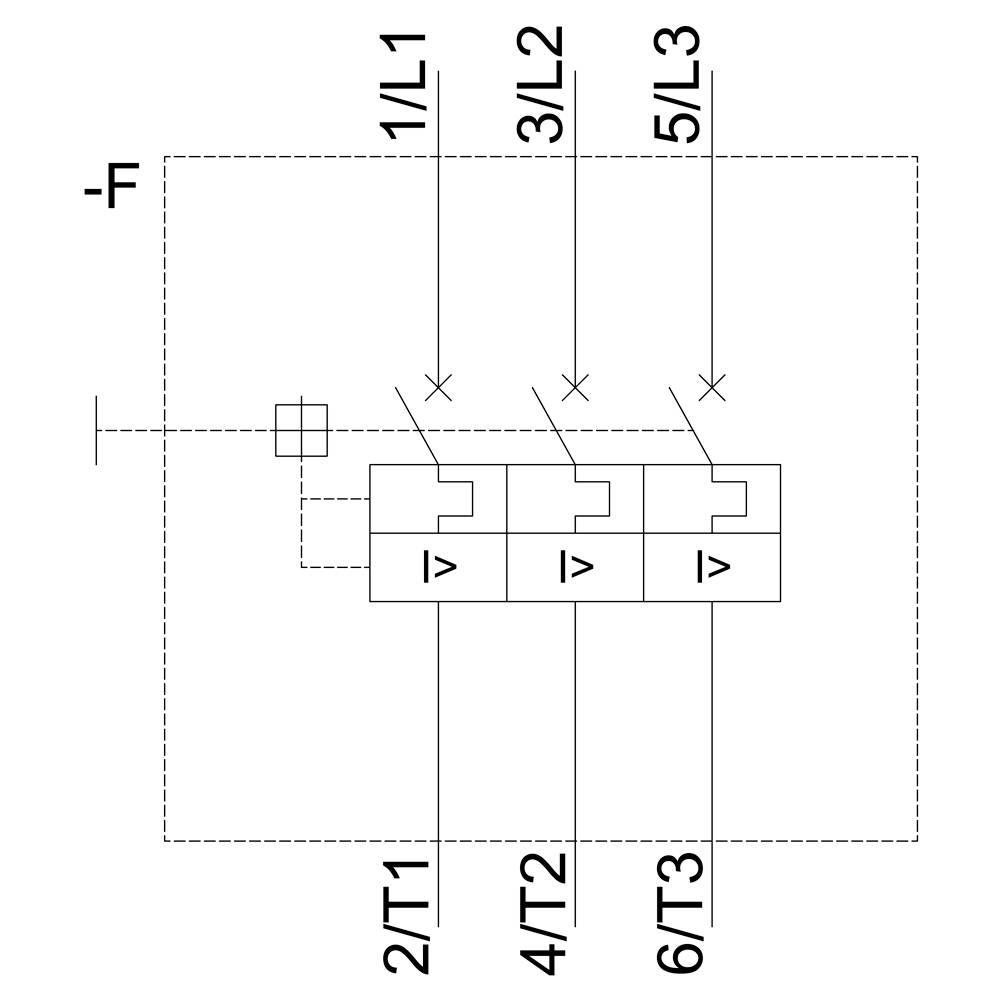

Circuit diagram of a three-phase AC contactor with six terminals, labelled as L1, L2, L3, T1, T2 and T3. Main current path shown.

'Drawing of an electrical switch with marked dimensions. Left: Front view with four terminals. Right: Side view.'

A circuit diagram of a motor protection switch, showing the wiring terminals for phases and control.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

12.5 A

Connection

Screws

Packaging type

Piece

Type

3RV2711-1KD10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: for system protection
Weight: 0,508 kg
Design of the thread of the connection screw: M4
Mechanical life: 100000
Electrical life: 100000
Power loss: 7 W
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2711-1KD10

Type: S00

Amperage adjustment range (max.): 12.5 A

Adjustment range (amperage): 12.5 A (max)

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 144 mm

Dim: (W x H x D) 45 x 144 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 12.5 A

: 3

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Screw connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes
