Buy Siemens 3UF71011AA000 3UF7101-1AA00-0 PLC current detector 690 V AC

A black electrical module with connections and side labelling. It could be part of a larger electrical system.

Image similar

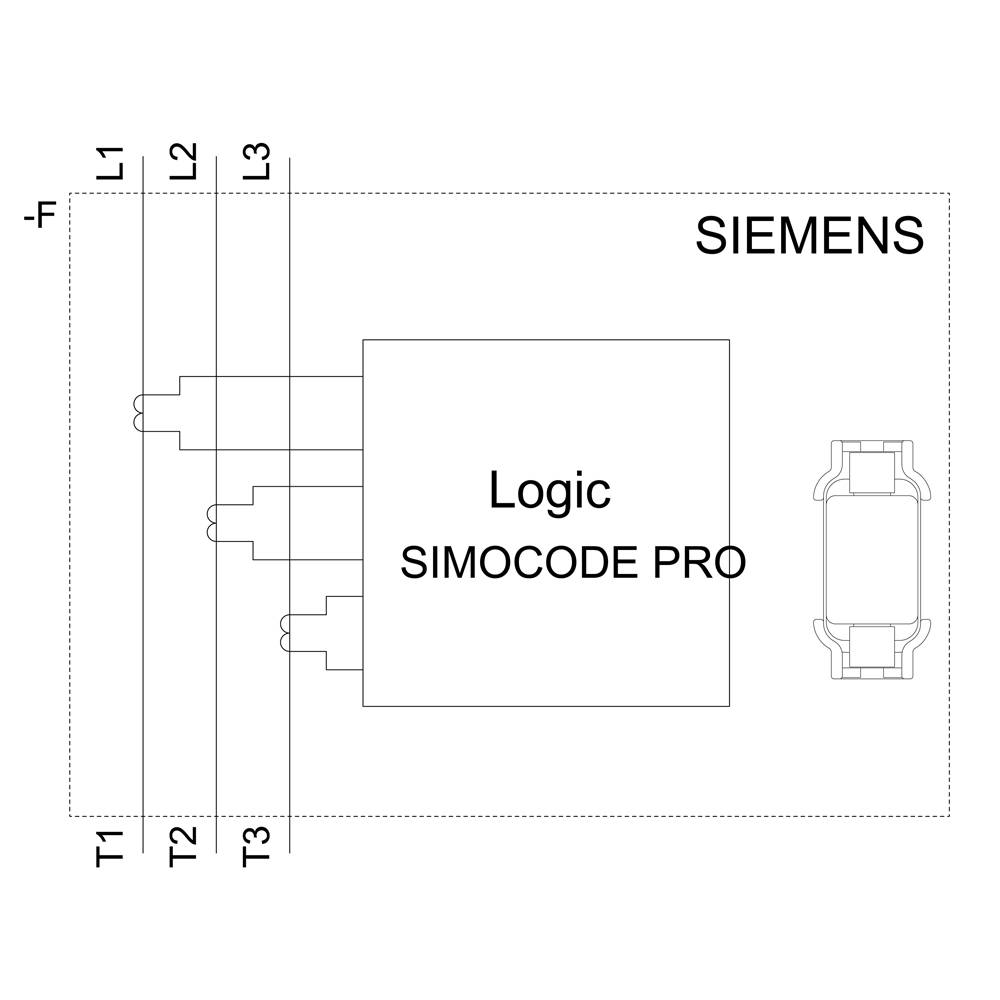

'Circuit diagram of a motor with SIMOCODE PRO. On the left, L1, L2, L3 are shown, next to which is the SIMOCODE PRO logic circuit from Siemens.'

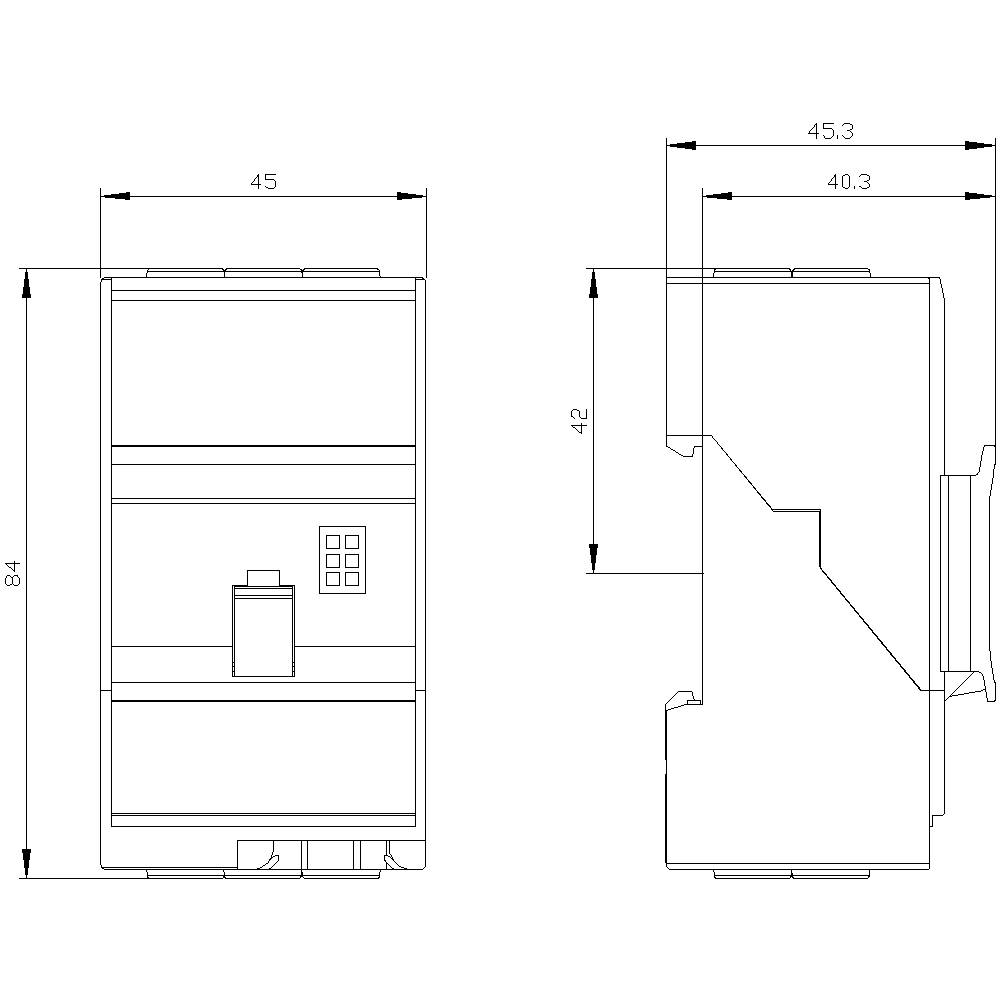

Technical drawing of a rectangular electronic device with dimensions: width 45 mm, height 84 mm. Side view shows depth of 42 mm. Connectivity and control elements visible.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 6000 V

Product type: PLC current detector

Type: 3UF7101-1AA00-0

Manufacturer part #: 3UF71011AA000

Type: Through-hole converter

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 84 mm

Length: 45 mm

Width: 45 mm

: IP20

Dim: (L x W x H) 45 x 45 x 84 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP20

: 0

: FALSE

: FALSE

: TRUE

: Through-feed technique

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1703020 Siemens 3UF71011AA000 3UF7101-1AA00-0 PLC current detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1703020 Siemens 3UF71011AA000 3UF7101-1AA00-0 PLC current detector 690 V AC

Description

Connection to the expansion module 3UF51 or to operator panel 3UF52 9-pole, 0.5 m long Shielded connectors 45 degrees angled
