Buy Siemens 3UF71031AA000 3UF7103-1AA00-0 PLC current detector 690 V AC

A Siemens electromagnetic contactor, black and grey, with connections on top. Model number '3RT2017'. Used in electrical circuits.

Image similar

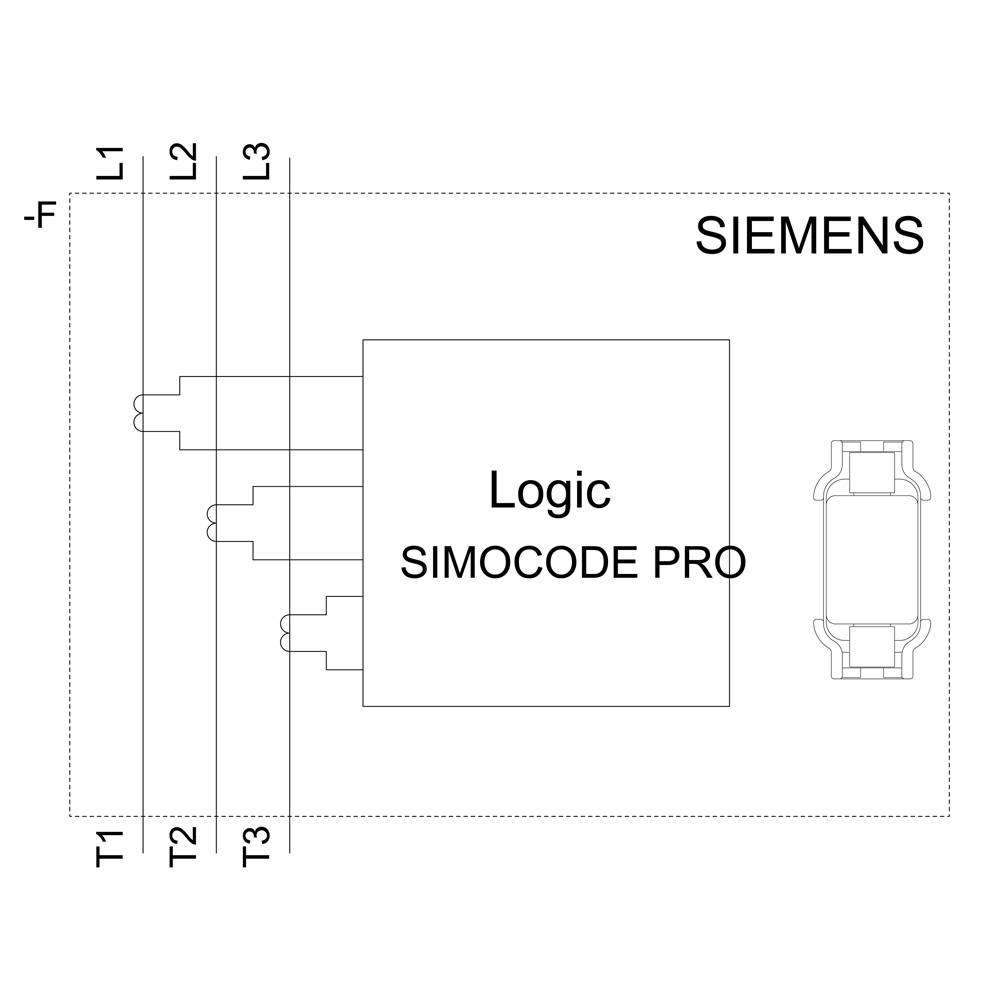

'Circuit diagram shows a SIMOCODE PRO logic module by Siemens with labelling of connections T1, T2, T3, connected to L1, L2, L3'.

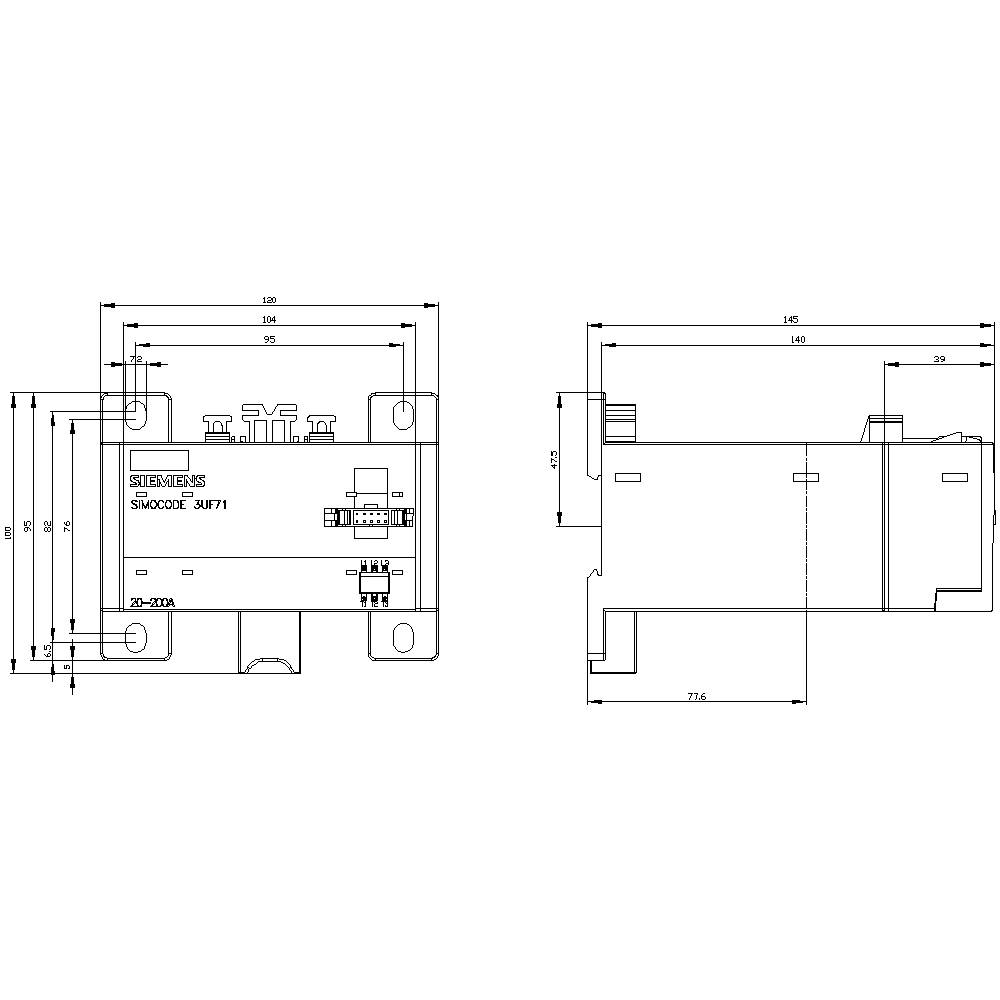

Technical drawing of a switching device with dimensions in millimetres. Two views: front view showing switch and connections; side view illustrating depth.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 8000 V

Product type: PLC current detector

Type: 3UF7103-1AA00-0

Manufacturer part #: 3UF71031AA000

Type: Through-hole converter

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 95 mm

Length: 145 mm

Width: 120 mm

: IP20

Dim: (L x W x H) 145 x 120 x 95 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP20

: 0

: FALSE

: FALSE

: TRUE

: Through-feed technique

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1748014 Siemens 3UF71031AA000 3UF7103-1AA00-0 PLC current detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1748014 Siemens 3UF71031AA000 3UF7103-1AA00-0 PLC current detector 690 V AC

Description

Plug-in base soldering pin connection for printed circuit boards for 3TF2, 3TH2, 3TK2, 45 mm wide customized
