Buy Siemens 3UF71031BA000 3UF7103-1BA00-0 PLC current detector 690 V AC

A three-pole contactor from Siemens for electrical circuits, suitable for current ratings between 20 and 200 amperes.

Image similar

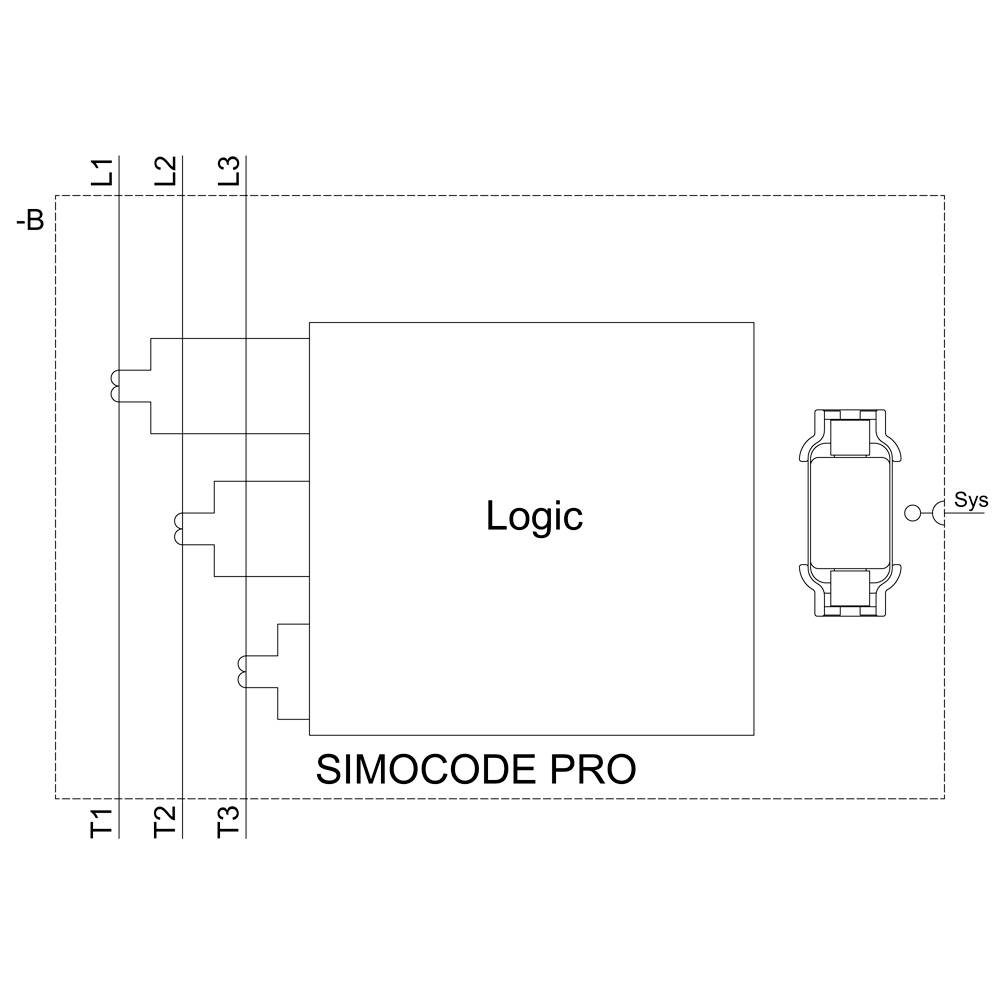

Diagram of a SIMOCODE PRO with logic unit, connection lines L1, L2, L3 and T1, T2, T3. Shows wiring examples for logic control.

Technical drawing of a Siemens Sitrans switch, showing detailed dimensions and connections in front and side views.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 8000 V
Design of the thread: M8x25

Product type: PLC current detector

Type: 3UF7103-1BA00-0

Manufacturer part #: 3UF71031BA000

Type: Rail connection

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 119 mm

Length: 145 mm

Width: 120 mm

: IP00

Dim: (L x W x H) 145 x 120 x 119 mm

Content: 1 pc(s)

Fitting type (details): Direct mounting/stand-alone installation

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP00

: 0

: FALSE

: FALSE

: TRUE

: Rail connection

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740708 Siemens 3UF71031BA000 3UF7103-1BA00-0 PLC current detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1740708 Siemens 3UF71031BA000 3UF7103-1BA00-0 PLC current detector 690 V AC

Description

Decoupling module for installation upstream of the current/voltage measuring module at the system interface for application in ungrounded supply systems
