Buy Siemens 3UF71131BA010 3UF7113-1BA01-0 PLC current/voltage detector 690 V AC

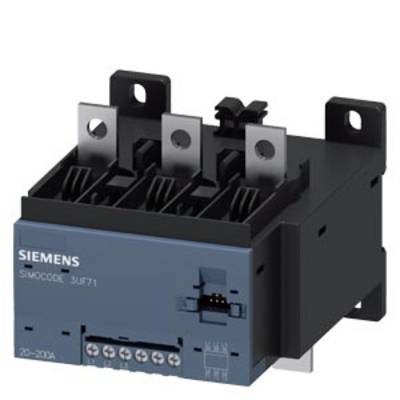

A Siemens electrical switching device, model SIMOCODE 3UF71, with multiple screw terminals, black top surface and blue front panel.

Image similar

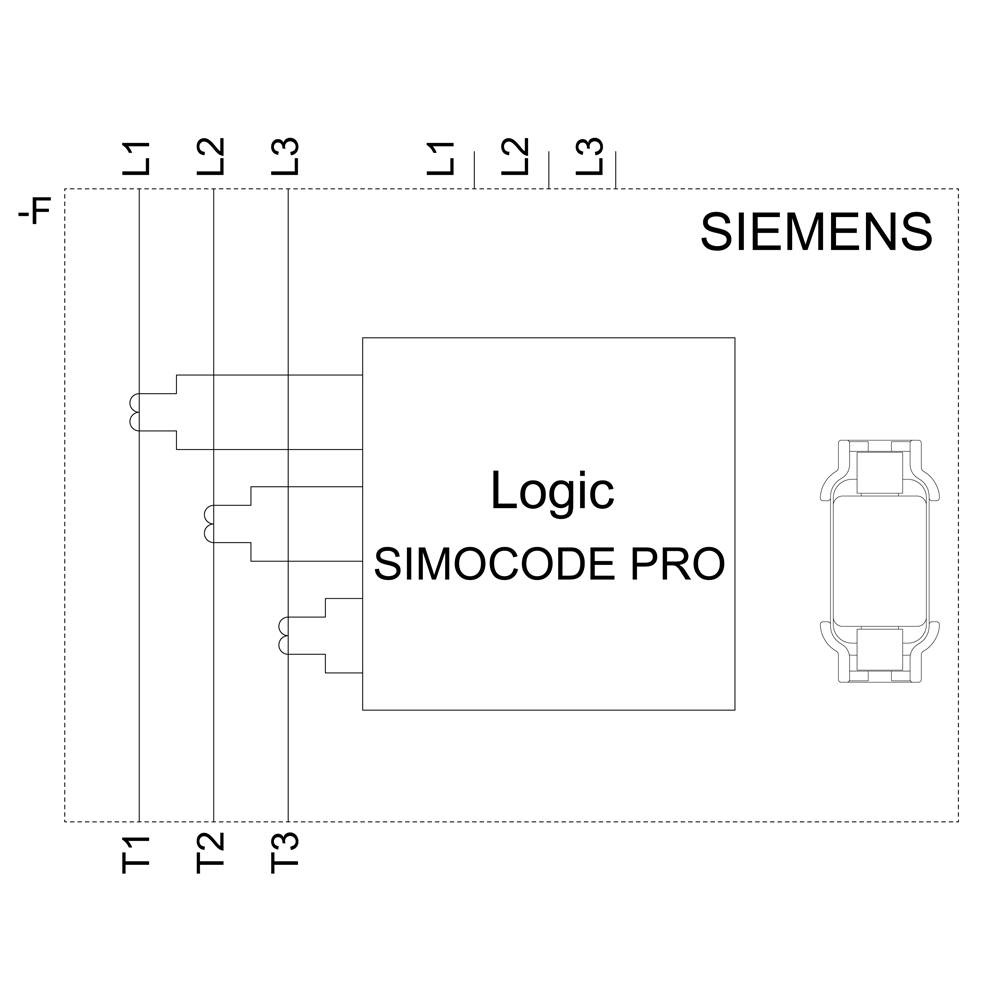

Circuit diagram of a control unit 'Logic SIMOCODE PRO' by Siemens, showing three inputs L1, L2, L3 and outputs T1, T2, T3.

'2-Wire Bus Transceiver', technical drawing to scale with side and front views, including dimensional specifications for installation and connections.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 399.16 / piece)

€ 399.16

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 6000 V
Design of the thread: M8x25
Design of the Electrical Connection: screw terminals.

Product type: PLC current/voltage detector

Type: 3UF7113-1BA01-0

Manufacturer part #: 3UF71131BA010

Type: Rail connection

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 119 mm

Length: 145 mm

Width: 120 mm

: IP00

Dim: (L x W x H) 145 x 120 x 119 mm

Content: 1 pc(s)

Fitting type (details): Direct mounting/stand-alone installation

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP00

: 0

: Screw connection

: FALSE

: TRUE

: TRUE

: Rail connection

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740715 Siemens 3UF71131BA010 3UF7113-1BA01-0 PLC current/voltage detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1740715 Siemens 3UF71131BA010 3UF7113-1BA01-0 PLC current/voltage detector 690 V AC

Description

Main contact elements for 3TK50 3 movable and 6 fixed contact pieces
