Buy Siemens 3UF71141BA010 3UF7114-1BA01-0 PLC current/voltage detector 690 V AC

A Siemens electrical switching device, model '3UF71', with three large terminal clamps on top and connections on the front panel.

Image similar

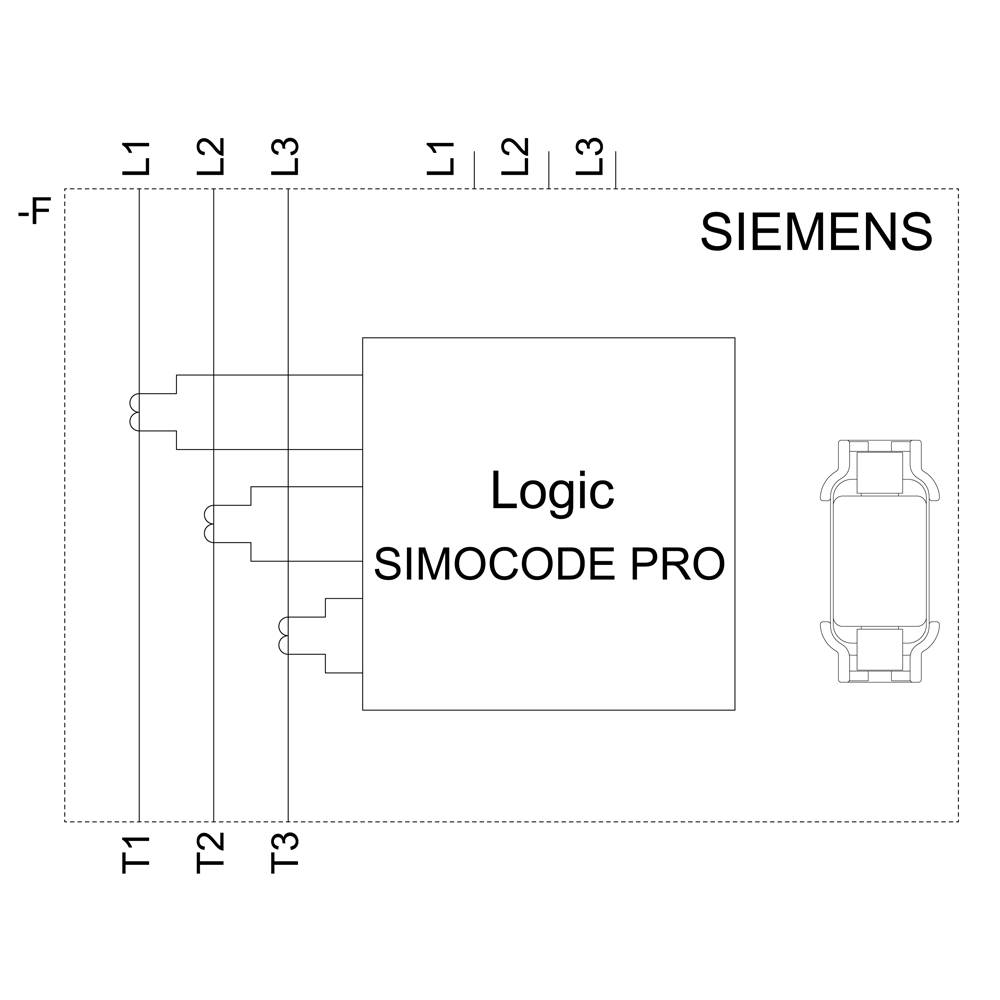

Circuit diagram shows a Siemens SIMOCODE PRO with connections to T1, T2, and T3, as well as inputs L1, L2, L3 and F.

Technical drawing of a kitchen unit and sideboard. Measurements given in millimetres. Shows built-in sink, cooker, cupboards and layout.

1/3

Image similar

Datasheet (PDF)

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 441.18 / piece)

€ 441.18

plus VAT.

Report legal concerns

Technical specifications

Operating frequency: 50/60 Hz
Pins for main circuit: 3
Surge voltage resistance: 6000 V
Design of the thread: M10 x 30
Design of the Electrical Connection: screw terminals.

Product type: PLC current/voltage detector

Type: 3UF7114-1BA01-0

Manufacturer part #: 3UF71141BA010

Type: Rail connection

Min. operating voltage: 110 V AC

Operating voltage: 110 - 690 V AC

Max. operating voltage: 690 V AC

Operating voltage: 690 V AC

Height: 147 mm

Length: 149 mm

Width: 145 mm

: IP00

Dim: (L x W x H) 149 x 145 x 147 mm

Content: 1 pc(s)

Fitting type (details): Direct mounting/stand-alone installation

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: IP00

: 0

: Screw connection

: FALSE

: TRUE

: TRUE

: Rail connection

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740717 Siemens 3UF71141BA010 3UF7114-1BA01-0 PLC current/voltage detector 690 V AC

User & Safety Instructions

User & Safety Instructions 1740717 Siemens 3UF71141BA010 3UF7114-1BA01-0 PLC current/voltage detector 690 V AC

Description

Magnet coil for contactors 3TF50/51 and 3TK50 230 V AC 60 Hz/192 V AC 50 Hz
