Name: Siemens 3VA6170-1MS31-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 70 A (max) Switching voltage (max.): 600
Brand: Siemens
SKU: 1750567
Availability: BackOrder

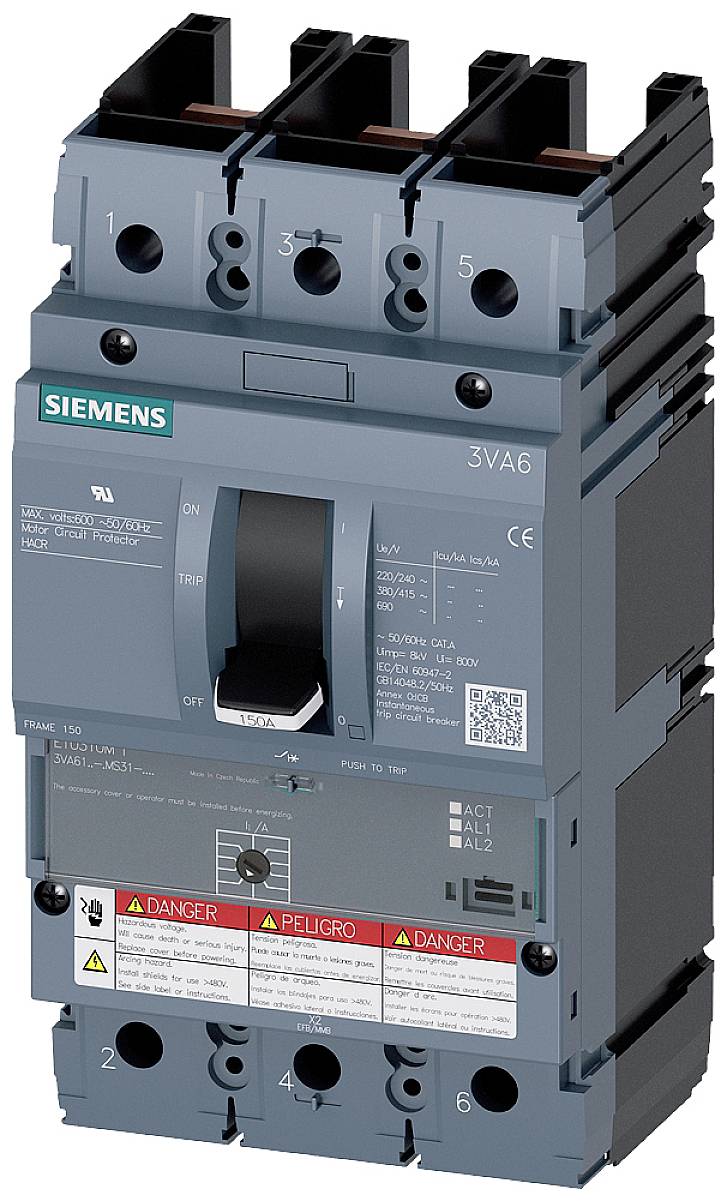

'Siemens 3VA6' power circuit breaker with protective and switching functions, grey, detailed labelling, three-phase, for industrial applications.

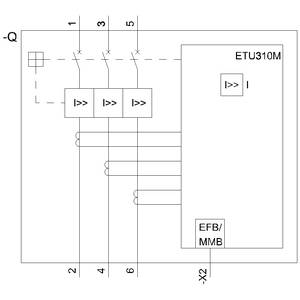

Diagram of an electrical circuit with an ETU310M protective switch and three line protection relays, numbered 1 to 6.

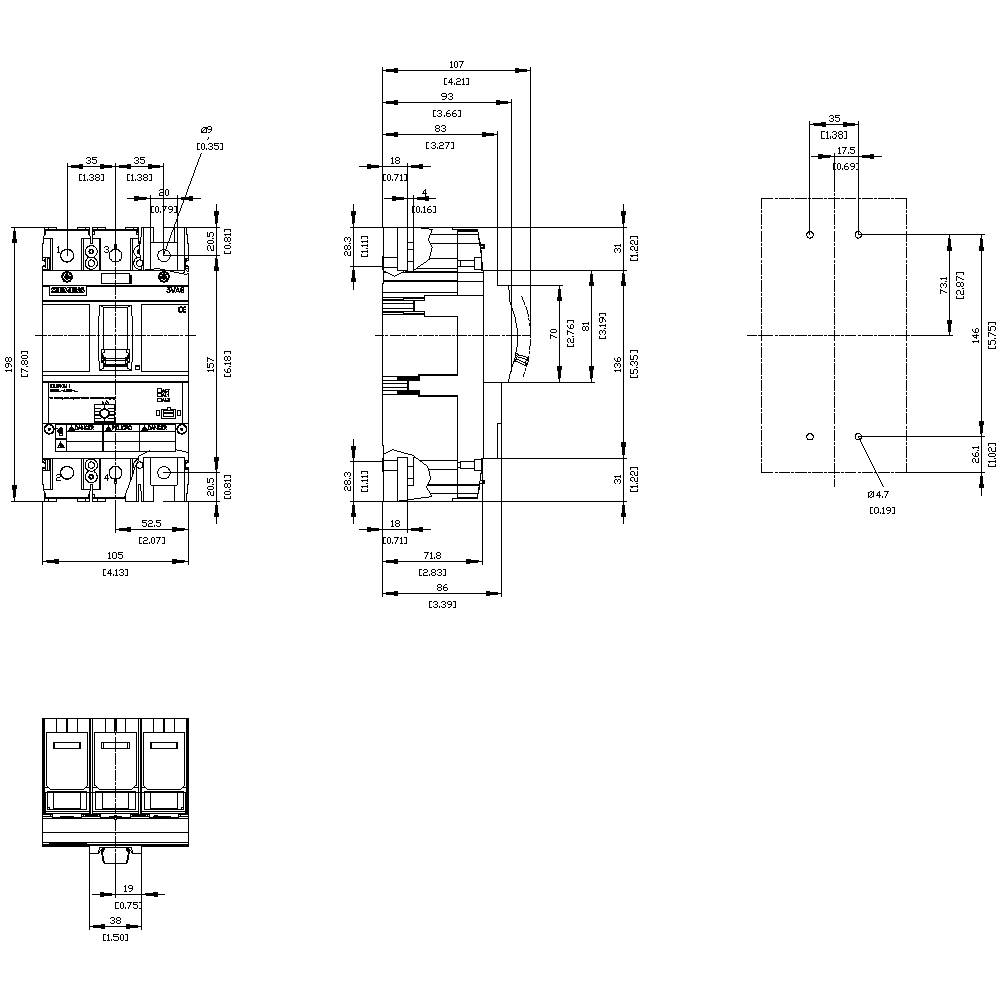

Technical drawing of a three-pole circuit breaker with front and side views, dimensions in mm.

1/3

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

70 A

Type

3VA6170-1MS31-0AA0

Adjustment range (amperage)

70 A (max)

No. of pins

3-pin

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 599.00 / piece)

€ 599.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: starter protection
Power loss: 2.47 W
Weight: 2.5 kg
Mechanical life: 20000
Electrical life: 9000
Isolation voltage: 600 V
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3VA6170-1MS31-0AA0

Amperage adjustment range (max.): 70 A

Adjustment range (amperage): 70 A (max)

No. of pins: 3-pin

Switching voltage (max.): 600 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

OCR type: ETU310M

: IP40

Depth: 86 mm

Width: 105 mm

Height: 198 mm

Dim: (W x H x D) 105 x 198 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 70 A

: 3

: 0

: 7.4 W

: IP40

: Other

: FALSE

: Other

: Rocker lever

: 110 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
