Siemens 5SJ41188HG42 5SJ4118-8HG42 Circuit breaker 15 A 230 V, 400 V
Product type
Circuit breaker
Number of pins
1
Release characteristics
D
Nominal current - rounded value
15 A
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 71.99 / piece)
€ 71.99
incl. VAT
14-day return policy included
Technical specifications
- IP20, with the connected conductors, IP40 in the grip area
- Product type
Circuit breaker
- Number of pins
1
- Release characteristics
D
- RoHS-compliant
Yes
- Nominal current - rounded value
15 A
- Nominal current
15 A
- Factory colour
Grey

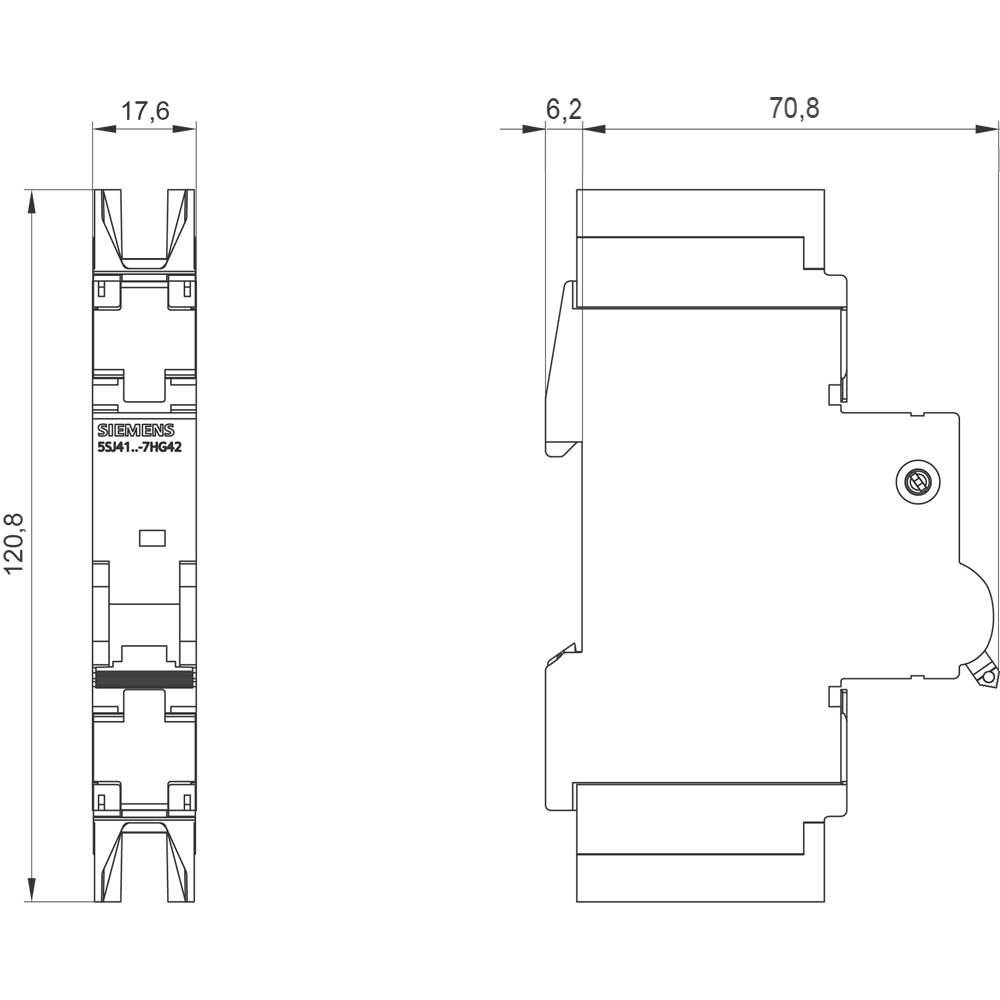

- Dim
(W x H x D) 18 x 121 x 76 mm
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
230 V
400 V
- Compatible with (details)
SENTRON
- Width
18 mm
- Height
121 mm
- Depth
76 mm
AC/DC
70 mm
15 A
400 V
50-60 MHz
D
440 V
3
3
1
IP20
1
FALSE
TRUE
1
10 kA
10 kA
15 kA
15 kA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1705632 Siemens 5SJ41188HG42 5SJ4118-8HG42 Circuit breaker 15 A 230 V, 400 V
Datasheet 1705632 Siemens 5SJ41188HG42 5SJ4118-8HG42 Circuit breaker 15 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1705632 Siemens 5SJ41188HG42 5SJ4118-8HG42 Circuit breaker 15 A 230 V, 400 V
Description
ALPHA 1250, Floor-mounted cabinet, with open side wall, IP55, Protection class 1, H: 1950 mm, W: 300 mm, T: 400 mm, RAL 7035
