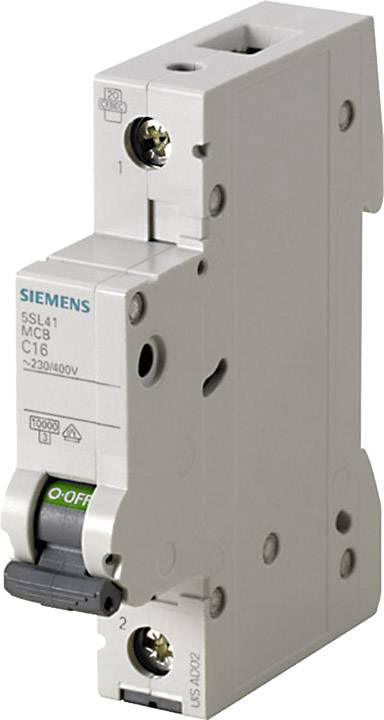

Siemens 5SL41036 5SL4103-6 Circuit breaker 1-pin 3 A 230 V, 400 V
EAN:
Part number:
Item no:
Nominal current - rounded value
3 A
Number of pins
1
Release characteristics
B
Product type
Circuit breaker
RoHS-compliant
Yes
Datasheet (PDF)
Technical specifications
- IP20, with the connected conductors
- RoHS-compliant
Yes
- Nominal current - rounded value
3 A
- Nominal current
3 A
- Factory colour
Grey

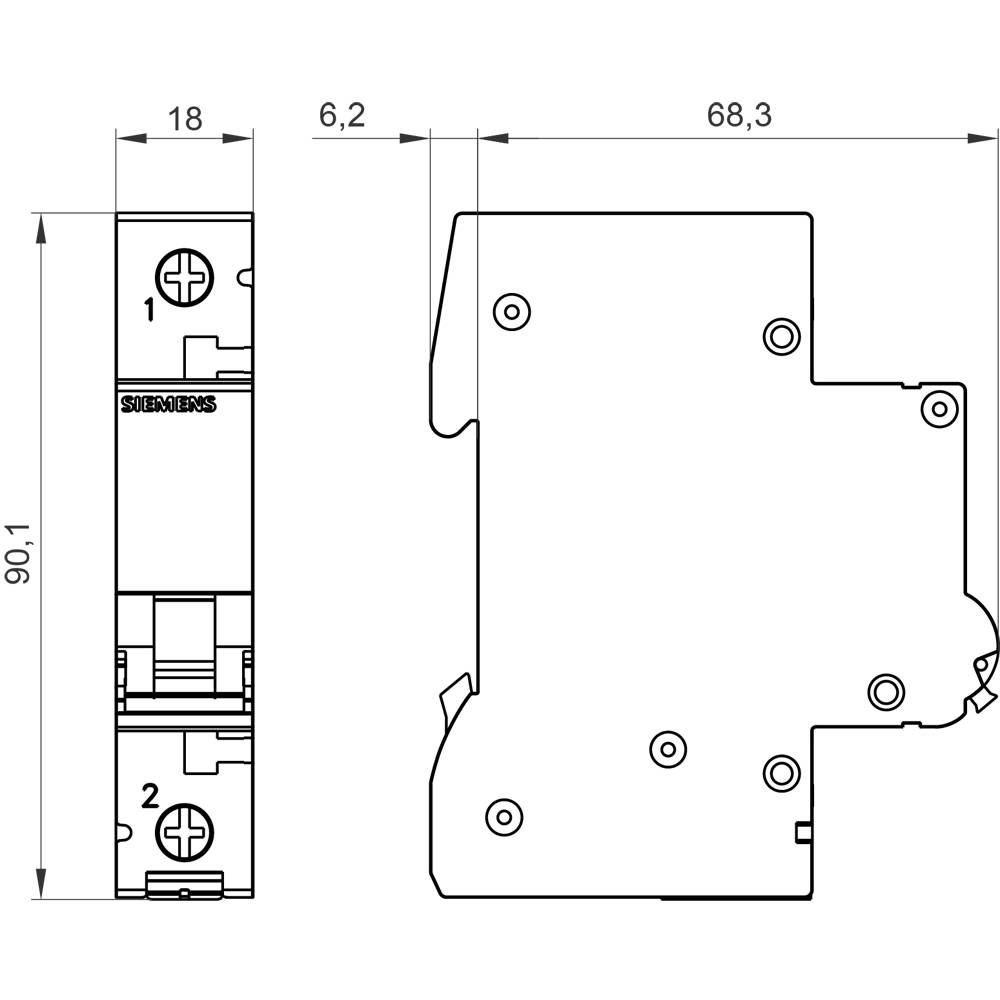

- Dim
(W x H x D) 18 x 90 x 76 mm
- Content
1 pc(s)
- Depth
76 mm
- Height
90 mm
- Width
18 mm
- Compatible with (details)
SENTRON
- Nominal voltage
230 V
400 V
- Number of pins
1
- Release characteristics
B
- Operating voltage
440 V
- Weight
0
AC
70 mm
3 A
400 V
50-60 MHz
B
3
3
2
1
IP20
1
FALSE
TRUE
1
10 kA
10 kA
10 kA
10 kA
- Product type
Circuit breaker
Documents & Downloads
Datasheet
Datasheet 1419054 Siemens 5SL41036 5SL4103-6 Circuit breaker 1-pin 3 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1419054 Siemens 5SL41036 5SL4103-6 Circuit breaker 1-pin 3 A 230 V, 400 V
Description
Circuit breaker switch 230/400V 10kA, 1-pin, B, 3A circuit breaker SENTRON 5SL for the safe short-circuit and overload protection for standard applications in residential and commercial buildings.Assembly and disassembly of the device without tools. Simple wiring of the infeed through the bus bar located at the rear.The 5SL miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.The extensive range of accessories, such as auxiliary switches, enables a wide range of functions.Simply safe with the protection devices from SENTRON.
