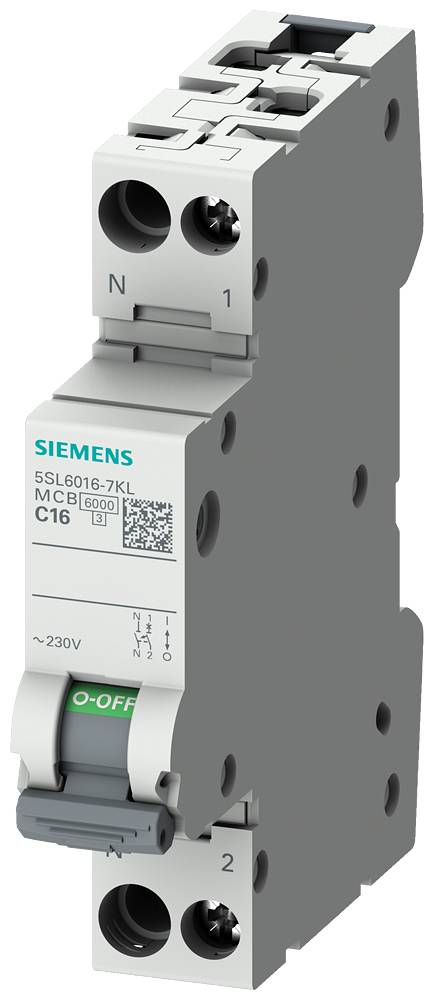

Image similar
Siemens 5SL60067KL 5SL6006-7KL Circuit breaker 6 A
Product type
Circuit breaker
Number of pins
2
Release characteristics
C
Nominal current - rounded value
6 A
Type
Circuit breaker compact
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of width-division units: 1Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2 NmTightening torque / for screw connection / maximum: 2.5 NmBase type: 5SL60KLMounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at AC 250 VInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 10000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity Current / according to EN 60898: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 1.4 W.Power loss/maximum 1.57 W.Pollution level: 2Supply voltage frequency 50 HzSupply voltage frequency / note: 50/60 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 16 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 10 mm²Cross-section/multi-wire connection: 0.75 mm² - 16 mm²
- Type
Circuit breaker compact
- Nominal voltage (details)
230 V AC
- Product type
Circuit breaker
- Number of pins
2
- Operating class
3
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Dim
(W x H x D) 18 x 90 x 76 mm
- Content
1 pc(s)
- Operating voltage
250 V AC
- Width
18 mm
- Height
90 mm
- Depth
76 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2757592 Siemens 5SL60067KL 5SL6006-7KL Circuit breaker 6 A
User & Safety Instructions
User & Safety Instructions 2757592 Siemens 5SL60067KL 5SL6006-7KL Circuit breaker 6 A
Description
LINE CIRCUIT BREAKER 230V 6KA, 1+N-POLE/1TE, N LEFT C6 CIRCUIT BREAKER SENTRON 5SL .The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, 1+N- and 3+N-pole versions.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
This text is machine translated.
This text is machine translated.
