Siemens 5SP32353 5SP3235-3 Main RCCB 35 A 400 V
Product type
Main RCCB
Number of pins
2
Release characteristics
E
Nominal current - rounded value
35 A
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 269.00 / piece)
€ 269.00
incl. VAT
14-day return policy included
Technical specifications
- IP40, with the connected conductors
- Product type
Main RCCB
- Number of pins
2
- Release characteristics
E
- RoHS-compliant
Yes
- Nominal current - rounded value
35 A
- Nominal current
35 A
- Factory colour
Grey

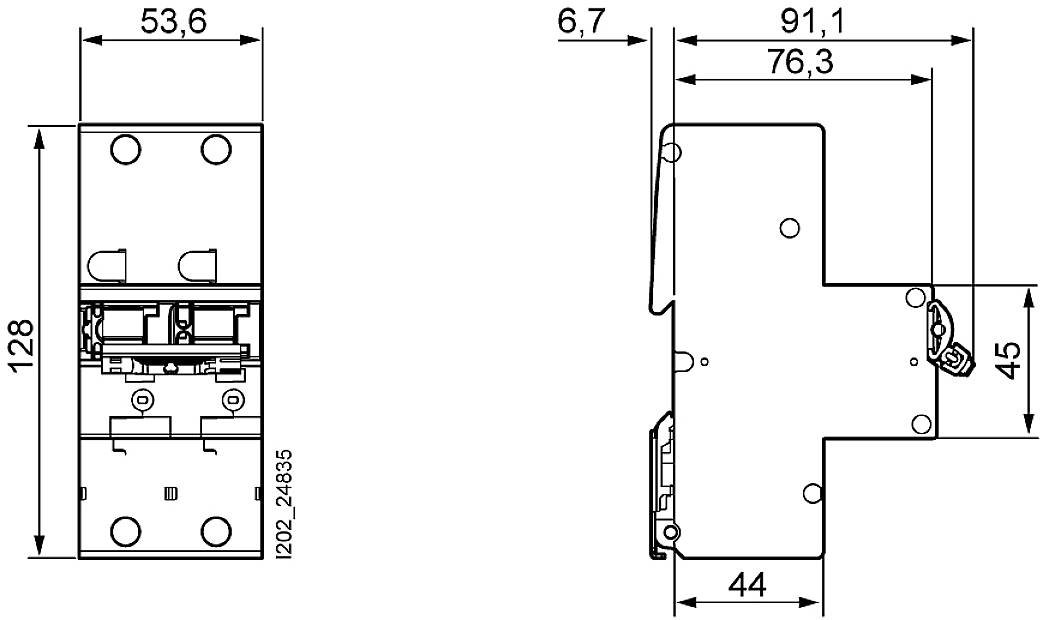

- Dim
(W x H x D) 53.6 x 128 x 76.3 mm
- Content
1 pc(s)
- Operating voltage
440 V
- Nominal voltage
400 V
- Compatible with (details)
SENTRON
- Width
53.6 mm
- Height
128 mm
- Depth
76.3 mm
DIN rail
50 Hz
35 A
400 V
E
690 V
2
25 A
2
3
6 kV
IP40
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1726807 Siemens 5SP32353 5SP3235-3 Main RCCB 35 A 400 V
Datasheet 1726807 Siemens 5SP32353 5SP3235-3 Main RCCB 35 A 400 V
User & Safety Instructions
User & Safety Instructions 1726807 Siemens 5SP32353 5SP3235-3 Main RCCB 35 A 400 V
Description
Circuit breaker size S3 for motor protection, CLASS 10 A-release 57...75 A N-release 975 A screw terminal Standard switching capacity
