Siemens 5SP37163 5SP3716-3 Main RCCB 16 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
Main RCCB
Number of pins
1
Release characteristics
E
Nominal current - rounded value
16 A
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
14-day return policy included
Technical specifications
- IP40, with the connected conductors
- Product type
Main RCCB
- Number of pins
1
- Release characteristics
E
- RoHS-compliant
Yes
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Grey

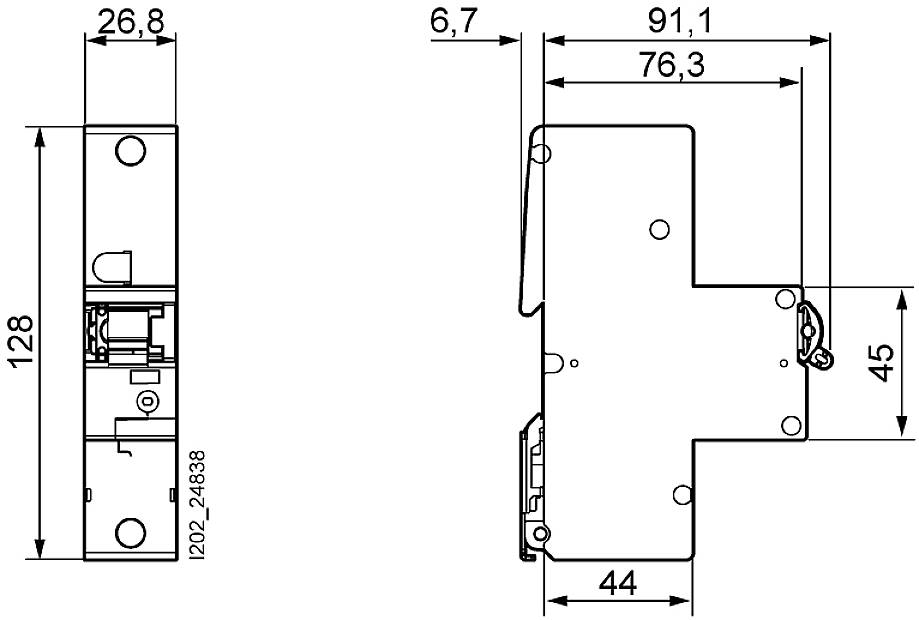

- Dim
(W x H x D) 26.8 x 128 x 76.3 mm
- Content
1 pc(s)
- Operating voltage
440 V
- Nominal voltage
230 V
400 V
- Compatible with (details)
SENTRON
- Width
26.8 mm
- Height
128 mm
- Depth
76.3 mm
DIN rail
50 Hz
16 A
230 V
E
690 V
1
25 A
2
3
6 kV
IP40
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1727011 Siemens 5SP37163 5SP3716-3 Main RCCB 16 A 230 V, 400 V
Datasheet 1727011 Siemens 5SP37163 5SP3716-3 Main RCCB 16 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1727011 Siemens 5SP37163 5SP3716-3 Main RCCB 16 A 230 V, 400 V
Description
SIMATIC ET 200SP, BaseUnit BU20-P12+A0+4B, BU type B1, Packing unit: 1 unit, push-in terminals, without auxiliary terminals, bridged to the left, WxH: 20 mm x 117 mm
