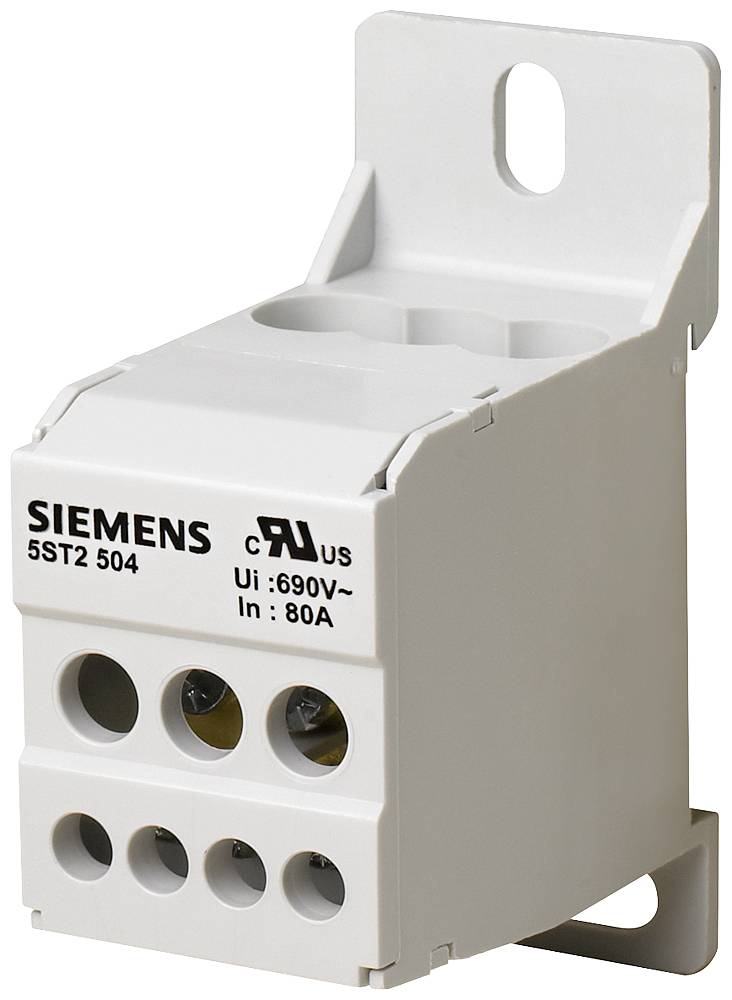

Siemens 5ST2504 Distribution Block Compatible with (details): DIN rail TH35 Grey 1 pc(s)
Packaging type
Piece
Product type
Distribution Block
Compatible with (details)
DIN rail TH35
Factory colour
Grey

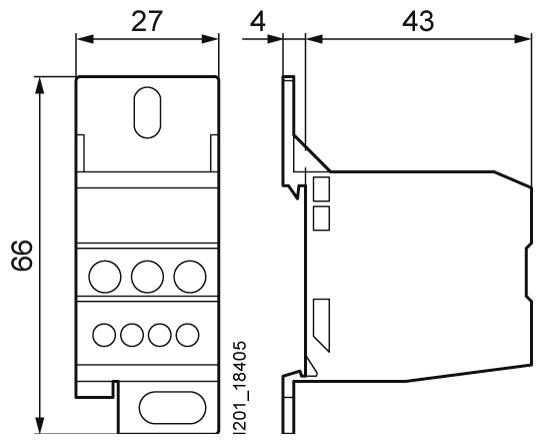

Dim
(W x H) 27 mm x 43 mm
EAN:
Part number:
Item no:
Technical specifications
- Compatible with (details)
DIN rail TH35
- Packaging type
Piece
- Product type
Distribution Block
- Factory colour
Grey
- Dim
(W x H) 27 mm x 43 mm
- Connection
Screws
- Type
2 floors
- Connector colour
Grey
- Manufacturer part #
5ST2504
- Content
1 pc(s)
- Nominal voltage
1000 V
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Number of pins
1
- Width
27 mm
- Height
43 mm
- Type
5ST2504
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
25 mm²
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749687 Siemens 5ST2504 Distribution Block Compatible with (details): DIN rail TH35 Grey 1 pc(s)
Description
Distribution block 1-pole, 80A, IEC 1000V AC / 1500V DC, UL 600V AC / DC, Input: 3x 2.5-25mm2, Output: 4x 2.5-6mm2 for rail mounting distribution block SENTRON 5ST2 as additional component for current protection devices and circuit breakers. These additional components can be universally mounted. They can be installed and connected easily and comfortably. The standard protection against accidental contact guarantees installation safety. Optimal technology for your safety - only from Siemens.
