Siemens 5SV60166GV10 5SV6016-6GV10 AFDD 1-phase

Single-pole Siemens Arc Fault Detection Device (AFDD), Model Number 5SV5 016-6KK16, with Test and Reset Buttons.

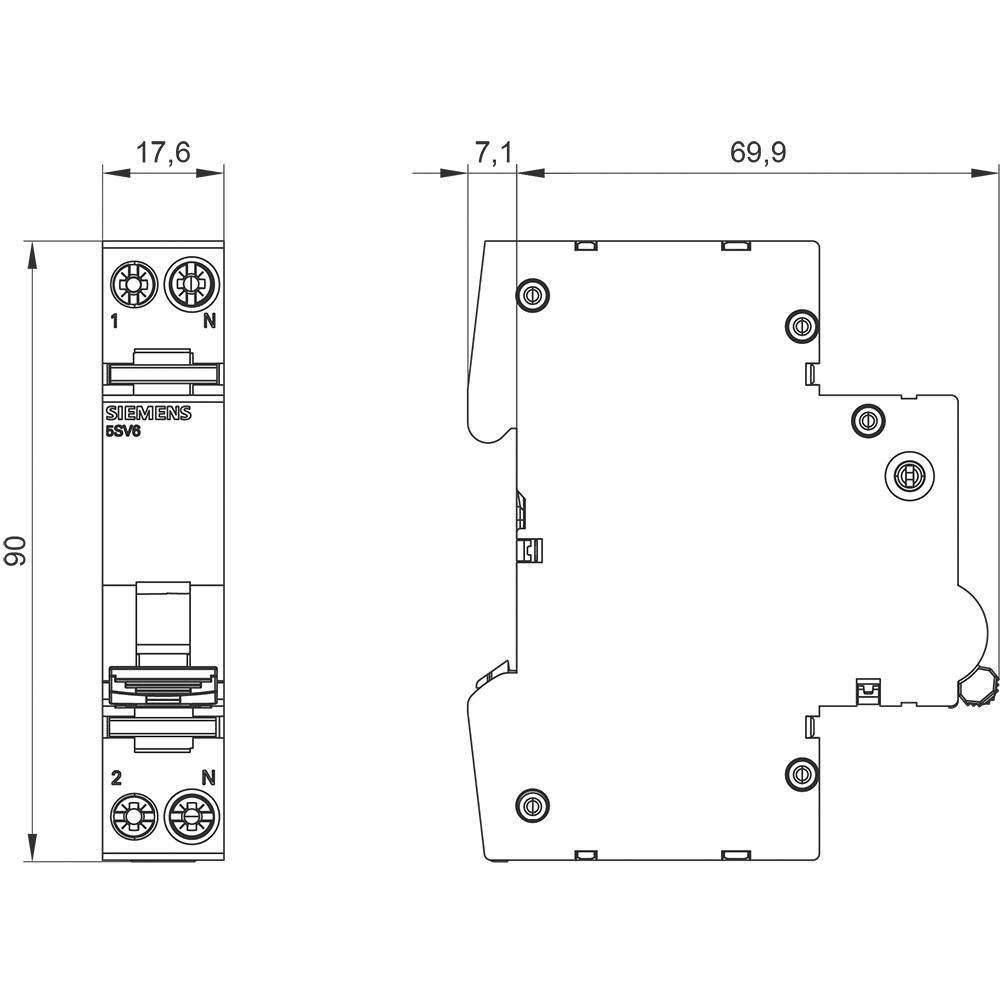

Diagram of an electrical component with dimensions: height 90 mm, width 17.6 mm, depth 69.9 mm. Connections at 1, 2 at top and bottom.

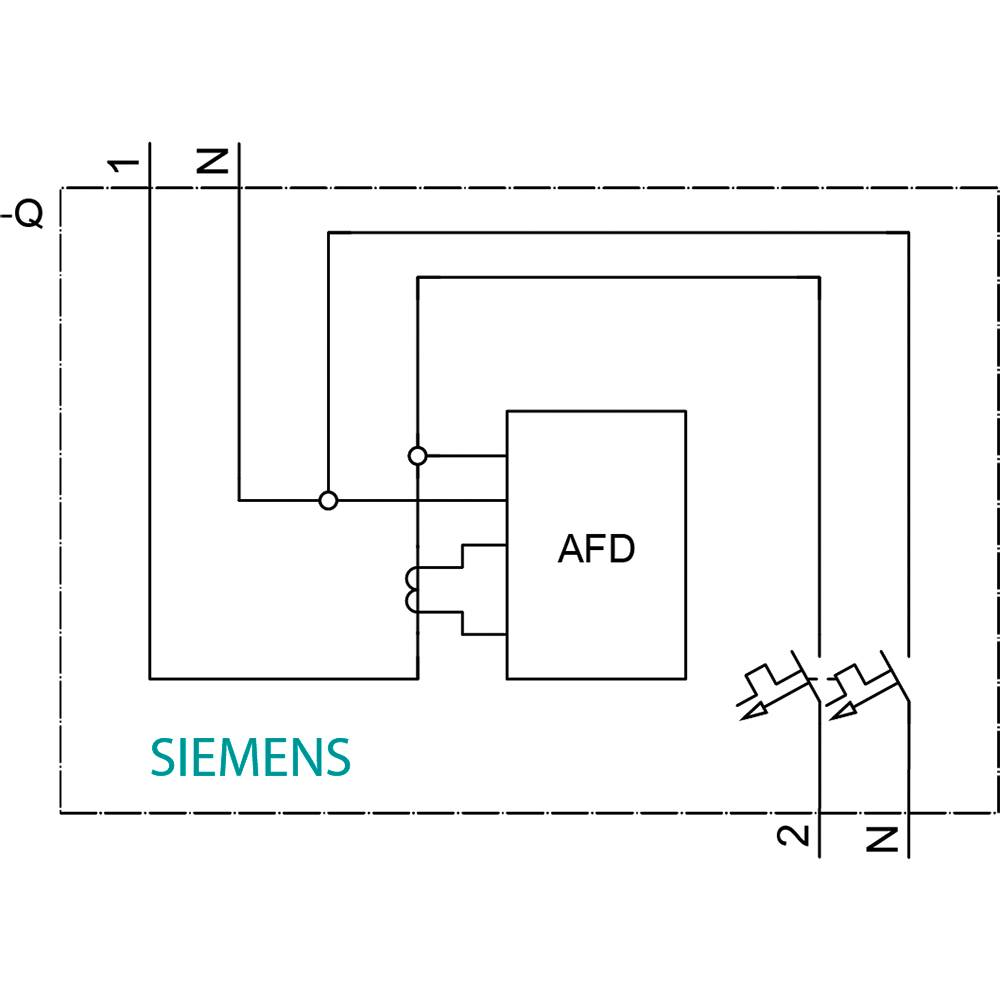

'Circuit diagram of a Siemens AFD device. Shows wiring to light connections at positions 1 and 2.'
1/3
Image similar
Product type
AFDD
Release characteristics
B
RoHS-compliant
Yes
Content
12 pc(s)
Model
1-phase
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

AFDD

Release characteristics

B

RoHS-compliant

Yes

Content

12 pc(s)

Model

1-phase

Switch-off capacity

6 kA

AC

70 mm

10 A

230 V

B

2

3

2

1

IP20

6 kA

6 kA

6000

AC

Fire protection switch

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2867507 Siemens 5SV60166GV10 5SV6016-6GV10 AFDD 1-phase

User & Safety Instructions

User & Safety Instructions 2867507 Siemens 5SV60166GV10 5SV6016-6GV10 AFDD 1-phase

Description

5SV6 AFDD/MCB 6kA B10 1+N 1MW Big Pack 12 pcs SENTRON 5SV6 .


The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
