Siemens 5SV60166KP16 5SV6016-6KP16 AFDD

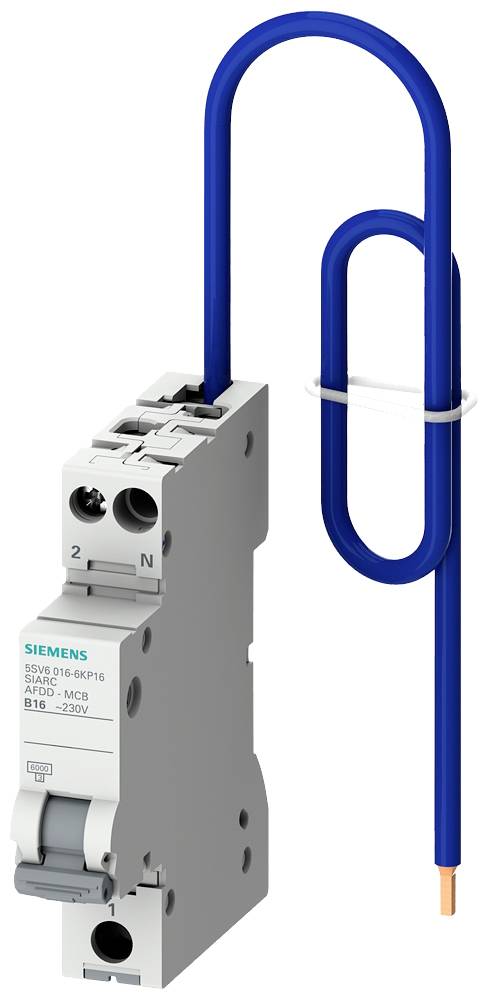

A small, grey protective switch with a large blue wire attached to it, partially bent into a loop.

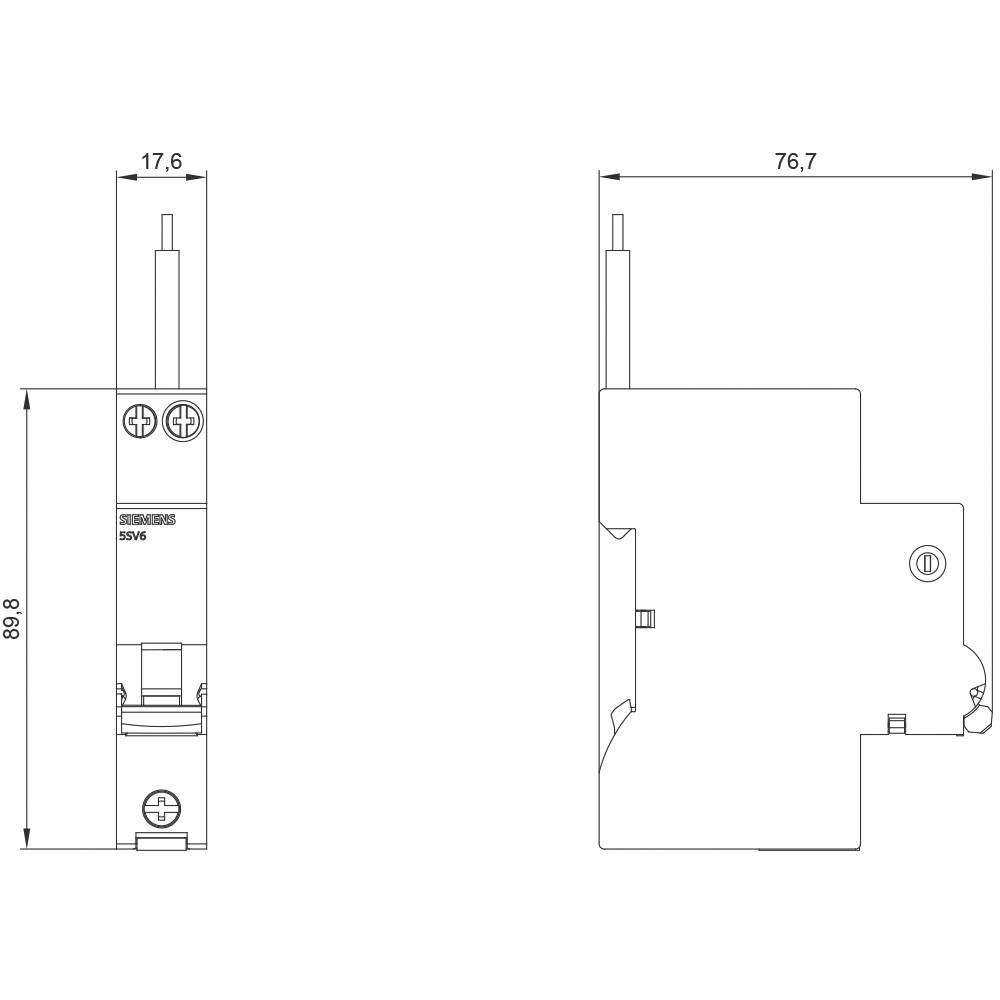

Technical drawing of an electrical switch with dimensions: width 17.6 mm, height 89.8 mm, depth 76.7 mm.

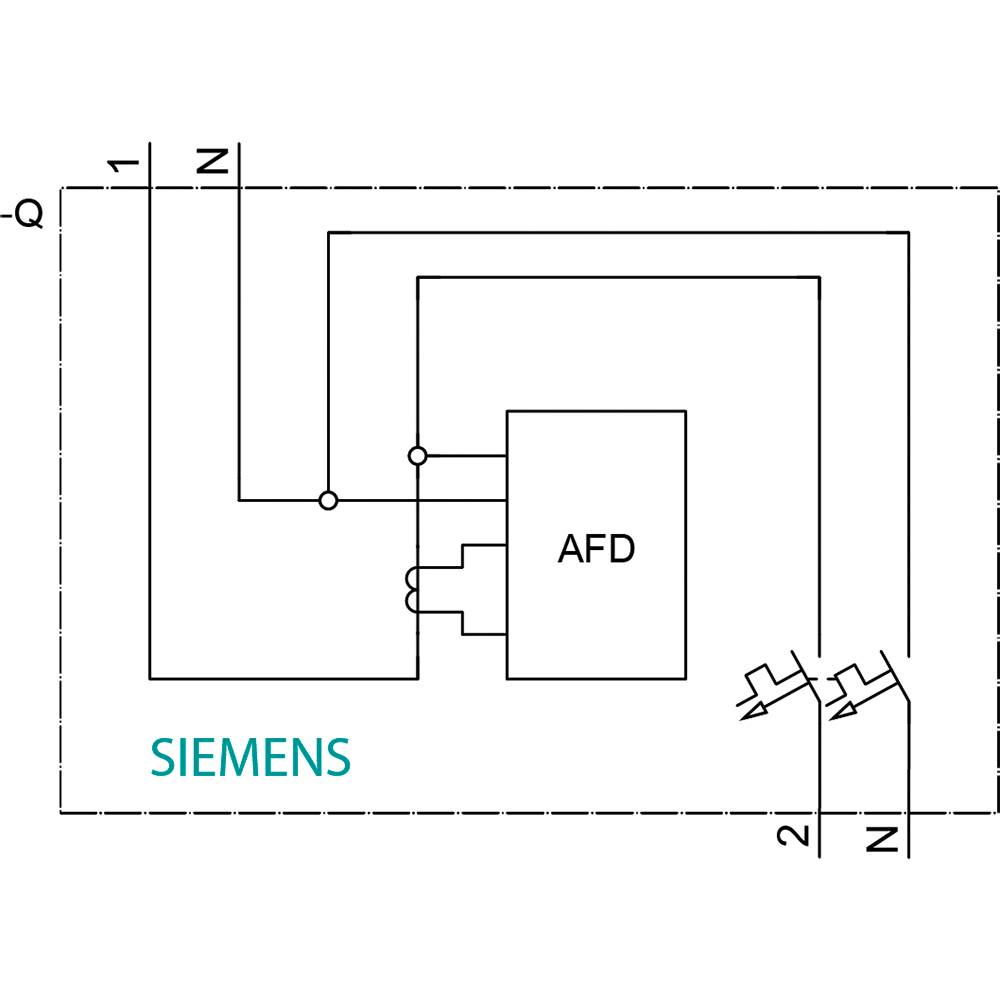

Schematic diagram of a Siemens electrical device, showing the connection between the AFD unit and safety components, marked with Z1, Z2.
1/3
Image similar
Product type
AFDD
Release characteristics
B
RoHS-compliant
Yes
Content
1 pc(s)
Switch-off capacity
6 kA
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

AFDD

Release characteristics

B

RoHS-compliant

Yes

Content

1 pc(s)

Switch-off capacity

6 kA

AC

70 mm

16 A

230 V

B

2

3

2

1

IP20

6 kA

6 kA

6000

195

AC

Fire protection switch

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2882665 Siemens 5SV60166KP16 5SV6016-6KP16 AFDD

User & Safety Instructions

User & Safety Instructions 2882665 Siemens 5SV60166KP16 5SV6016-6KP16 AFDD

Description

AFDD-MCB-combination 230V, 6kA, 1+N, B, 16A compact (1MW) pigtail SENTRON 5SV6 .


The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways.
