Siemens 5SV60167KP25 5SV6016-7KP25 AFDD

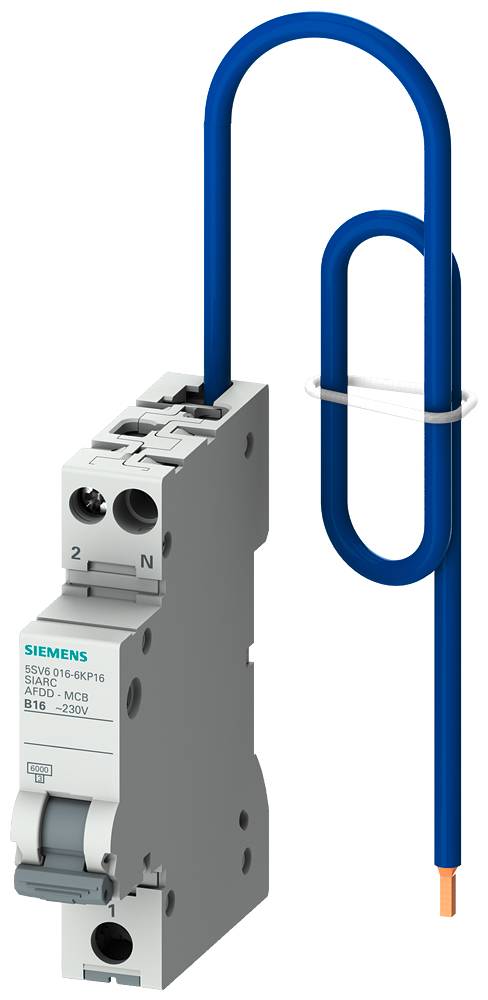

A grey Siemens circuit breaker with a blue wire connection, marked with '5SY6 016-6CF16' and 'N 2', on a white background.

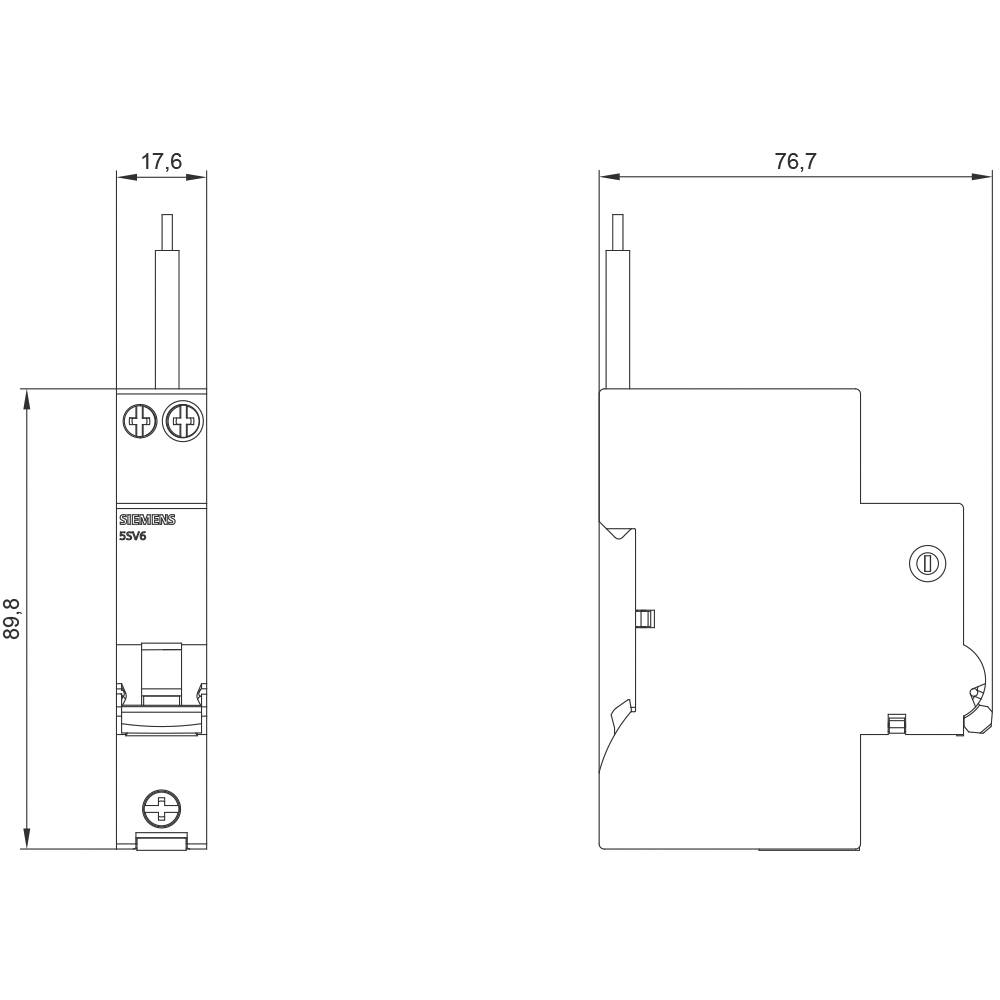

Technical drawing of an electrical component with dimensions: Height 89.8 mm, Width 17.6 mm, Depth 76.7 mm. Top view and side view.

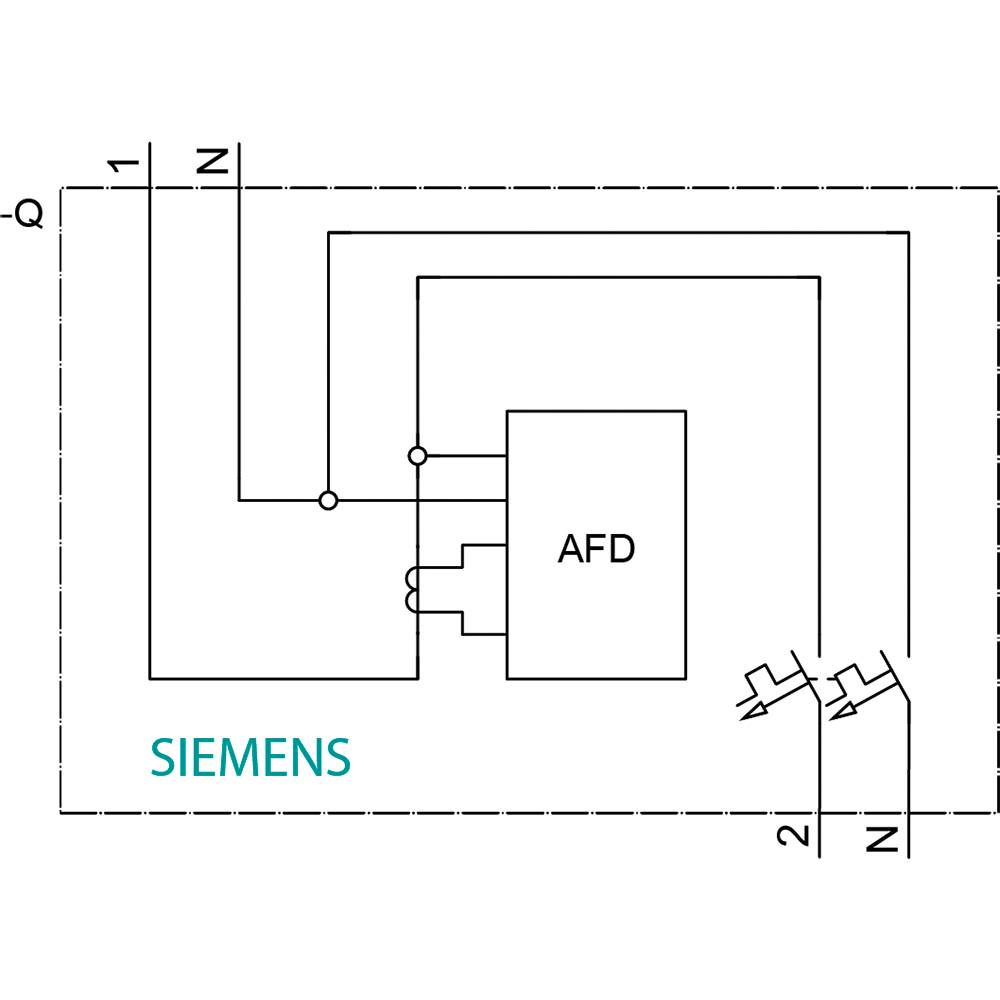

'Siemens' circuit diagram connected to switches and lights.
1/3
Product type
AFDD
Release characteristics
C
RoHS-compliant
Yes
Content
1 pc(s)
Switch-off capacity
6 kA
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

AFDD

Release characteristics

C

RoHS-compliant

Yes

Content

1 pc(s)

Switch-off capacity

6 kA

AC

70 mm

25 A

230 V

C

2

3

2

1

IP20

6 kA

6 kA

6000

195

AC

Fire protection switch

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2882680 Siemens 5SV60167KP25 5SV6016-7KP25 AFDD

User & Safety Instructions

User & Safety Instructions 2882680 Siemens 5SV60167KP25 5SV6016-7KP25 AFDD

Description

AFDD-MCB-combination 230V, 6kA, 1+N, C, 25A compact (1MW) pigtail SENTRON 5SV6 .


The extensive accessories, such as the auxiliary switch, allow the functions to be extended in a wide variety of ways.
