Name: Siemens 5SY17082 5SY1708-2 RCCB sealable 72 V DC 8 A 1 pc(s)
Brand: Siemens
SKU: 2864122

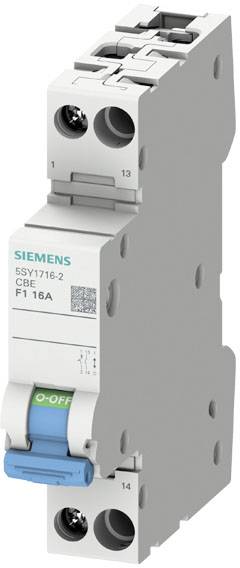

'Siemens circuit breaker, model CBE F1 16A, grey housing, green and blue switch for on/off function.'

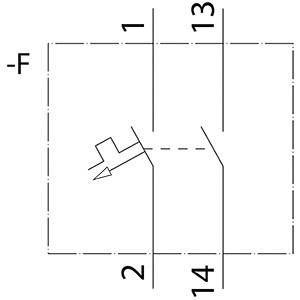

Mechanical engineering diagram shows a connection situation with numbered paths '1, 2, 13, 14' and an arrow symbol for orientation.

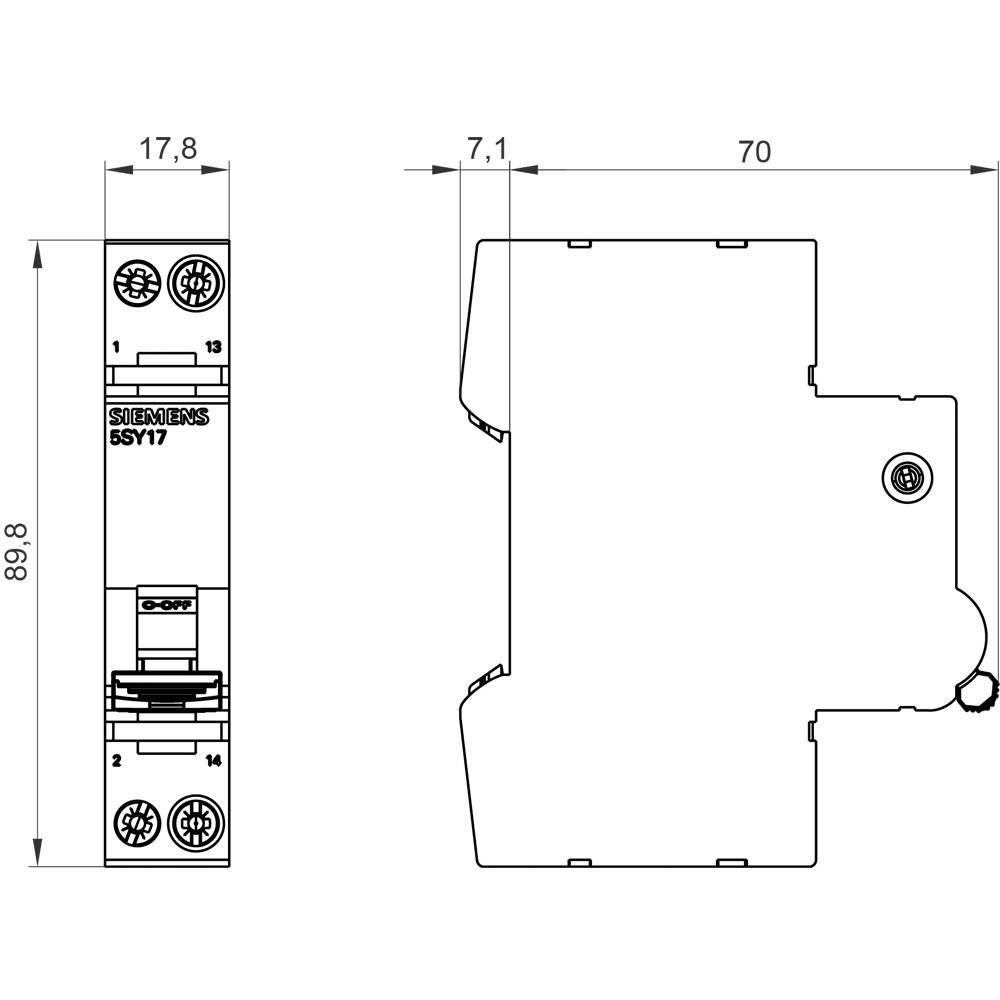

Circuit diagram of a Siemens DIN rail mounting switching device with dimensions: 89.8 mm height, 17.8 mm width, 70 mm depth.

1/3

Image similar

Product type

RCCB

Switching voltage

72 V DC

Switching current (max.)

8 A

Switch/button features

sealable

Type

Device protection switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Cross-section/single-wire: 0.5 mm² - 16 mm²
Cross-section/multi-wire connection: 0.5 mm² - 16 mm²
Tightening torque 2 Nm - 2.5 Nm
Mounting type: Top hat rail
Operating voltage: 72 V/DC
Operating current: 8 A
Mounting position: Horizontal / vertical
Mounting depth: 70 mm
Net weight: 106.7 g
Number of poles: 1
Pollution level: 2
Supply voltage 230 V/AC.
Over voltage category III

Product type: RCCB

Switch/button features: sealable

Type: Device protection switch

Switching voltage: 72 V DC

Switching current (max.): 8 A

Min. temperature: -25 °C

Max. temperature: +60 °C

: IP20

Length: 76 mm

Width: 18 mm

Height: 90 mm

Durability: 6000

Content: 1 pc(s)

Type: 5SY1708-2

Dim: (L x W x H) 76 x 18 x 90 mm

RoHS-compliant: Yes

Frequency: 50 Hz
60 Hz

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2864122 Siemens 5SY17082 5SY1708-2 RCCB sealable 72 V DC 8 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2864122 Siemens 5SY17082 5SY1708-2 RCCB sealable 72 V DC 8 A 1 pc(s)

Description

Device protection switch 1-pole with auxiliary contact closer characteristic F1 8A AC 230V 50/60Hz DC 60V ICN 3KA AC according to IEC 60934

This text is machine translated.

Description

Device protection switch 1-pole with auxiliary contact closer characteristic F1 8A AC 230V 50/60Hz DC 60V ICN 3KA AC according to IEC 60934
