Name: Siemens 5SY41047 5SY4104-7 Circuit breaker 4 A
Brand: Siemens
SKU: 2262619

Siemens 5SY41047 5SY4104-7 Circuit breaker 4 A-0

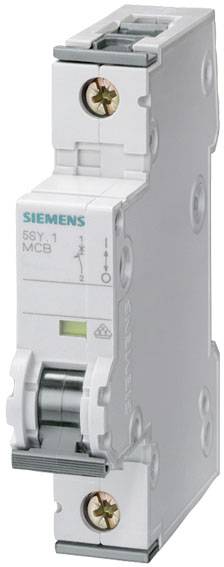

Siemens 5SY41047 5SY4104-7 Circuit breaker 4 A-1

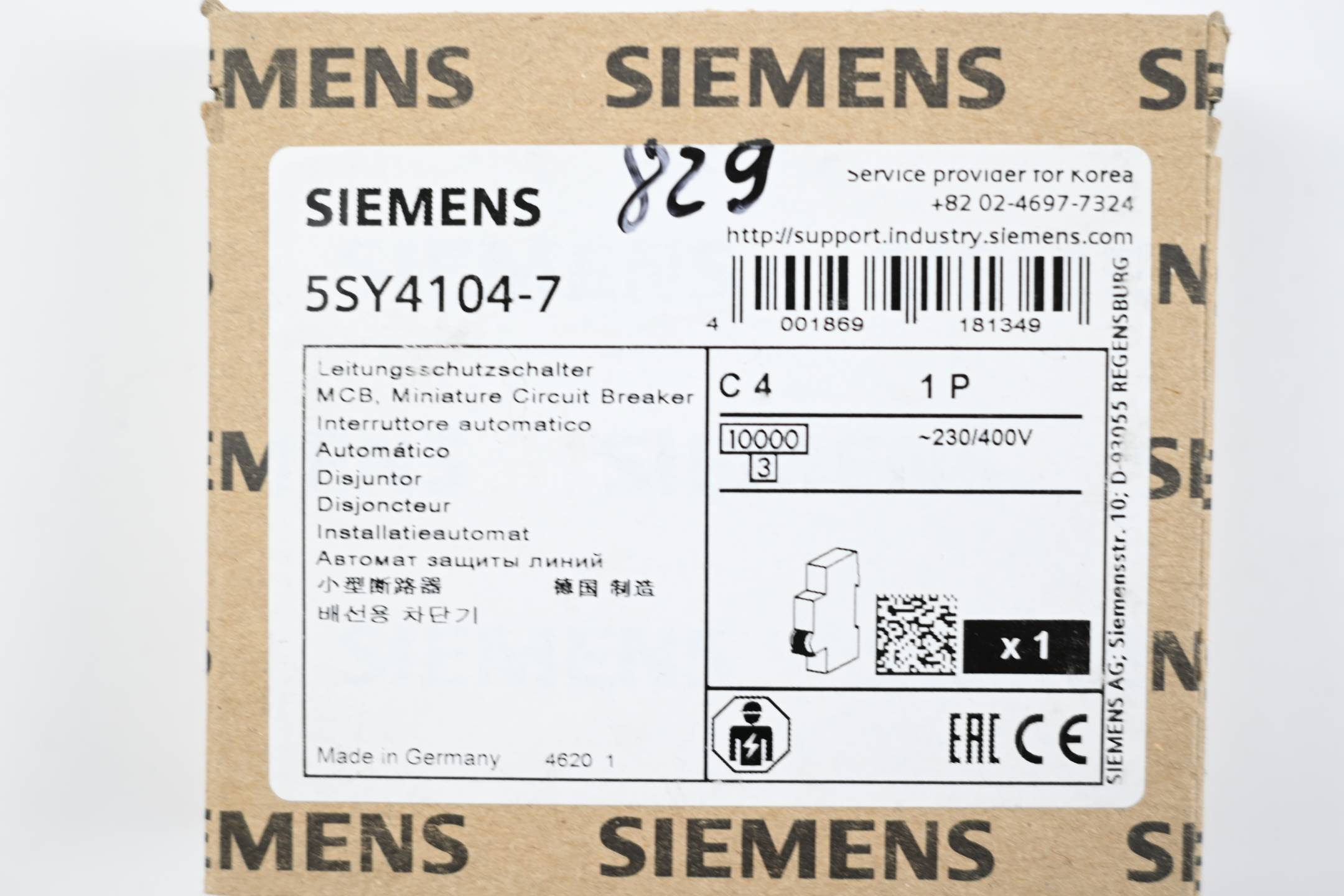

Siemens 5SY41047 5SY4104-7 Circuit breaker 4 A-2

1/3

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

4 A

Nominal voltage (details)

230/400 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Number of wide division units: 1
Number of test cycles / for environmental testing: 6
Tightening torque / for screw connection / minimum: 2.5 Nm
Tightening torque / for screw terminals / maximum: 3.5 Nm
Design of the basic type: 5SY4
Fastening method: Quick mounting system
Suitability for use: Mechanical engineering / industry
All mounting positions permitted
Mounting depth: 70 mm
Insulation voltage / at 440 V AC
Insulation voltage / during single-phase operation / at 440 V AC
Insulation voltage / for multi-phase operation / at AC 440 V.
Mechanical life (operations) / typical 10000
Number of poles / Note: 1P
Position / of the mains connection cable: Any
Product features / touch protection: Yes
Product component / combination clamp top: Yes
Product component / combination clamp below: Yes
Product property / properties for main switch according to EN 60204-1: Yes
Product property / halogen-free: Yes
Product property / sealable: Yes
Product property / silicone-free: Yes
Product extension / installable / Additional equipment: Yes
Switching capacity (ICU+) 35 kA
Switching capacity current / according to EN 60898: 10 kA
Switching capacity current / according to IEC 60947-2: 35 kA
Switching capacity current / at DC / according to IEC 60947-2: 15 kA
Protection class IP: IP20, with connected conductors
Ambient temperature / during operation / minimum -40 °C.
Ambient temperature / during operation / maximum +70 °C.
Power loss / at rated current / at AC / at warm operating state / per pole: 1.3 W.
Power loss / maximum 1.3 W.
Pollution level 3
Supply voltage frequency 50 Hz
Supply voltage frequency / note: 50/60 Hz
Over voltage category III
Operating voltage / minimum 24 V
AWG number / as coded connectable conductor cross-section / minimum: 18
AWG number / as coded connectable conductor cross-section / maximum: 4
Connectable conductor cross-section / single-wire: 0.75 mm² - 35 mm²
Connectable conductor cross-section / fine-wired / with wire-end processing: 0.75 mm² - 25 mm²
Connectable conductor cross-section / multi-wired: 0.75 mm² - 35 mm²
