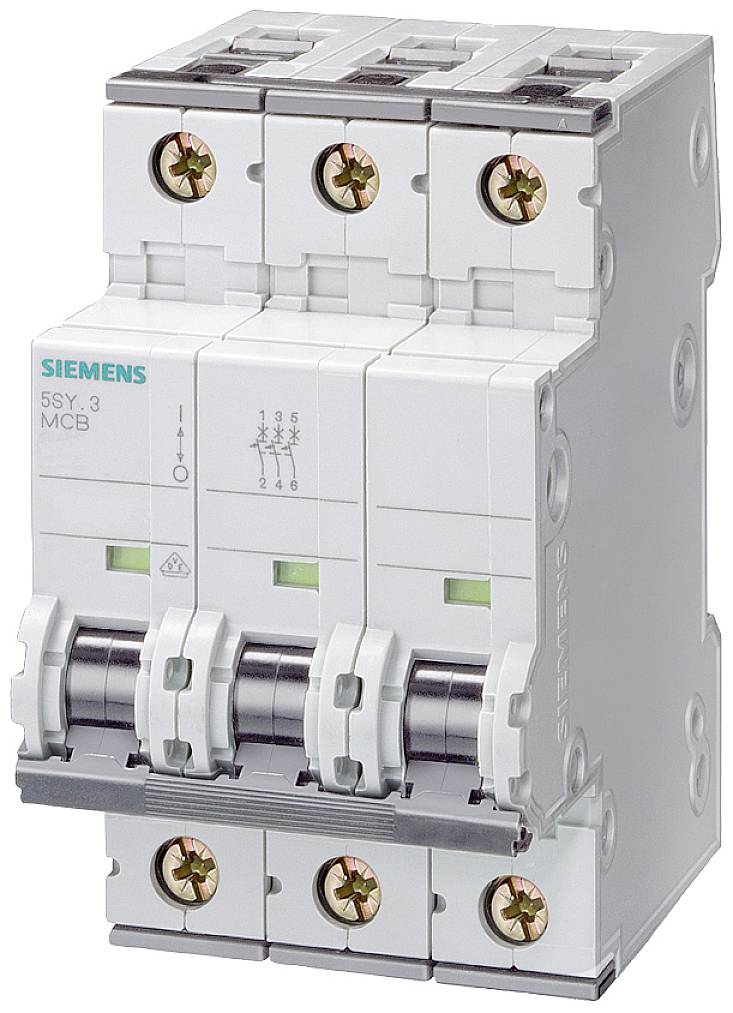

Siemens 5SY63257 5SY6325-7 Circuit breaker 25 A 230 V, 400 V
EAN:
Part number:
Item no:
Nominal current - rounded value
25 A
Number of pins
3
Release characteristics
C
Product type
Circuit breaker
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€
Technical specifications
- IP20, with the connected conductors
- RoHS-compliant
Yes
- Nominal current - rounded value
25 A
- Nominal current
25 A
- Factory colour
Grey

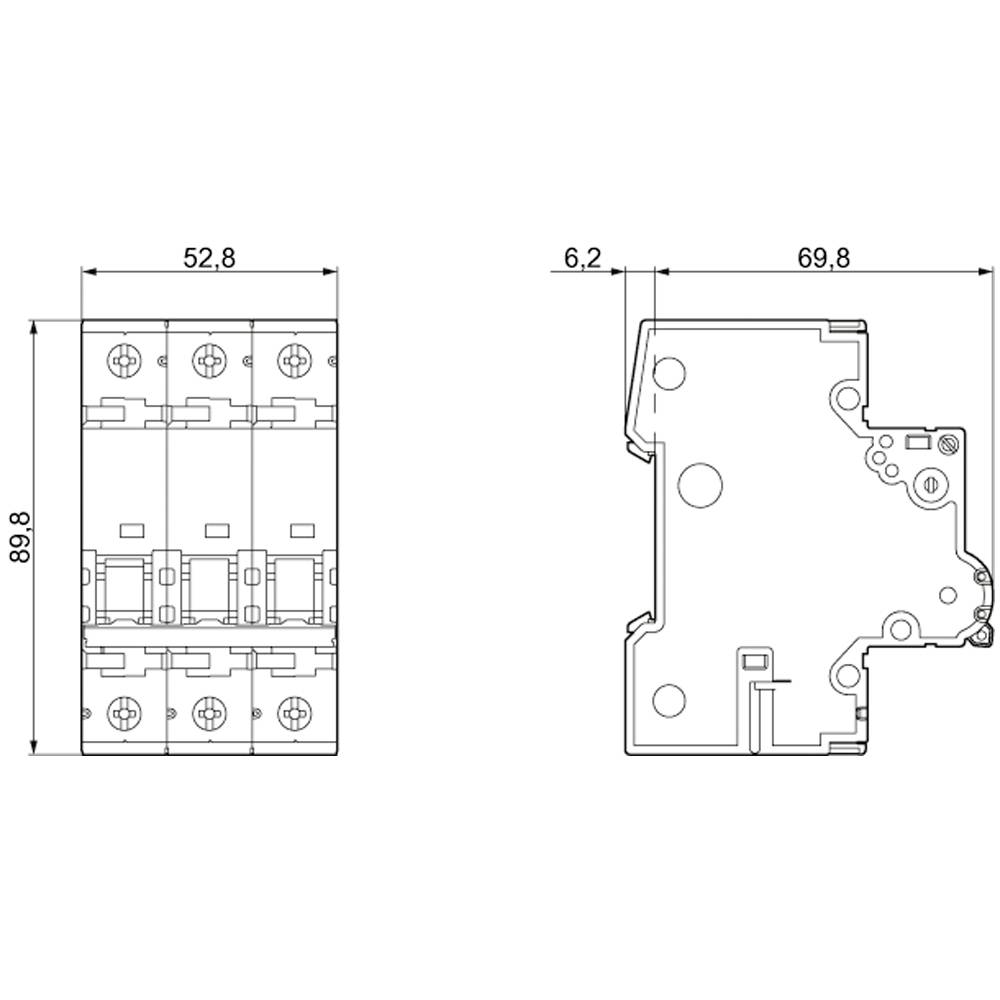

- Dim
(W x H x D) 54 x 90 x 76 mm
- Content
1 pc(s)
- Depth
76 mm
- Height
90 mm
- Width
54 mm
- Compatible with (details)
SENTRON
- Nominal voltage
230 V
400 V
- Switch-off capacity
5 kA
- Number of pins
3
- Release characteristics
C
- Operating voltage
440 V
- Weight
0.46
AC
70 mm
25 A
400 V
50-60 MHz
C
440 V
3
3
3
3
FALSE
IP20
3
FALSE
0.75-35 mm²
0.75-35 mm²
-25-55 °C
FALSE
TRUE
3
6 kA
6 kA
15 kA
15 kA
4
- Product type
Circuit breaker
Documents & Downloads
Datasheet
Datasheet 1729037 Siemens 5SY63257 5SY6325-7 Circuit breaker 25 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1729037 Siemens 5SY63257 5SY6325-7 Circuit breaker 25 A 230 V, 400 V
Description
Signal cable pre-assembled (810D/611D to encoder EnDat) 3x 2x 0.14+4x 0.14+2x0.5 C UL/CSA, DESINA MOTION-CONNECT 500 Dmax=9.3 mm TYPE: 6FX5002-2CH00 LENGTH (M) = 0 + 10 + 0 + 0
