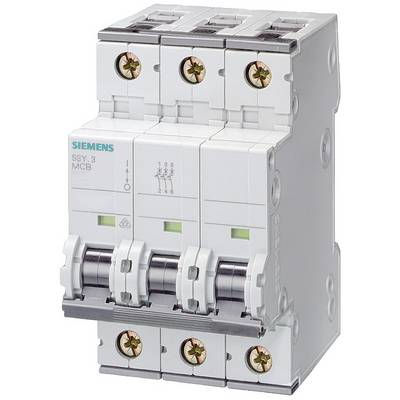

Siemens 5SY73147 5SY7314-7 Circuit breaker 0.3 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
300 mA
RoHS-compliant
Yes
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 126.04 / piece)
€
Technical specifications
- IP20, with the connected conductors
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
300 mA
- Nominal current
0.3 A
- Factory colour
Grey

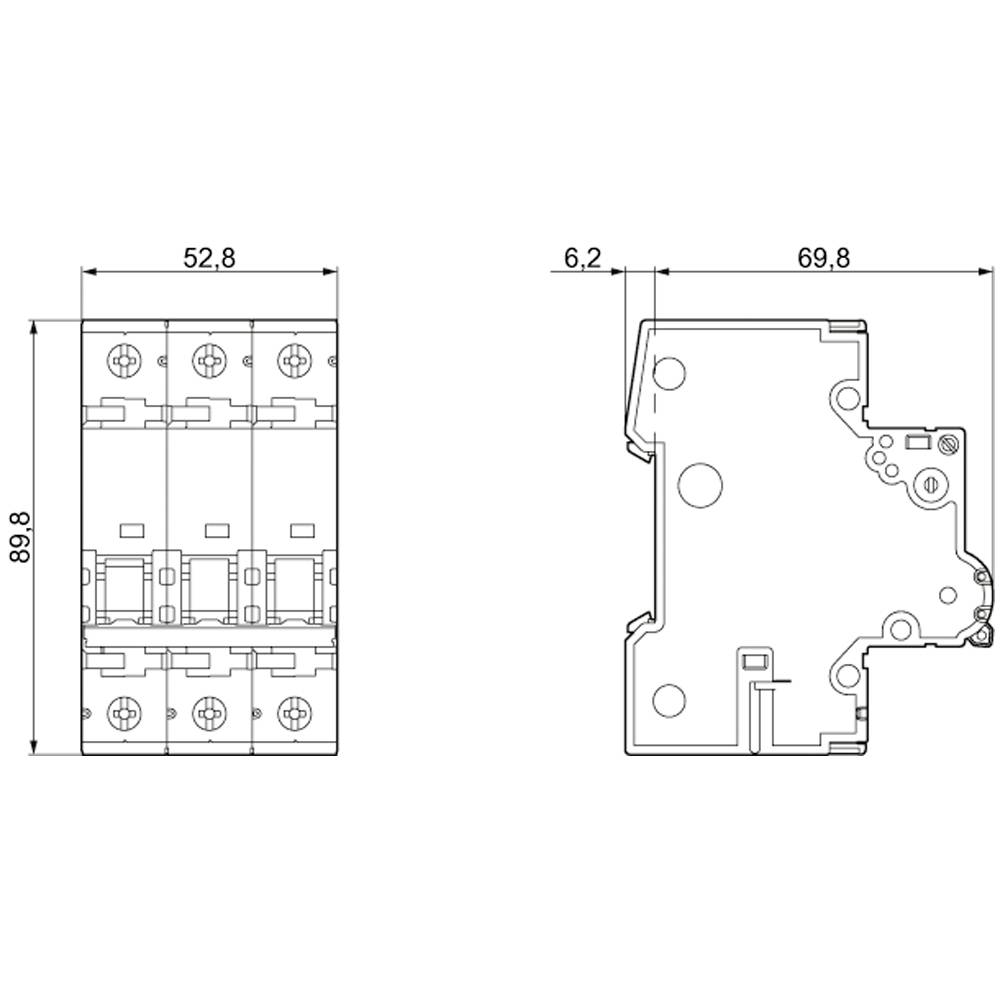

- Dim
(W x H x D) 54 x 90 x 76 mm
- Content
1 pc(s)
- Switch-off capacity
5 kA
- Operating voltage
440 V
- Nominal voltage
230 V
400 V
- Compatible with (details)
SENTRON
- Width
54 mm
- Height
90 mm
- Depth
76 mm
AC
70 mm
0.3 A
400 V
50-60 MHz
C
440 V
3
3
3
3
IP20
3
FALSE
TRUE
3
15 kA
15 kA
50 kA
50 kA
4
Documents & Downloads
Datasheet
Datasheet 1702574 Siemens 5SY73147 5SY7314-7 Circuit breaker 0.3 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1702574 Siemens 5SY73147 5SY7314-7 Circuit breaker 0.3 A 230 V, 400 V
Description
Miniature circuit breaker 400 V 15kA, 3-pole, D, 25A, D=70 mm
