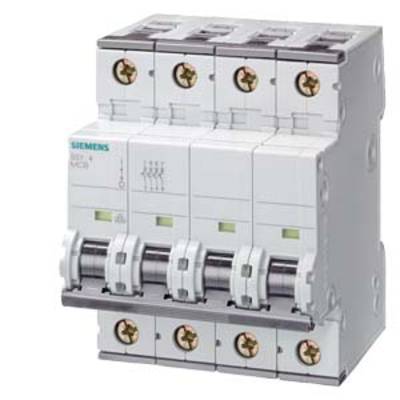

Siemens 5SY76057 5SY7605-7 Circuit breaker 0.5 A 230 V, 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Release characteristics
C
Nominal current - rounded value
500 mA
RoHS-compliant
Yes
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 159.66 / piece)
€
Technical specifications
- IP20, with the connected conductors
- Product type
Circuit breaker
- Number of pins
4
- Release characteristics
C
- RoHS-compliant
Yes
- Nominal current - rounded value
500 mA
- Nominal current
0.5 A
- Factory colour
Grey
- Dim
(W x H x D) 72 x 90 x 76 mm
- Content
1 pc(s)
- Switch-off capacity
5 kA
- Operating voltage
440 V
- Nominal voltage
230 V
400 V
- Compatible with (details)
SENTRON
- Width
72 mm
- Height
90 mm
- Depth
76 mm
AC
70 mm
0.5 A
400 V
50-60 MHz
C
440 V
3
3
3
4
IP20
3
TRUE
TRUE
4
15 kA
15 kA
50 kA
50 kA
4
Documents & Downloads
Datasheet
Datasheet 1727888 Siemens 5SY76057 5SY7605-7 Circuit breaker 0.5 A 230 V, 400 V
Datasheet 1727888 Siemens 5SY76057 5SY7605-7 Circuit breaker 0.5 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1727888 Siemens 5SY76057 5SY7605-7 Circuit breaker 0.5 A 230 V, 400 V
Description
Fixed-mounted circuit breaker 4-pole, Size 2 In=2500 A to 690 V, 50/60 Hz AC Icu=80 kA at 500 V with ready to close signaling switch with mechanical lockout device with tripped signaling switch with tripped indicators Connection top horizontal bottom horizontal Single hole Overcurrent release AZN (N) G Variant G Setting range 1000 ... 2500 A Motorized/manual operating mechanism with memory with electrical and mechanical activation Motor and electr. calling for 220...240 V AC, 220...250 V DC without 1st auxiliary release without 2nd auxiliary release Switch position-depending auxiliary current switches 2 NC+2 NO
