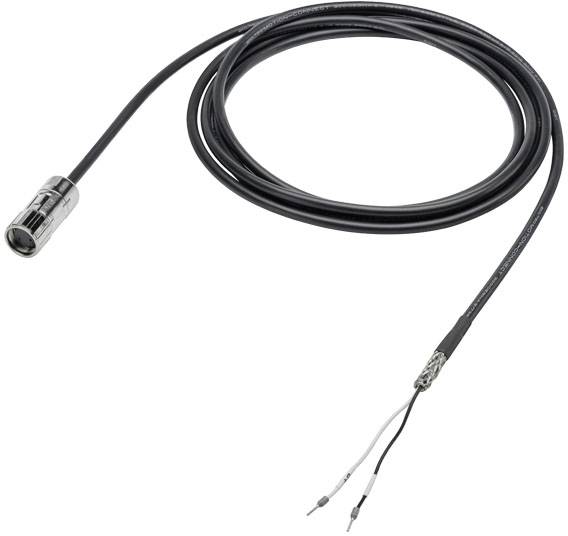

Image similar
Siemens 6FX30025BL031BF0 Sensor/actuator connector (pre-fab) Plug, straight 15.00 m 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Connection side A
Plug, straight
Cable length
15.00 m
Nominal voltage
30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Net weight: 0.91 kgApplication area: For the servo motor SIMOTION S-1FL6Type of insulation: PVCBending radius / with moving cable: 155 mmBending radius / with fixed laid cable: 6 x diameterTensile load / with moving cable: 20 N/mm²Tensile load / with fixed wiring: 50 N/mm²
- Type
6FX3002-5BL03-1BF0
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, straight
- Connection side A
Plug, straight
- Cable length
15.00 m
- Jacket material
PVC
- Nominal voltage
30 V
- Outside Ø
6.3 mm
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Plug
IP65
- Features
PVC
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Manufacturer part #
6FX30025BL031BF0
- Content
1 pc(s)
- Cable Ø (max.)
6.3 mm
- Cable Ø range
6.3 mm (max)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2862143 Siemens 6FX30025BL031BF0 Sensor/actuator connector (pre-fab) Plug, straight 15.00 m 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2862143 Siemens 6FX30025BL031BF0 Sensor/actuator connector (pre-fab) Plug, straight 15.00 m 1 pc(s)
Description
Brake cable assembled 2x0.75, for motor S-1FL6 HI 400 with V70/V90 MOTION-CONNECT 300 No UL for motor-side plug Dmax=6.3 mm length (m)=15m Version with straight plug Mot Ready-made cables of MOTION-CONNECT 300 connection technology for the servo motor SIMOTICS S-1FL6. The power line is part of THE MOTION-CONNECT 300 connection technology between the SINAMICS V90 servo converter and the SIMOTICS S-1FL6 servo motor. The cable is available in various lengths between 3 m and 20 m. SINAMICS - the integrated drive family for all applications.
