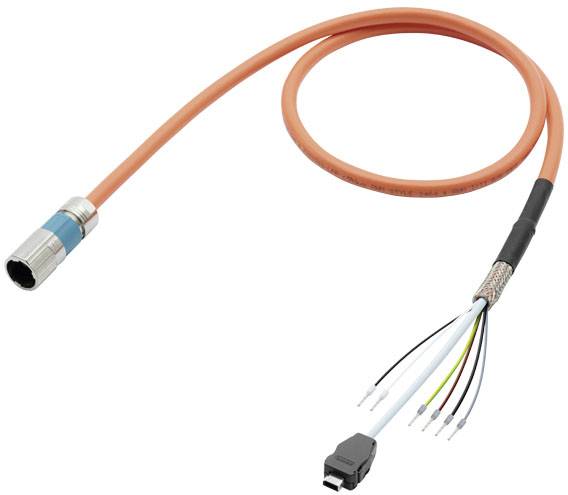

Siemens 6FX50028QN081FA0 Sensor/actuator cable M17 SPEEDCON Plug, straight 50.00 m 1 pc(s)

Single-cable cable wire assembles 4G0.75+2x0.5+4x0.2 C plug SPEED-Connect M17 wires with wire-end sleeves Data line with IX plug UL/CSA DESINA Motion-Connect 500 DMAX=10.5 MM, length (m)=50 One Cable Connection (OCC) MOTION-CONNECT the simple, fast and safe connection for the SINAMICS S210 servo converter and the SIMOTICS S-1FK2 servo motor. The servo motor and the servo converter are connected with only one cable instead of the otherwise usual two or three lines. With this single-cable technology with quick-connect SPEED-CONNECT power, encoder connection and brake control are combined in one cable. This results in some advantages, such as the time-saving laying of only one cable and the reduced installation space and/or Space required for cable routing. It is also advantageous that only one cable has to be cleaned, especially in industries where increased hygiene requirements are made. The cable can also be ordered with the exact decimeter and has a motor-side M17 or M12 connection plug (smallest OCC-plug world-wide). A simple assembly allows the compact motor with a small rotary plug even in confined spaces. The cable is designed on the converter side in the IP20 degree of protection and on the motor side in the IP65 degree of protection. Optimised connection technology with OCC (One Cable Connection)
