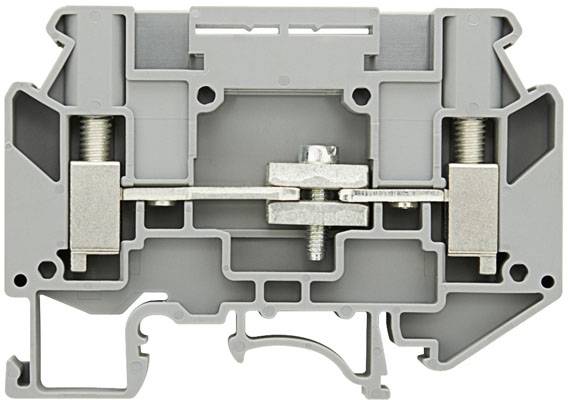

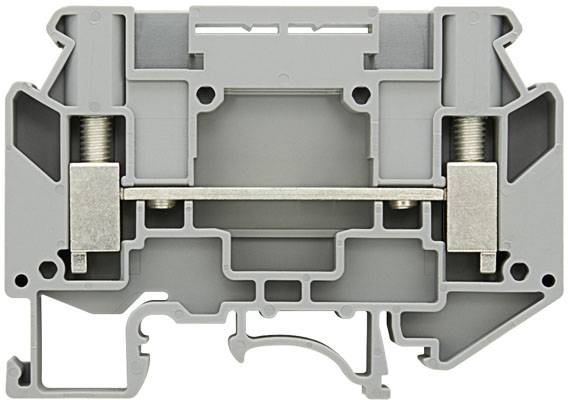

Siemens 8WH10007BH00 Test terminal 6 mm Screws Grey 50 pc(s)
Product type
Test terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Measuring isolating terminal, 6mm2 continuity screw fixing 2 connections INSULATED Ter.
Our service for you
Technical specifications
- Connectable conductor cross-section / fine-wired / with wire-end processing / maximum: 6 mm²
- connectable conductor cross-section / fine-wired / with wire-end processing / minimum: 0.5 mm²
- Number of terminal points / per terminal level: 2
- tightening torque / with screw connection / maximum: 1.8 Nm
- tightening torque / with screw connection / minimum: 1.5 Nm
- Mounting type: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low mounting type: 48 mm
- clip pitch: 6 mm
- material / of the insulating body: Thermoplastic
- position / of the terminal clamp: Side
- product component / required / end plate: Yes
- ambient temperature / during operation / maximum: 55 °C
- ambient temperature / during operation / minimum: -25 °C.
- Product type
Test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
6 mm
- No. of rows
1
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
8WH10007BH00
- Content
50 pc(s)
- Type
8WH1000-7BH00
- Height
48 mm
- Length
66.5 mm
- RoHS-compliant
Yes
- Weight
18.8 g
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
8.15
66.5 mm
46.8 mm
800 V
66.5 m
V0
6 mm
48 mm
TRUE
Screw connection
Screw connection
1
2
FALSE
Other
41 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2263859 Siemens 8WH10007BH00 Test terminal 6 mm Screws Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2263859 Siemens 8WH10007BH00 Test terminal 6 mm Screws Grey 50 pc(s)
Description
Measuring isolating terminal, 6mm2 continuity screw fastening 2 connections ISOLATING terminals 6mm2 terminal blocks - connection technology for various industrial applications and modern building installation by Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens.
