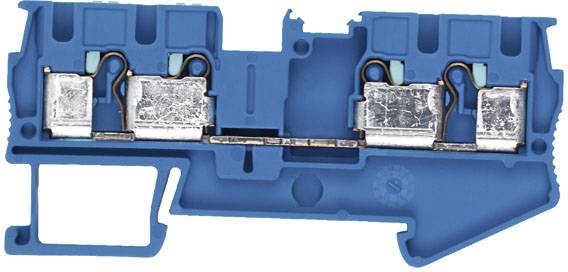

Image similar
Siemens 8WH60040AG01 Continuity Plug & Clip Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Feed-through terminal 4 mm2, 6.2mm width blue 4-terminal points
Our service for you
Technical specifications
- Connectable conductor cross-section / fine-wired / with wire-end processing / maximum: 4 mm²
- connectable conductor cross-section / fine-wired / with wire-end processing / minimum: 0.25 mm²
- connectable conductor cross-section / multi-wire / maximum: 6 mm²
- connectable conductor cross-section / multi-wire / minimum: 0.2 mm²
- number of terminal points / per terminal level: 4
- type of mounting: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low mounting type: 36.5 mm
- terminal pitch: 6.2 mm
- material / of the insulating body: Thermoplastic
- Product component / required / end plate: Yes
- Ambient temperature / during operation / maximum: 55 °C.
- Packaging type
Piece
- Product type
Continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Stripping length (max.)
12 mm
- Manufacturer part #
8WH60040AG01
- Content
50 pc(s)
- Type
8WH6004-0AG01
- Height
36.5 mm
- Length
77 mm
- RoHS-compliant
Yes
- Weight
15 g
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Blue
6.2
76.93 mm
35.3 mm
800 V
77 m
V0
6.2 mm
36.5 mm
TRUE
Push-in clamp connection
Push-in clamp connection
1
4
Other
32 A
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2263978 Siemens 8WH60040AG01 Continuity Plug & Clip Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2263978 Siemens 8WH60040AG01 Continuity Plug & Clip Blue 50 pc(s) Piece
Description
Through terminal 4 mm2, 6.2mm width blue 4-terminal points Terminal block connection technology for various industrial applications and modern building installation by Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens.
This text is machine translated.
This text is machine translated.
