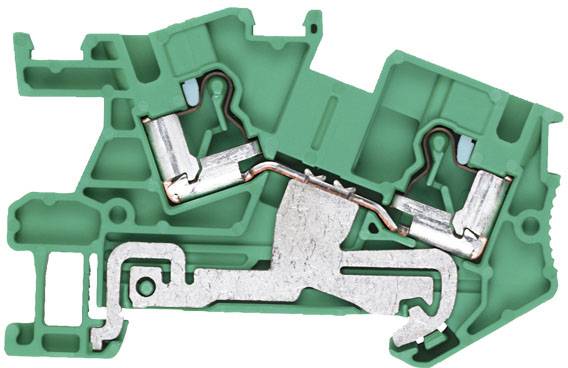

Image similar

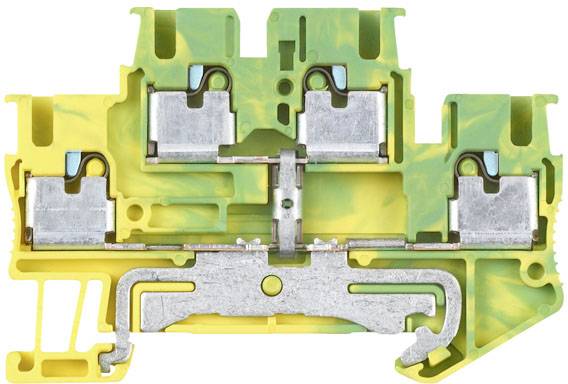

Siemens 8WH60200CF07 PE terminal 5.2 mm Jack connector Green-yellow 50 pc(s)
Product type
PE terminal
Connection
Jack connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Content
50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IPO terminals, double-level terminal
- 8WH6020-0CF07
Our service for you
Technical specifications
- Connectable conductor cross-section / fine wire / with wire-end processing / maximum: 2.5 mm²
- connectable conductor cross-section / fine wire / with wire-end processing / minimum: 0.2 mm²
- connectable conductor cross-section / multi-wire / maximum: 2.5 mm²
- connectable conductor cross-section / multi-wire / minimum: 0.14 mm²
- number of terminal points / per terminal level: 2
- type of mounting: DIN rail 35 mm
- flammability class in accordance with UL 94: V0
- Height / with low-end mounting type: 36.5 mm
- clamp pitch: 5.2 mm
- material / of the insulating body: Thermoplastic
- position / of the terminal clamp: Above
- Product component / required / end plate: Yes
- Ambient temperature / during operation / maximum: 35 °C
- ambient temperature / during operation / minimum: -25 °C
- Product specification / PEN function: Yes
- Product type
PE terminal
- Connection
Jack connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.2 mm
- No. of rows
2
- Factory colour
Green-yellow
- Stripping length (max.)
10 mm
- Manufacturer part #
8WH60200CF07
- Content
50 pc(s)
- Type
8WH6020-0CF07
- Height
36.5 mm
- Length
68 mm
- RoHS-compliant
Yes
- Weight
17 g
- Flammability rating
V0
- Connector colour
Green-yellow
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Other
5.15
68.18 mm
45.85 mm
68 m
V0
5.2 mm
36.5 mm
TRUE
Other
Other
TRUE
2
4
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2264050 Siemens 8WH60200CF07 PE terminal 5.2 mm Jack connector Green-yellow 50 pc(s)
Description
IPO terminals, double-level terminal block connection technology for various industrial applications and modern building installation from Siemens. No matter whether you choose the screw, tension spring, push-in or quick connection: All connection methods can be combined freely with one another. The labeling and testing accessories are standardized and can be used across the board. Siemens terminal blocks can be used to implement many applications in industrial, industrial and residential buildings. Thus, you have the suitable connection technology for each connection. The Siemens terminal blocks are characterized above all by: 1. Permanently secure contact. 2. Easily detachable connection of electrical connections such as cables and wires. 3. Implementation of a variety of applications. 4. Convenient and easy installation and connection technology. 5. Extensive and standardized accessories. 6. Reliable safety during installation thanks to standard touch protection. 7. Optimum technology for your safety - only from Siemens. www.siemens.de/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems, switches and sockets for the safe, efficient electrical infrastructure in buildings and industry.
