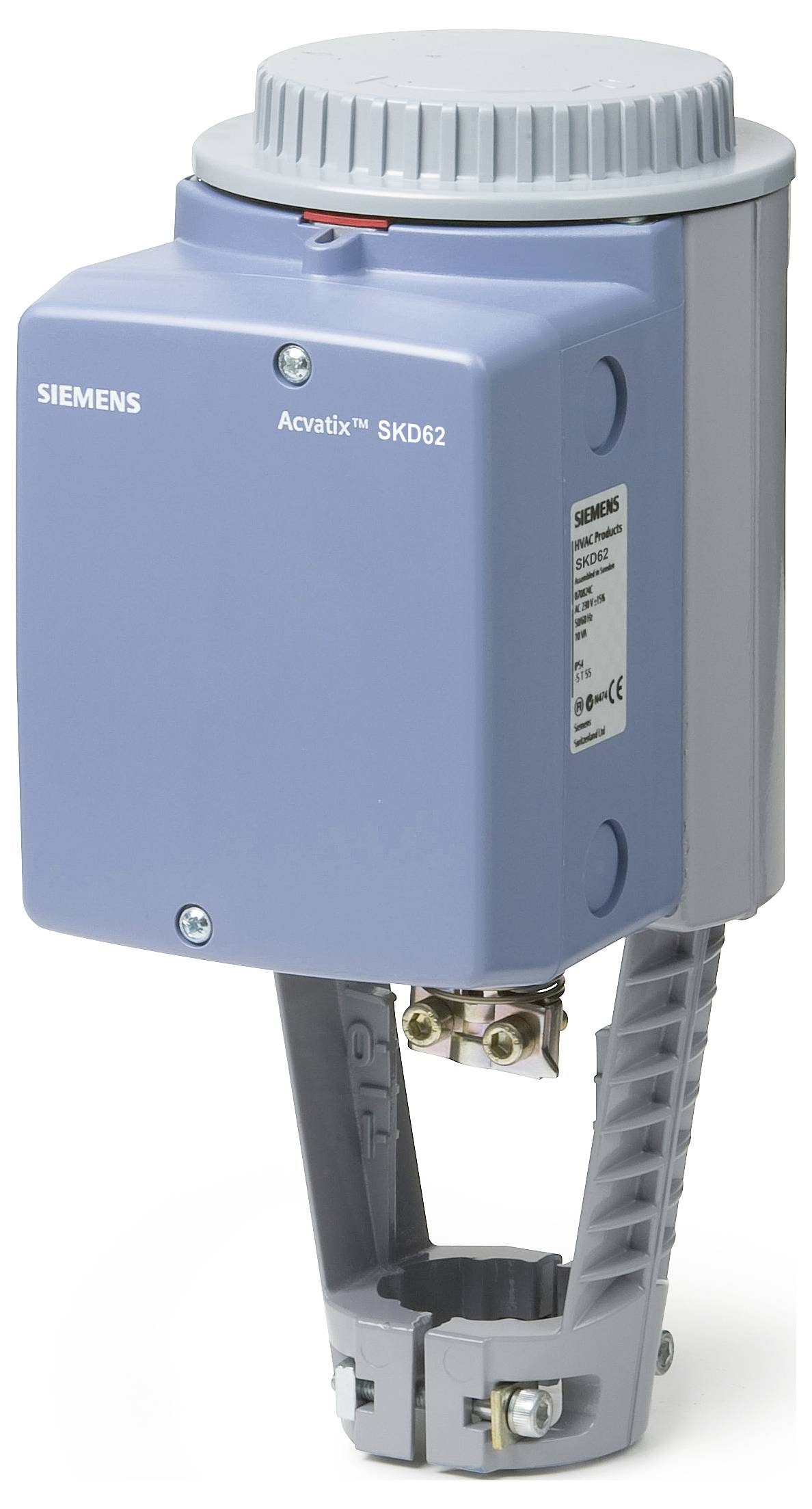

Name: Siemens BPZ:SKD62UA Actuator hydraulic
Brand: Siemens
SKU: 3753829

Technical specifications

Product type: Actuator

Operation type: hydraulic

Stroke: 20 mm

: 14 VA

Opening time: 30 s

Operating voltage: 24 V AC

Servo drive dims (L x W x H): 169 mm x 127 mm x 300 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3753829 Siemens BPZ:SKD62UA Actuator hydraulic

Description

With emergency function. Overload-proof through path-dependent, electronic end switch. Design in aluminum die-cast housing with lifting console for valves with 20 mm stroke. With additional functions: Change of direction of effect, lifting limit, sequence control and signal addition. Installation position for an auxiliary switch. With hand positioning. UL approved.

This text is machine translated.

Description

With emergency function. Overload-proof through path-dependent, electronic end switch. Design in aluminum die-cast housing with lifting console for valves with 20 mm stroke. With additional functions: Change of direction of effect, lifting limit, sequence control and signal addition. Installation position for an auxiliary switch. With hand positioning. UL approved.

This text is machine translated.
