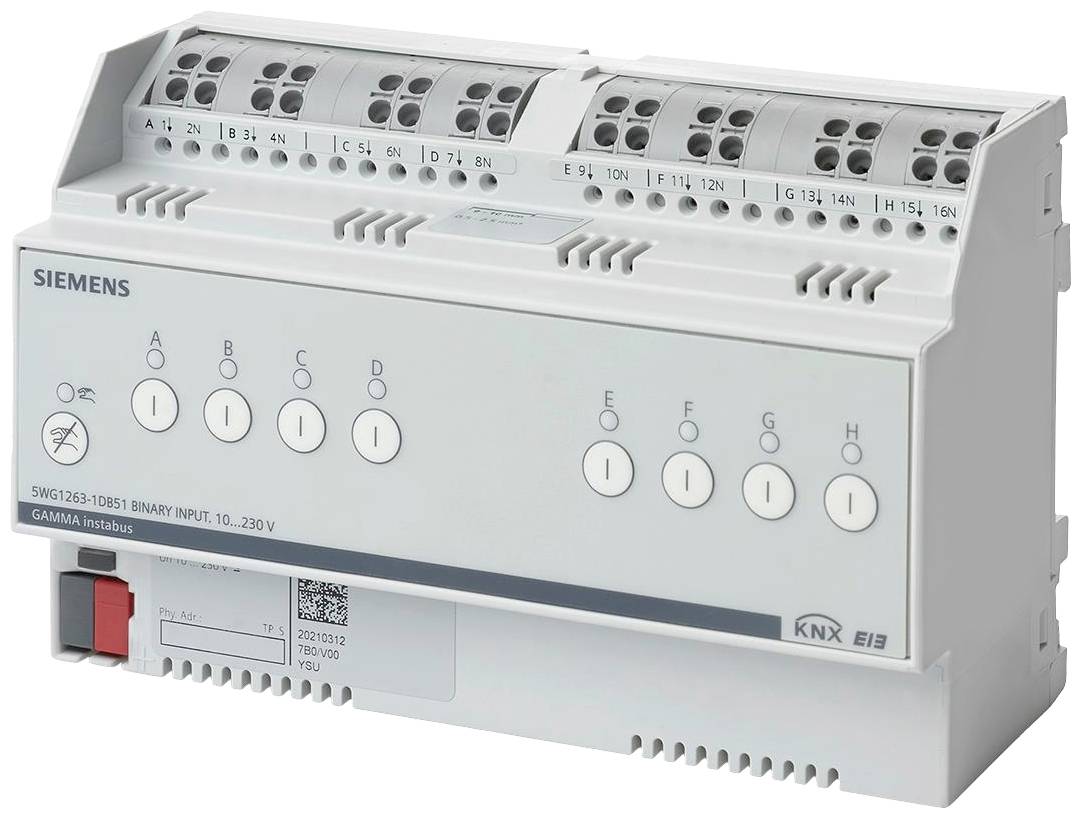

Siemens KNX 5WG12631DB51 Binary input 5WG1263-1DB51
EAN:
Part number:
Item no:
Technical specifications
- Product type
Binary input
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Width
144 mm
- Hub
Not required, optional for remote access
n.rel.
- Features
Signal input
DRA (DIN-rail adapter)
8
8
AC/DC
None
IP20
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2883321 Siemens KNX 5WG12631DB51 Binary input 5WG1263-1DB51
Description
- One alternating or direct current contact in the range of 10...230 V per input
- Per input Direct operation on the device for the simulation of input states and status display via LED
- Button on the front panel for activating and deactivating direct operation and LED for status indication direct operation
- Maintenance-free terminals for connection and looping of untreated conductors, single-wire, fine-stranded and multi-wired, 0.5 to 2.5 mm²
- Max. 100 m length of connection cables in pairs twisted conductors
- Operation of the electronics via bus voltage
- Housing: Plastic, color RAL 7035 (light gray), N-dimension
- DIN rail mounting device for mounting on TH35 DIN EN 60715 mounting rail
Protection class IP 20
- Max. Width 8 TE (1 TE = 18 mm)
This text is machine translated.
- Per input Direct operation on the device for the simulation of input states and status display via LED
- Button on the front panel for activating and deactivating direct operation and LED for status indication direct operation
- Maintenance-free terminals for connection and looping of untreated conductors, single-wire, fine-stranded and multi-wired, 0.5 to 2.5 mm²
- Max. 100 m length of connection cables in pairs twisted conductors
- Operation of the electronics via bus voltage
- Housing: Plastic, color RAL 7035 (light gray), N-dimension
- DIN rail mounting device for mounting on TH35 DIN EN 60715 mounting rail
Protection class IP 20
- Max. Width 8 TE (1 TE = 18 mm)
