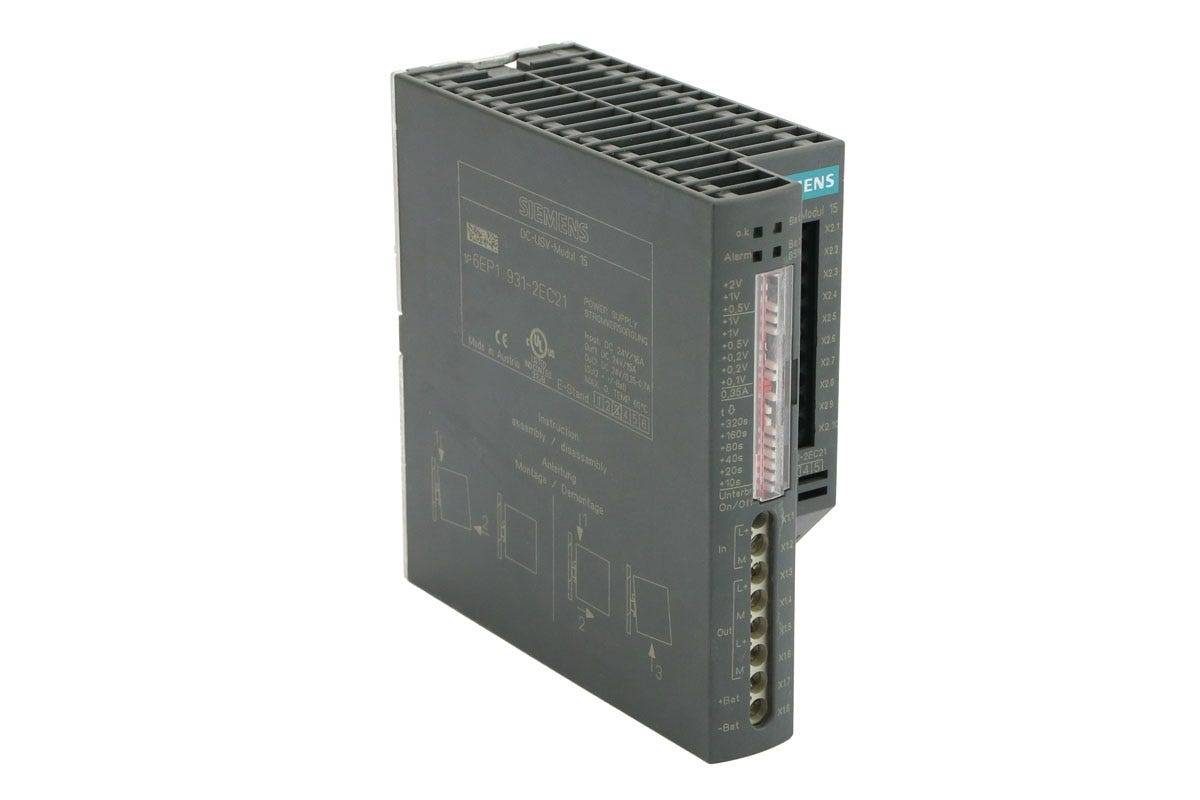

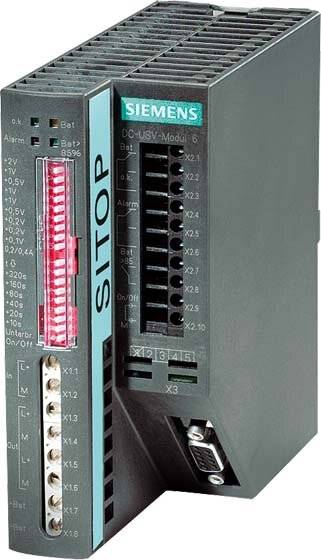

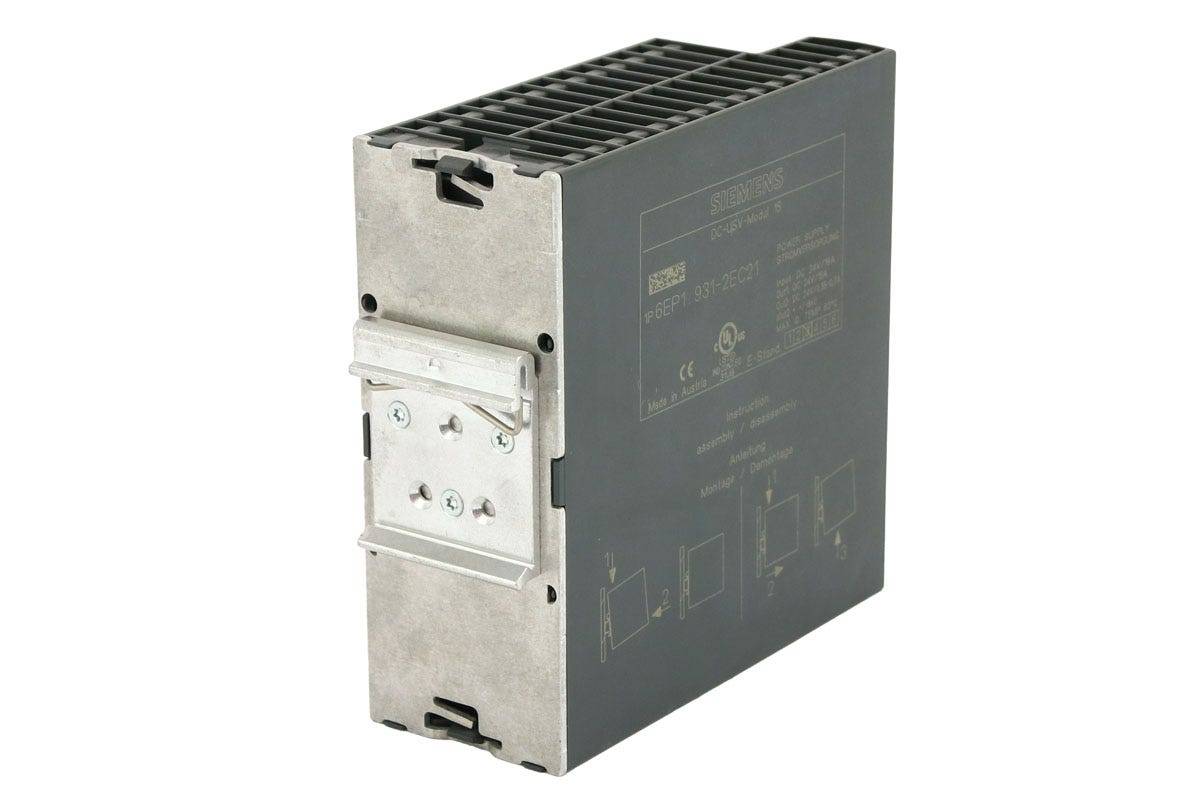

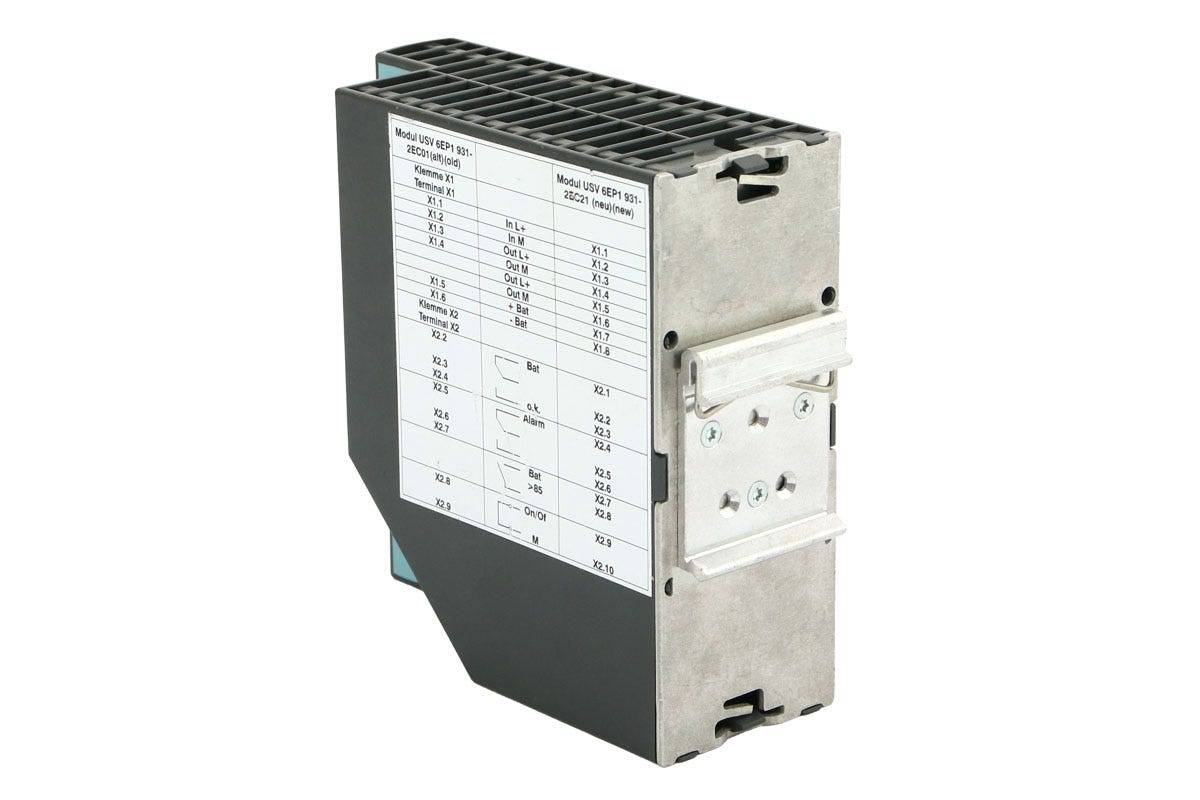

Siemens SITOP DC-USV-MODUL 15A DC 24V Industrial UPS
Datasheet (PDF)
Item no:
Total (€ 295.00 / piece)
€ 295.00
incl. VAT
14-day return policy included
Highlights & Details
Sitop DC-UPS module 15 A DC 24 V - VAT ALREADY INCLUDED IN PRICE
- Integrated Battery management
- LED-status signals
Technical specifications
- Protection class: IP20
- Input voltage
22 - 29 V DC
- Product type
Industrial UPS
- Input voltage (max.)
29 V DC
- Min. input voltage
22 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 50 x 125 x 125 mm
- Connections
Screw connector
- of which battery-buffered
2
- Output current (details)
0 - 15 A
- Weight
0.4 kg
- Width
50 mm
- Height
125 mm
- Depth
125 mm
- Interfaces
none
- Type
SITOP DC-USV-MODUL 15A DC 24V
- Features
USB port
- Bridging time, max load
45 s
- Output voltage
24 V DC
- Max. current
15 A
Documents & Downloads
Datasheet
Datasheet 513062 Siemens SITOP DC-USV-MODUL 15A DC 24V Industrial UPS
User & Safety Instructions
User & Safety Instructions 513062 Siemens SITOP DC-USV-MODUL 15A DC 24V Industrial UPS
Information
Information 513062 Siemens SITOP DC-USV-MODUL 15A DC 24V Industrial UPS
Description
Longer power outages are bridged completely without interruption when you combine a DC-UPS module with at least one battery module and a Sitop power supply!
Features
- Long service life of rechargeable battery as a result of integrated battery management
- High availability thanks to wide range of protection and monitoring functions
- Status signals via LED in green/yellow/red and potential-free relay contacts
- Status signals optionally available via serial of USB interface
- Support of automatic restart of industrial PCs
- Noise level class B and high stability.
