Buy Signal Construct SMCP08221 LED indicator light Green 7 V DC Tray

Yellow and silver electrical component, likely a push button or switch, with a metallic shiny surface and two terminals.

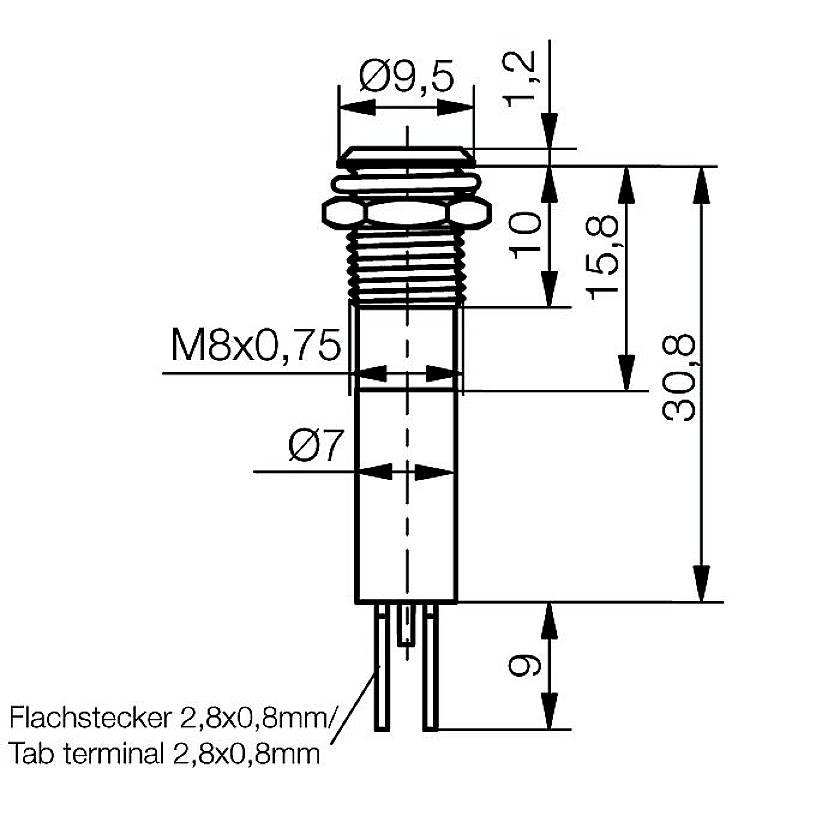

'Technical drawing of a connector: M8x0.75 thread, total length 30.8 mm, with flat plug 2.8x0.8 mm.'

1/2

Packaging type

Tray

Product type

LED indicator light

Operating voltage

7 V DC

Operating current

18 mA

Recess diameter

8 mm

Datasheet (PDF)

38 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.35 / piece)

€

Report legal concerns

Technical specifications

Packaging type: Tray

Product type: LED indicator light

Factory colour: Green

Operating voltage: 7 V DC

Operating voltage: 24 - 28 V DC

Min. operating voltage: 24 V DC

Max. operating voltage: 28 V DC

Operating current: 18 mA

Recess diameter: 8 mm

Head Ø: 9.5 mm

Case colour: Chrome (glossy)

Material: Brass

Material properties: chrome plated

: IP50

Connection: Type C CEE 7/16 plug 2.8 mm

Min. temperature: -30 °C

Max. temperature: 70 °C

: n.rel.

Content: 1 pc(s)

Moisture Sensitiviy Level (MSL): 1

Documents & Downloads

Datasheet

Datasheet 2435559 Signal Construct SMCP08221 LED indicator light Green 7 V DC Tray

User & Safety Instructions

User & Safety Instructions 2435559 Signal Construct SMCP08221 LED indicator light Green 7 V DC Tray

Description

LED-signal lamp with inner reflector and
LED flat head for front panel mounting.
Delivery scope
Lamp with lower ring and mounting
nut housing: Metal housing bright chrome-plated
With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 100 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP50
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
Operating voltage:
12/14V, 24/28V DC - red, yellow, green
12/14V, 24/28V DC(AC) - blue, white
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.

This text is machine translated.
