Buy Signal Construct SMFK30222 LED indicator light (multi-colour) Red, Green 12 V DC

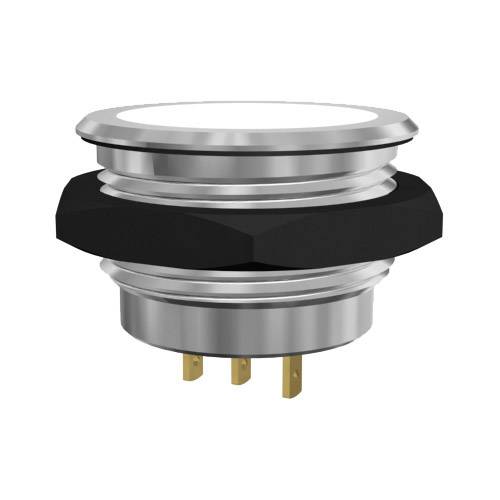

A round, silver metal button with a black plastic cover and three gold-coloured connectors at the bottom end.

Image similar

Product type

LED indicator light (multi-colour)

Operating voltage

12 V DC

Operating current

17 mA

18 mA

Recess diameter

30 mm

IP rating

IP67

Datasheet (PDF)

14 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€

Report legal concerns

Highlights & Details

LED indicator lamp diameter 30 mm red/green

Common Anode

Technical specifications

Common Anode

Product type: LED indicator light (multi-colour)

Type: SMFK 30222

Factory colour: Red
Green

Operating voltage: 12 V DC

Operating voltage: 12 - 14 V DC

Min. operating voltage: 12 V DC

Max. operating voltage: 14 V DC

Operating current: 17 mA
18 mA

Recess diameter: 30 mm

Front panel thickness: 14 mm

Case colour: Chrome

Material: Brass

Material properties: matt chrome plating

Mounting type: Screw and union

: IP67

Radiation angle: 160°

LED features: splashproof

Connection: Type C CEE 7/16 plug 2.8 mm

Dim: (Ø x H) 34 mm x 19 mm

Height: 19 mm

(Ø): 34 mm

: 60000 h

Min. temperature: -30 °C

Max. temperature: +75 °C

RoHS-compliant: Yes

: n.rel.

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1646998 Signal Construct SMFK30222 LED indicator light (multi-colour) Red, Green 12 V DC

Description

LED indicator lamps with 2-colored LED and frosted light surface for optimal on/off contrast. The control of both the cathode results in the mixed color amber. IP67 housing matt chrome-plated screw fixing M 30 x 1.5 mm.

This text is machine translated.
