Buy Signal Construct SWQU08424A LED indicator light Blue 24 V DC/AC Tray

A red LED indicator light with a silver housing and two connecting pins, commonly used in electronic devices.

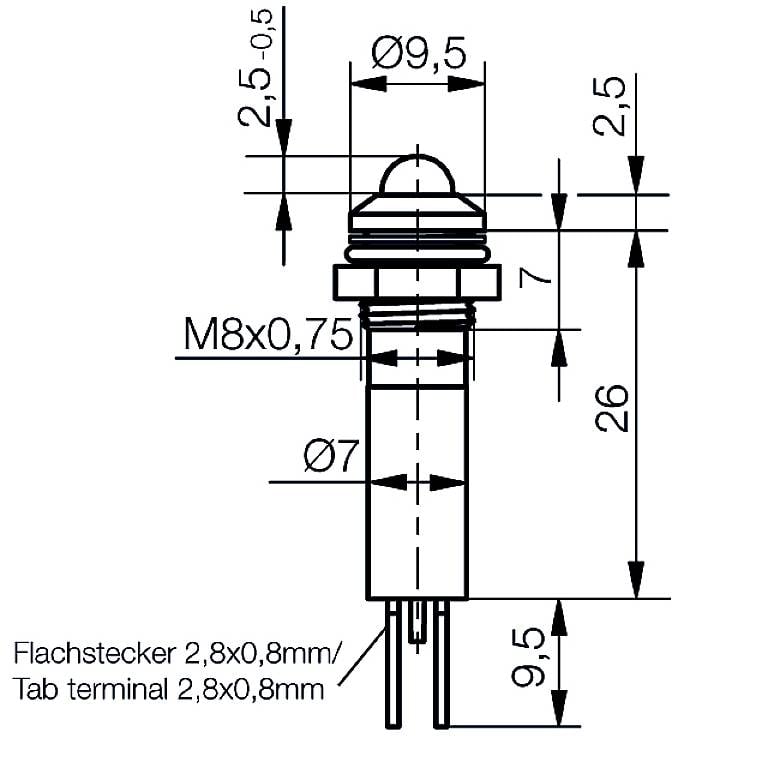

Figure of a technical diagram of a flat plug with dimensions: Total length 26 mm, diameter 9.5 mm, thread M8x0.75.

1/2

Datasheet (PDF)

47 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€

Report legal concerns

Technical specifications

Packaging type: Tray

Factory colour: Blue

Operating voltage: 24 V DC/AC

Operating voltage: 24 - 28 V DC/AC

Min. operating voltage: 24 V DC/AC

Max. operating voltage: 28 V DC/AC

Operating current: 16 mA

Recess diameter: 8 mm

Head Ø: 9.5 mm

Case colour: Chrome (glossy)

Material: Brass

Material properties: chrome plated

: IP67

Connection: Type C CEE 7/16 plug 2.8 mm

Dim

Min. temperature: -30 °C

Max. temperature: 70 °C

RoHS-compliant

: n.rel.

Content: 1 pc(s)

Colour temperature range

Moisture Sensitiviy Level (MSL): 1

Product type: LED indicator light

Documents & Downloads

Datasheet

Datasheet 2435581 Signal Construct SWQU08424A LED indicator light Blue 24 V DC/AC Tray

User & Safety Instructions

User & Safety Instructions 2435581 Signal Construct SWQU08424A LED indicator light Blue 24 V DC/AC Tray

Description

LED signal lamp with external reflector for
Front panel installation. Protected on the front
According to IP67 when installed.
Delivery scope
Lamp with lower ring, sealing washer
And fixing nut Housing: Metal housing bright chrome-plated
With thread M8x0.75mm
Mounting type: Screw fixing
Tightening torque: 40 CN·m
Installation opening: Ø8+0.2 mm
Protection class according to DIN EN 60529: IP67 (front side)
Connection: 2x flat plug 2.8x0.8 mm
Soldering temperature 250°/3 sec.
OPERATING VOLTAGE 12/14V DC (AC)
24/28V DC (AC)
The current consumption/brightness for alternating
voltage is about 50% compared to DC operation
reduced.

This text is machine translated.
