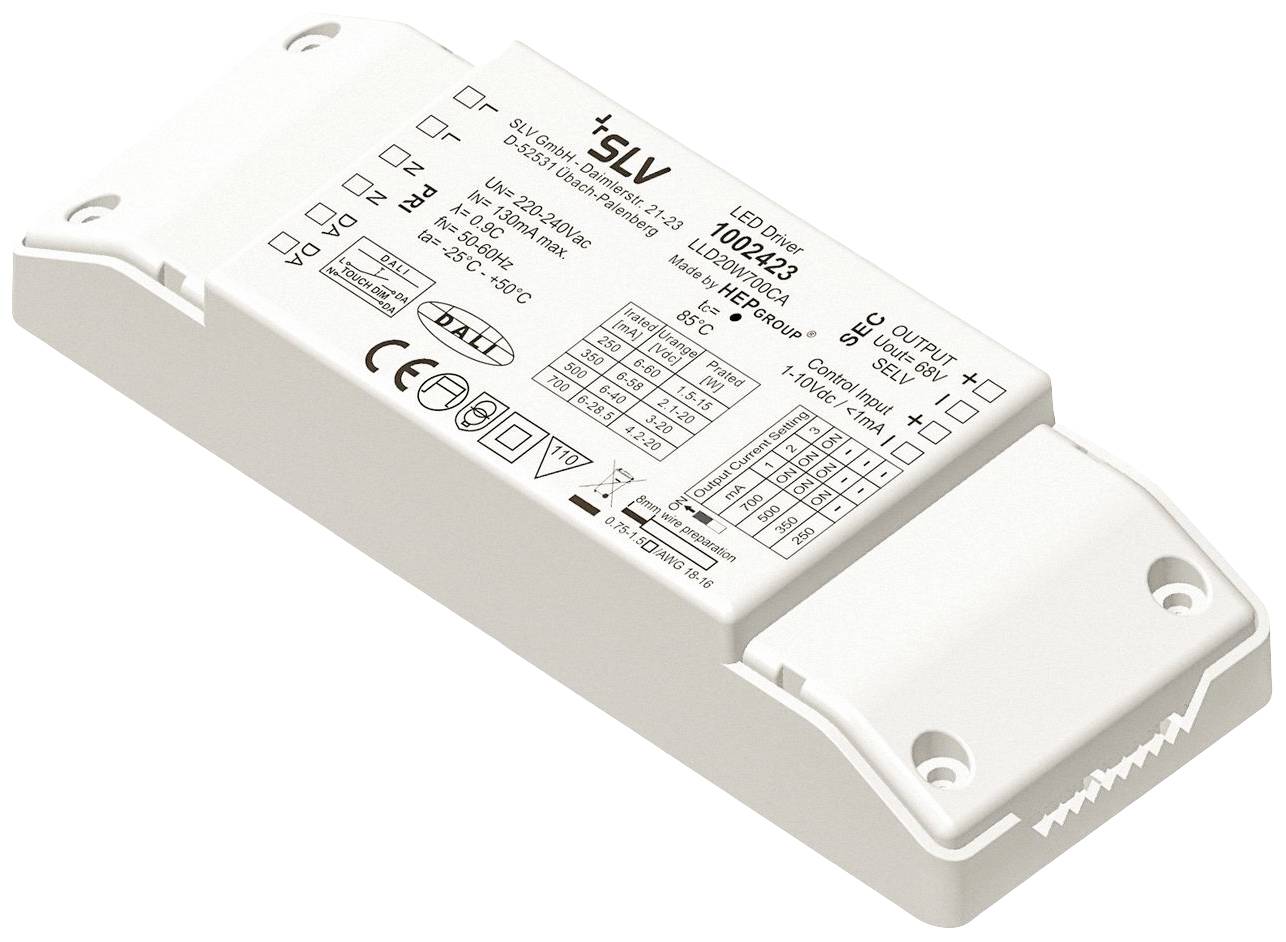

SLV 1002423 LED driver 20 W 250 - 700 mA dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
1002423
- 250 - 700 mA
Technical specifications
- Output current 250 / 350 / 500 / 700 mA
- Product type
LED driver
- Dim
(W x H) 52 mm x 28 mm
- Factory colour
White
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
250 mA
- Power range
20 W (max)
- Width
52 mm
- Height
28 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2520527 SLV 1002423 LED driver 20 W 250 - 700 mA dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2520527 SLV 1002423 LED driver 20 W 250 - 700 mA dimmable 1 pc(s)
Description
DALI/1-10V dimmable LED driver for MEDO 300
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
