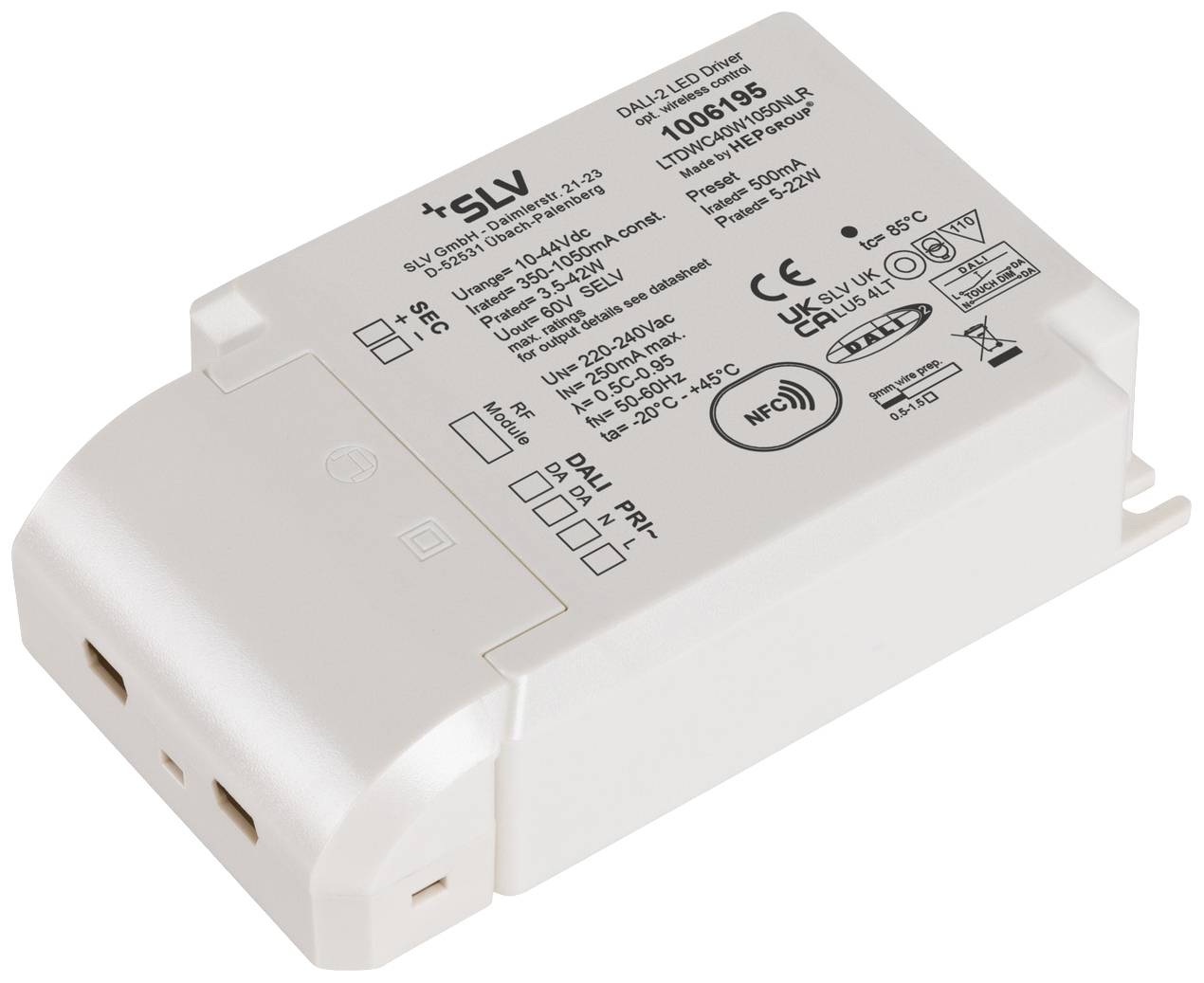

SLV 1006195 LED driver Constant current 40 W 500 mA 10 - 44 V DALI, dimmable 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED driver, 40W 500mA DALI dimmable with RF interface LED driver white DALI
- Constant current
- 10 - 44 V
- 500 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
250 mA
- Dim
(L x W x H) 123 x 79 x 30 mm
- Factory colour
White
- Output voltage (max.)
44 V
- Output voltage (min.)
10 V
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Operating voltage
230 V
- Protection class
II
- LED driver features
DALI
dimmable
IP20
- Max. power
40 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Inputs
1
- Weight
195 g
- Power (min.)
3.5 W
- Power range
3.5 up to 40 W
- Width
79 mm
- Height
30 mm
- Length
123 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
- Material
Polycarbonate (PC)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2839203 SLV 1006195 LED driver Constant current 40 W 500 mA 10 - 44 V DALI, dimmable 1 pc(s)
Datasheet 2839203 SLV 1006195 LED driver Constant current 40 W 500 mA 10 - 44 V DALI, dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2839203 SLV 1006195 LED driver Constant current 40 W 500 mA 10 - 44 V DALI, dimmable 1 pc(s)
Conformity certificate
Conformity certificate 2839203 SLV 1006195 LED driver Constant current 40 W 500 mA 10 - 44 V DALI, dimmable 1 pc(s)
Description
Dimmable DALI LED driver with 500mA constant current and a power of 40 W including RF interface. The LEDs must be connected in series connection.
This text is machine translated.
This text is machine translated.
Scope of delivery
- LED driver;
- User manual.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
