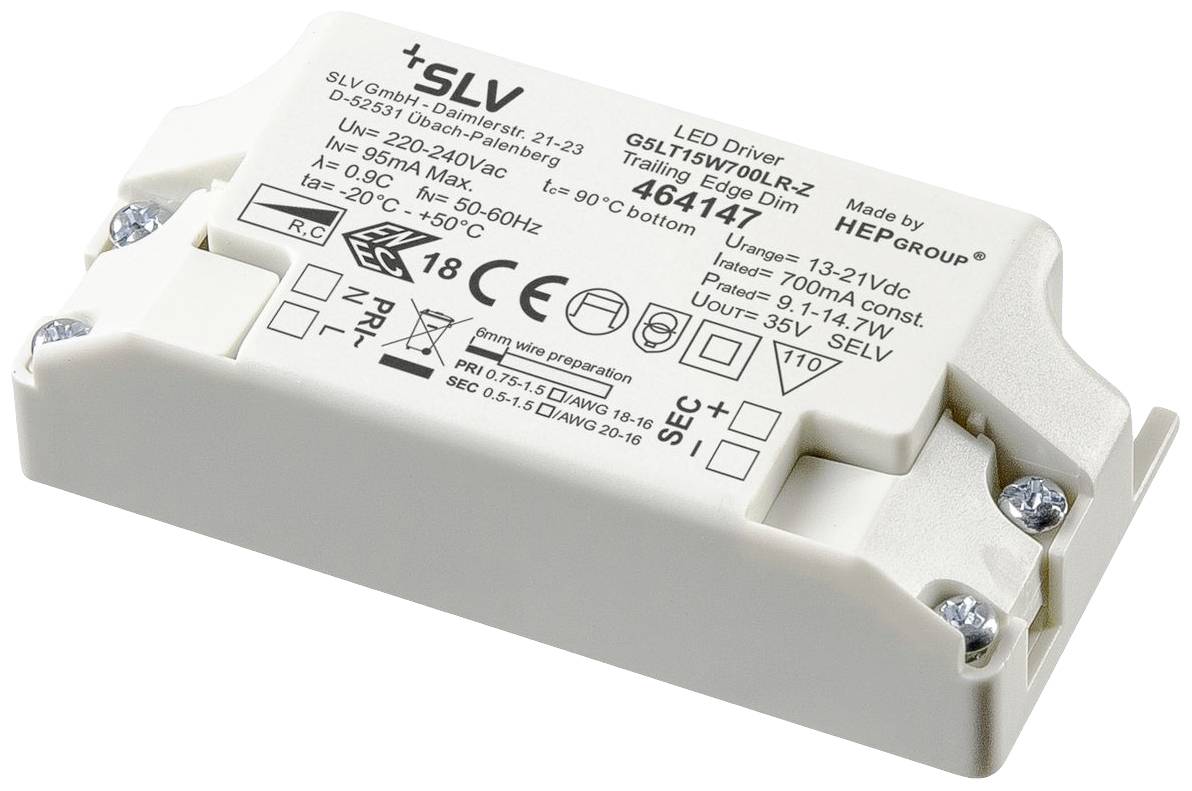

SLV 464147 LED driver Constant current 14.7 W 700 mA dimmable
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED driver, 14.7W 700mA dimmable
- Constant current
- 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(W x H) 41 mm x 22 mm
- Factory colour
White
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
14.7 W
- No. of outputs
1 x
- No. of inputs
1 x
- Power range
14.7 W (max)
- Width
41 mm
- Height
22 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2520518 SLV 464147 LED driver Constant current 14.7 W 700 mA dimmable
User & Safety Instructions
User & Safety Instructions 2520518 SLV 464147 LED driver Constant current 14.7 W 700 mA dimmable
Description
Dimmable LED driver with a power of 14.7W at a constant current of 700mA.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
