Socket enclosure 09 30 016 1260 09300161260 HARTING 1 pc(s)
Product type
Socket enclosure
Series
Han® B
Thread size
PG21
Case material
Aluminium, die cast
Type
09 30 016 1260
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Locking type: Transverse brace (bush-side)
- Temperature limit: -40 ... +125 °C
- Net weight: 255 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Protection class according to IEC 60529: IP65
- Housing description: With plastic cap
- Design size 16 B
- Approvals DNV GL
- Casing type: Base casing
- Design: Side cable input
- Cable input 2x PG 21
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: Low built
- Protection class according to UL 50 / UL 50E:4;4X;12
- Type
09 30 016 1260
- Product type
Socket enclosure
- Series
Han® B
- Manufacturer part #
09300161260
- Features
low type
- Thread size
PG21
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Brackets
2
- Content
1 pc(s)
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
FALSE
TRUE
Grey
Double locking levers
2
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
TRUE
Socket case
IP65
Sideways
Cover
PG
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3006330 Socket enclosure 09 30 016 1260 09300161260 HARTING 1 pc(s)
Datasheet 3006330 Socket enclosure 09 30 016 1260 09300161260 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006330 Socket enclosure 09 30 016 1260 09300161260 HARTING 1 pc(s)
Description

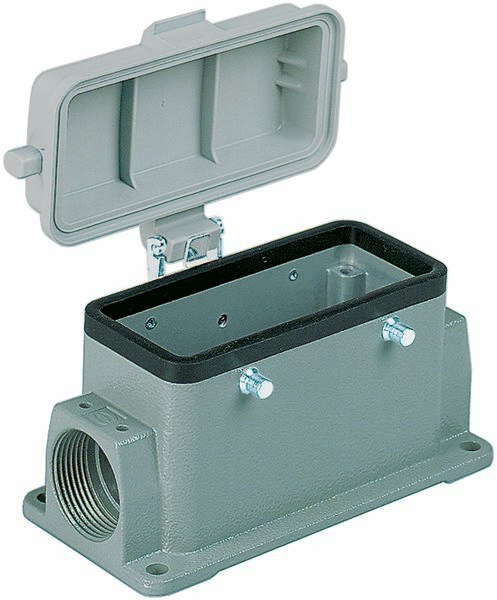

Socket housing, with plastic cap, size: 16 B, low profile, transverse bow (nozzle-end), lateral cable input, 2x PG 21
