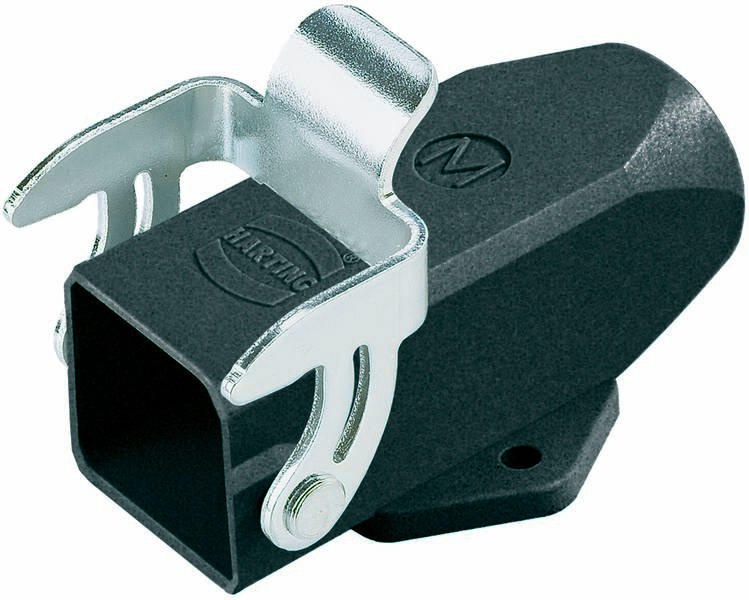

Socket enclosure 19 20 003 1257 19200031257 HARTING 1 pc(s)
Product type
Socket enclosure
Series
Han® A
Thread size
M20
Case material
Diecast zinc
Type
19 20 003 1257
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 83 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Standard casing for industrial applications
- Material locking: Steel
- Protection class according to IEC 60529: IP44;IP65 with sealing screw;IP67 with sealing screw
- Housing description: With closed bottom
- Design size 3 A
- Approvals DNV GL
- Casing type: Base casing
- Design: Straight cable input
- Cable input 1x M20
- Housing series: HAN A®
- Material housing: Zinc-Druckguss
- Surface of housing: Powder-coated
- Colour of housing: Black
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E: 12
- Surface locking: Galvanised
- Type
19 20 003 1257
- Product type
Socket enclosure
- Series
Han® A
- Manufacturer part #
19200031257
- Features
+ solid bottom
- Thread size
M20
- Type
Straight cable input
- Case material
Diecast zinc
- Series
Han A®
- Content
1 pc(s)
IP44
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Black
Single locking lever
1
FALSE
FALSE
Zinc
Powder coating
-40-125 °C
Other
FALSE
FALSE
Socket case
IP44
Above
Base unit
Metric
Documents & Downloads
Datasheet
Datasheet 3006168 Socket enclosure 19 20 003 1257 19200031257 HARTING 1 pc(s)
Datasheet 3006168 Socket enclosure 19 20 003 1257 19200031257 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3006168 Socket enclosure 19 20 003 1257 19200031257 HARTING 1 pc(s)
Description
Housing base, with enclosed base, size: 3 A, longitudinal rail, steel, straight cable input, 1x M20, material housing: zinc die-cast
