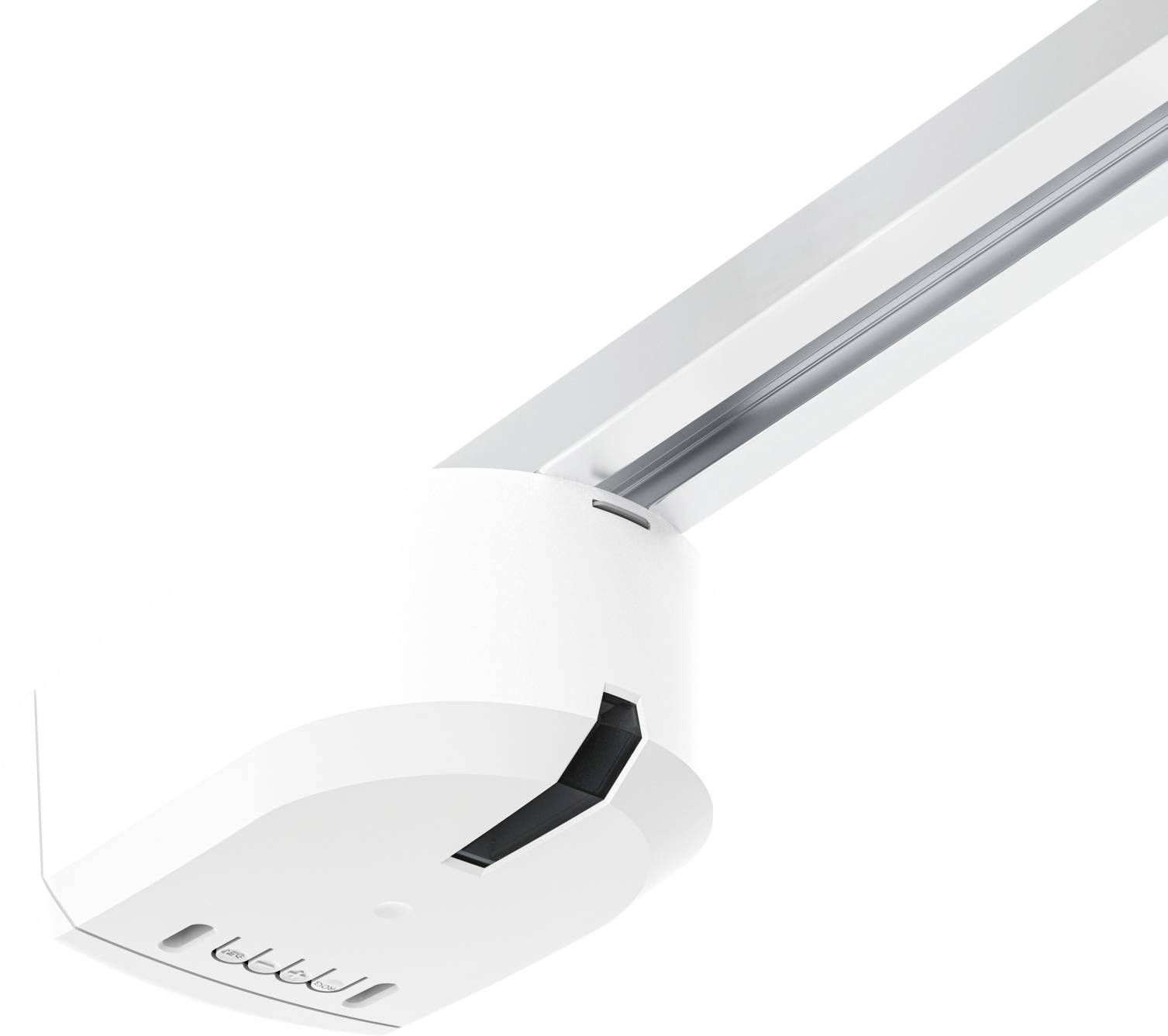

Somfy 1246293 Garage door opener
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 329.00 / piece)
€ 329.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Universal garage door motor 7m² IO
- Garage door drive; Universal; 7m2; Plug&Play; Connection to Smart home system Tahoma
Technical specifications
- Weight 13.5
- Weight unit KG
- Weight reference quantity 1
- Nominal voltage 230 V
- Max. Door/gate width 7 mm
- Max. Tensile force 600 N
- With track system Yes
- With indoor button yes
- Suitable for gates with low-fall fitting yes
- Soft run yes
- Gate display yes
- Defined direction control yes
- Red light connection yes
- Number of safety inputs 3
- Potential-free relay output yes
- Frequency of the radio receiver 868 MHz
- With hand-held transmitter yes
- Max. Door/gate weight 100 kg
- With illumination yes
- Compatible with Google Assistant yes
- Compatible with Amazon Alexa yes
- Short description of IO-radio drive for small and light garage doors (up to 7 m²)
- E-class 11.0 - class 27144102
- UNSPSC 14.0801 - class 26101100
- Product type
Garage door opener
- Hub
Not required
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3815044 Somfy 1246293 Garage door opener
User & Safety Instructions
User & Safety Instructions 3815044 Somfy 1246293 Garage door opener
Description
Quick and easy installation in 90 sec: Plug & play, only 4 buttons for setting. The gate can be easily integrated into the home automation system via the Smart home system thanks to the wireless connection. Available installation tools (Help Me by Somfy), parameter setting (Tahoma Pro APP), and remote maintenance (Serve-e-Go). Optional accessories: Emergency power battery, warning light, slip door contact, video door entry system and much more. Door control via Smartphone or voice commands possible. Tracking of the gate position in real time possible via the Tahoma APP. Drive with less than 0.5 W Standby consumption. Optional solar powered in conjunction with the solar kit (art. no. 9015859). Automatic closing function (time- or impulse-controlled) as well as ventilation position and pedestrian opening (manual, time- or impulse-controlled).
