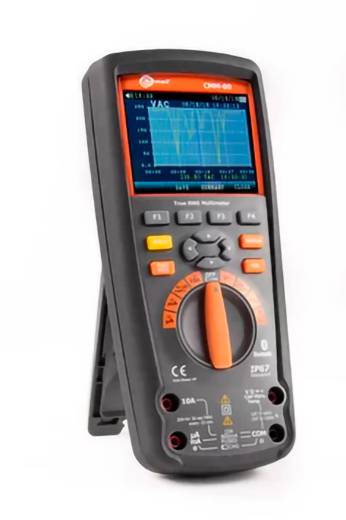

Sonel CMM-60 Digital multimeter and PSU Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 50000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CMM-60
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.001 V
- Product type
Digital multimeter and PSU
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.01 µA
- Amperage reading range AC (max.)
10 A
- Temperature
-50 °C to +1000 °C. °C
- Basic accuracy
0.025 %
- Measurement type (details)
True RMS
- Frequency range
10 MHz
- Interfaces
Bluetooth®
- Power supply (details)
Rechargeable battery operation (integrated charging function)
- Height
58 mm
- Width
97 mm
- Length
220 mm
- Weight
605 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
CMM-60
- Display
Digital
- Display (counts)
50000
- Dim
(L x W x H) 220 x 97 x 58 mm
- Features
Waterproof (IP67)
IP67
Documents & Downloads
Datasheet
Datasheet 3763614 Sonel CMM-60 Digital multimeter and PSU Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 50000
User & Safety Instructions
User & Safety Instructions 3763614 Sonel CMM-60 Digital multimeter and PSU Digital Waterproof (IP67) CAT III 1000 V, CAT IV 600 V Display (counts): 50000
Description
Scope of delivery
- Special charger and mains adapter; the rechargeable battery can be charged directly in the device.
