Name: SPAX 0191010400403 Countersunk screw 4 mm 40 mm T-Star Plus Steel 200 pc(s)
Brand: SPAX
SKU: 3742528
Availability: InStock

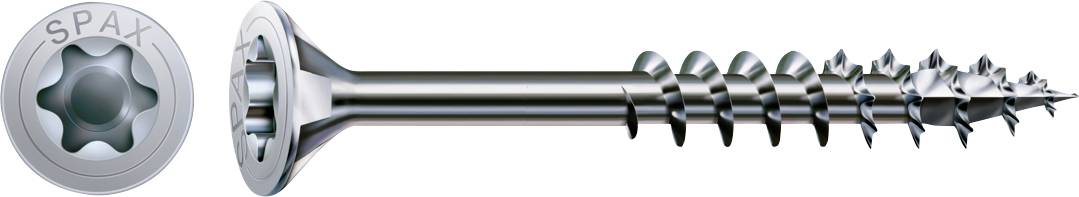

A SPAX screw with a star-shaped drive head and threaded shaft, shown in close-up on a white background.

A metal screw anchor with a wide head and long threaded shaft, shown in side view on a white background.

SPAX 0191010400403 Countersunk screw 4 mm 40 mm T-Star Plus Steel 200 pc(s)-2

Technical drawing of a tapered screw or drill bit, labeled 40 mm overall length and 23 mm threaded length, with a side arrow indicating dimensions.

Cross-section of a metal valve or connector with translucent green fluid flowing downward through a central channel, showing internal cavities and a top fitting labeled 'SPAX'.<br>

Close-up of a metallic turbine or industrial rotor with silver blades and curved housing, shown in abstract detail.<br>

Green SPAX screw box labeled 4x40, 200 pieces, Made in Germany, with screw diagram and product details on the front.

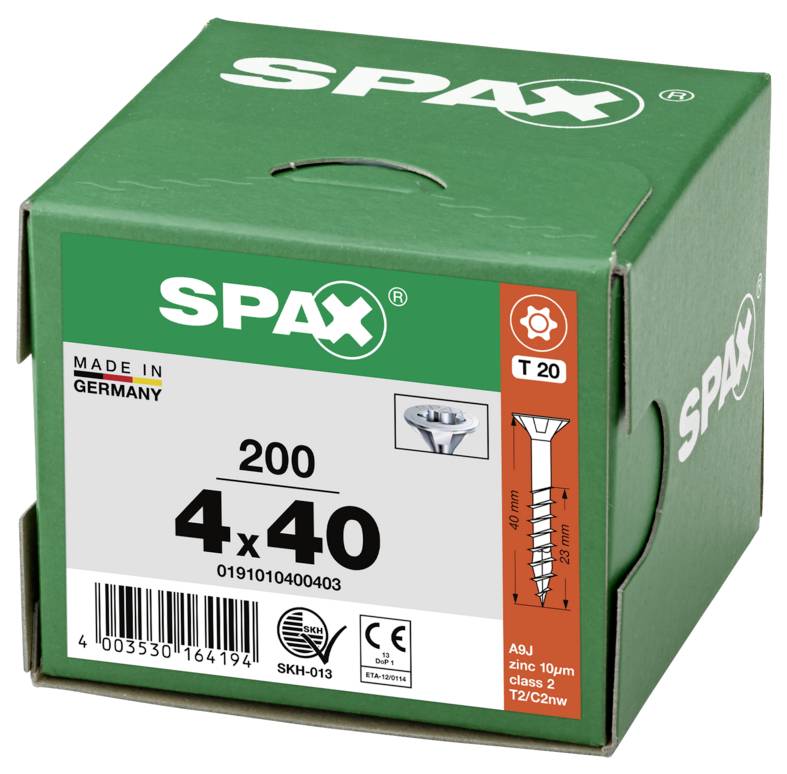

Green SPAX screw box labeled '200 4x40', made in Germany, with T20 drive and screw diagram on the front.

Box of SPAX screws labeled '200 4x40', made in Germany, with screw size diagram and barcode on the package.

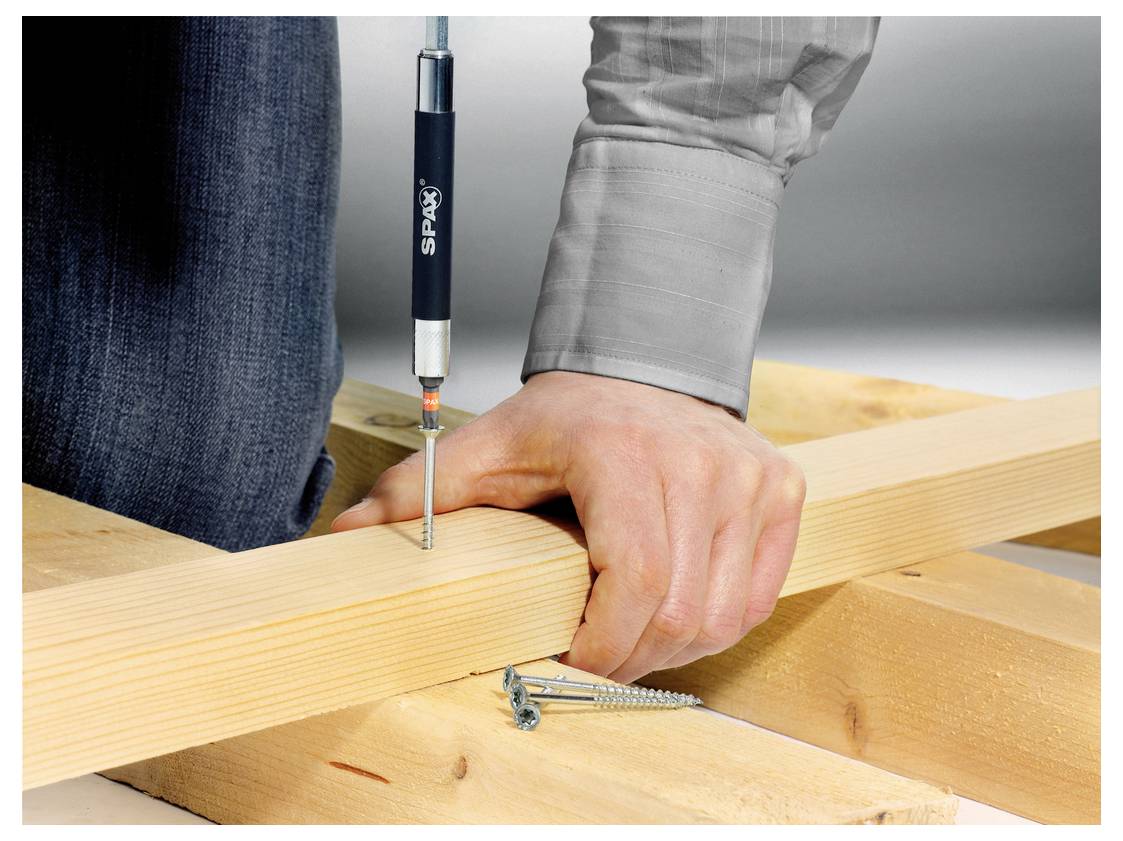

Close-up of a person driving a screw into a wooden beam with a power drill during carpentry assembly.

Metal auger drill bit with sharp spiral blades on a white background.

1/11

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 200 pc(s))

Set(s)

Total (€ 7.49 / piece)

€ 7.49

incl. VAT

Only 10 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

SPAX SENKHEAD T-STAR PLUS T20 PART THREAD WIROX 200PCS

Multifunctional applications indoors
Fast and safe processing with low application of force (more fittings with one battery charging)
Can be used everywhere
Reduces effectively the splice of wood material even with small edge distances

Technical specifications

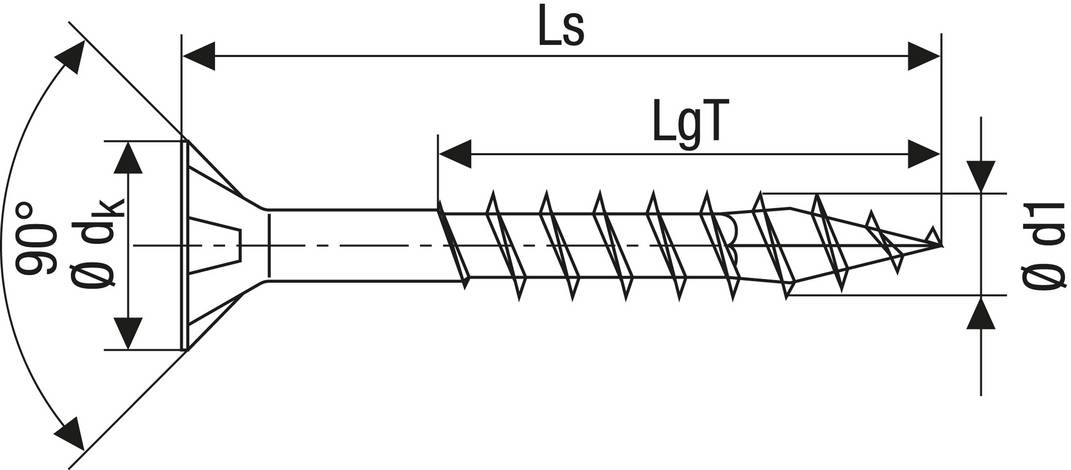

Head diameter: 8 mm
Head base: MULTI head
Head angle: 90º
Blade size T20
Thread shape: Partial thread

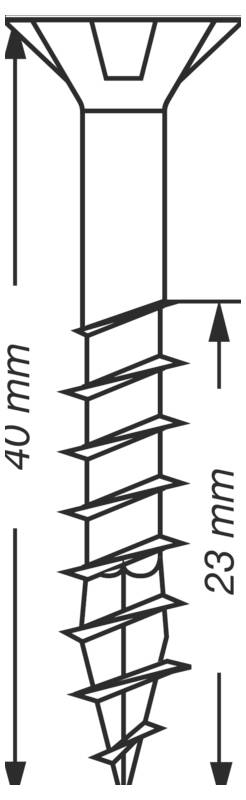

Thread length: 23 mm
Surface: WIROX
Anti-corrosion code A9J
Tip: 4CUT
MIG certificate: Yes
MPA certificate: Yes
Certificate SKH: Yes
CE 12/0114 certificate: Yes
ETA-12/0114 Annex No.: 19

Product type: Countersunk screw

Drive: T-Star Plus

Material: Steel

(Ø): 4 mm

Length: 40 mm

Head shape: Countersunk

Dim: (Ø x L) 4 mm x 40 mm

Content: 200 pc(s)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

(Ø)

Length

Product type

SPAX 0191010400403 Countersunk screw 4 mm 40 mm T-Star Plus Steel 200 pc(s)

Item no:3742528

Fast track dispatch on Thu 29 Oct

10 Set(s)Conrad Electronic

This article

4 mm

40 mm

Countersunk screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

SPAX 0191010300305 R 88091 Senkkopf/T-STAR TG Wood screw 3 mm 30 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:2634568

Fast track dispatch on Thu 29 Oct

5 Set(s)Conrad Electronic

3 mm

30 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

SPAX 0191010300355 R 88091 Senkkopf/T-STAR TG Wood screw 3 mm 35 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:2634575

Available soon

Conrad Electronic

3 mm

35 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

SPAX 0191010300405 R 88091 Senkkopf/T-STAR TG Wood screw 3 mm 40 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:2634551

Fast track dispatch on Thu 29 Oct

8 Set(s)Conrad Electronic

3 mm

40 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

SPAX 0191010350355 R 88091 Senkkopf/T-STAR TG Wood screw 3.5 mm 35 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:3065575

Fast track dispatch on Thu 29 Oct

8 Set(s)Conrad Electronic

3.5 mm

35 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

SPAX 0191010350403 R 88091 Senkkopf/T-STAR TG Wood screw 3.5 mm 40 mm T-Star Plus Steel WIROX 200 pc(s)

Item no:2634443

Fast track dispatch on Thu 29 Oct

17 Set(s)Conrad Electronic

3.5 mm

40 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

SPAX 0191010350405 R 88091 Senkkopf/T-STAR TG Wood screw 3.5 mm 40 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:3065576

Fast track dispatch on Thu 29 Oct

1 Set(s)Conrad Electronic

3.5 mm

40 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

SPAX 0191010350455 R 88091 Senkkopf/T-STAR TG Wood screw 3.5 mm 45 mm T-Star Plus Steel WIROX 1000 pc(s)

Item no:3065577

Fast track dispatch on Thu 29 Oct

5 Set(s)Conrad Electronic

3.5 mm

45 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

SPAX 0191010350505 R 88091 Senkkopf/T-STAR TG Wood screw 3.5 mm 50 mm T-Star Plus Steel WIROX 500 pc(s)

Item no:3065578

Fast track dispatch on Thu 29 Oct

12 Set(s)Conrad Electronic

3.5 mm

50 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

SPAX 0191010400303 R 88091 Senkkopf/T-STAR TG Wood screw 4 mm 30 mm T-Star Plus Steel WIROX 200 pc(s)

Item no:2634459

Fast track dispatch on Thu 29 Oct

46 Set(s)Conrad Electronic

4 mm

30 mm

Wood screw

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 7.49^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742528 SPAX 0191010400403 Countersunk screw 4 mm 40 mm T-Star Plus Steel 200 pc(s)

Description

The universal screw is the absolute all-rounder in the range of SPAX. It can be screwed in almost everything – for example, completely without pre-drilling in coniferous wood like spruce and pine wood as well as in the common wooden material plates (MDF, chipboard and OSB boards). Our universal screw plays its superiority mainly in the interior fittings and furniture construction area, but also on the outside it can be used well with the appropriate corrosion protection. Due to its special thread geometry, the screw-in resistance is much lower than with conventional screws, WAS not only protects your power and nerves, but also protects the battery of the inserted screwdriver. Splining of the wood in the proximity of the edges is reliably prevented. This means you can turn more screws per battery charge, and you don't have to worry about broken wooden ends.

This text is machine translated.

Features

Multifunctional applications indoors

Hints

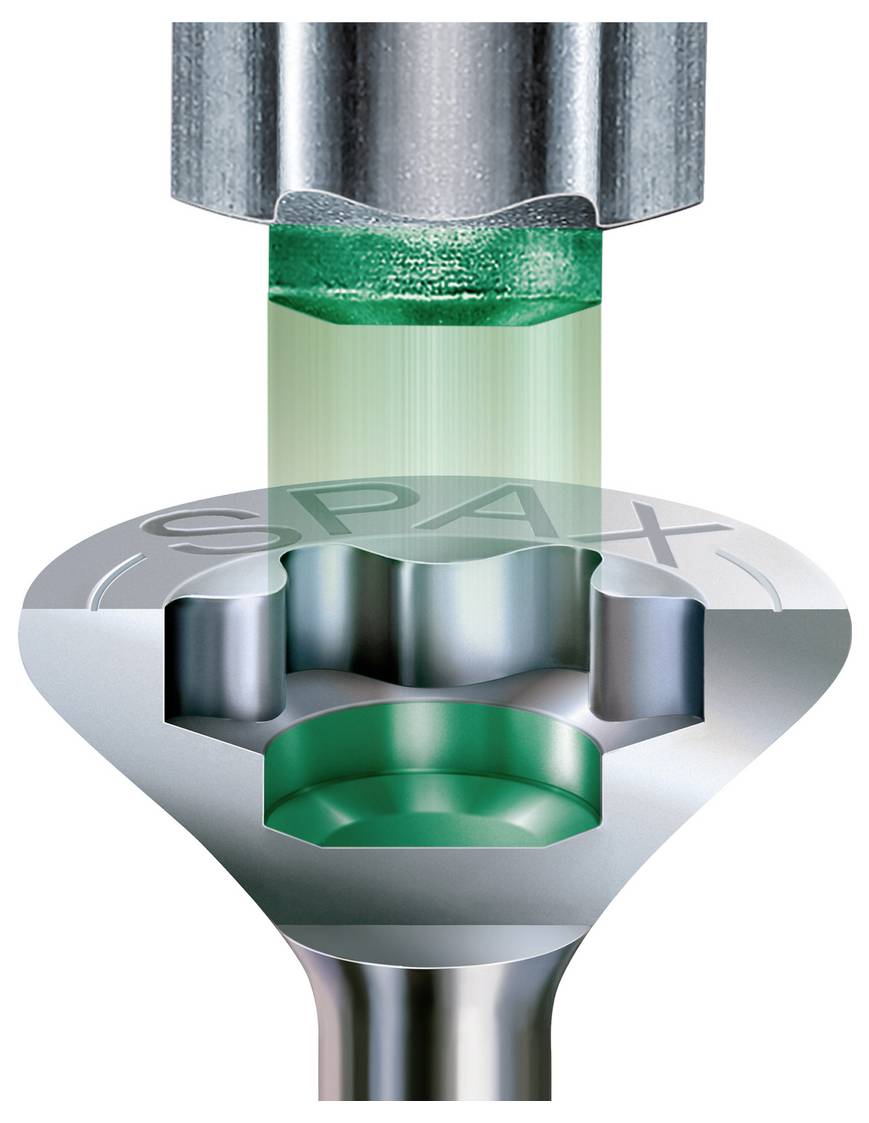

The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.

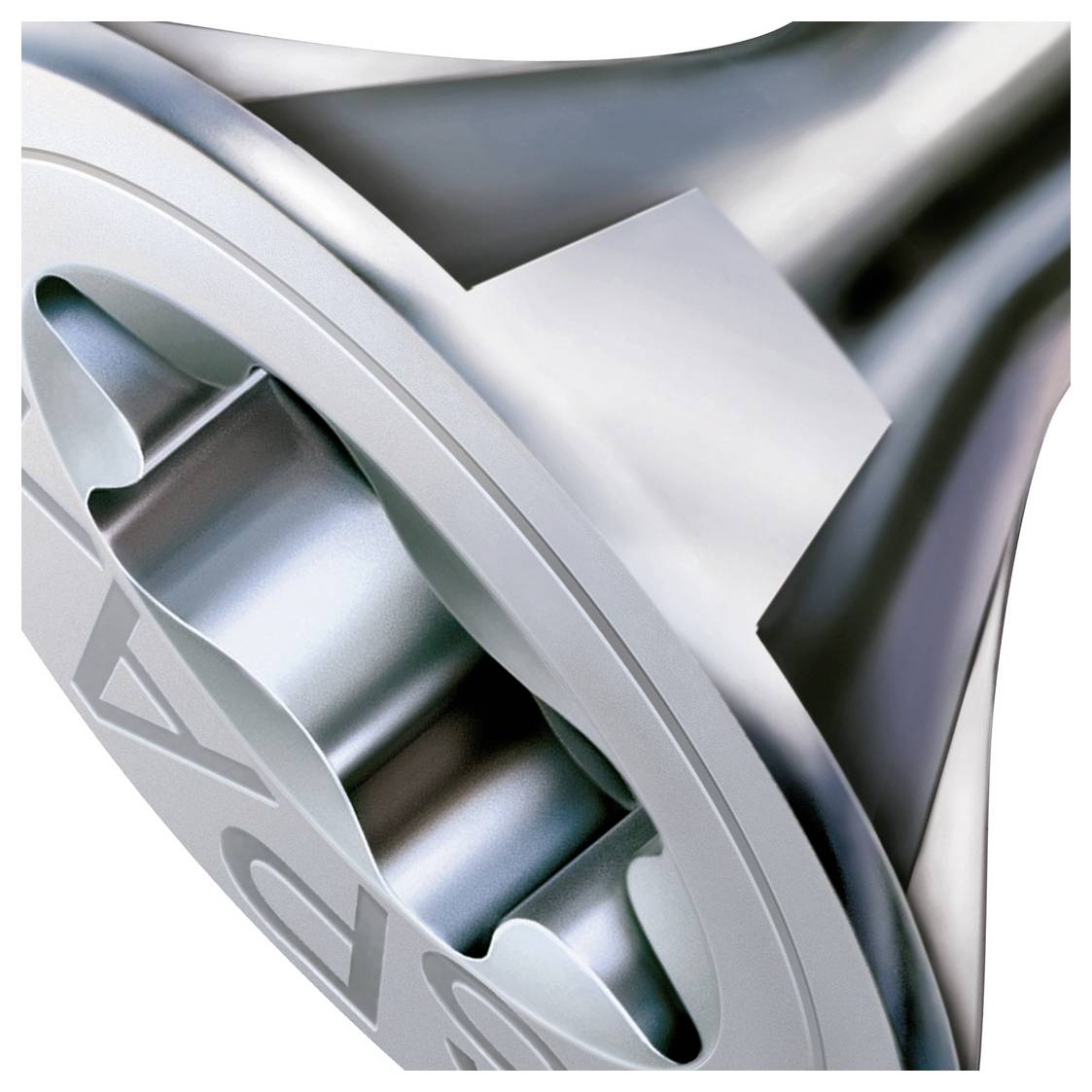

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

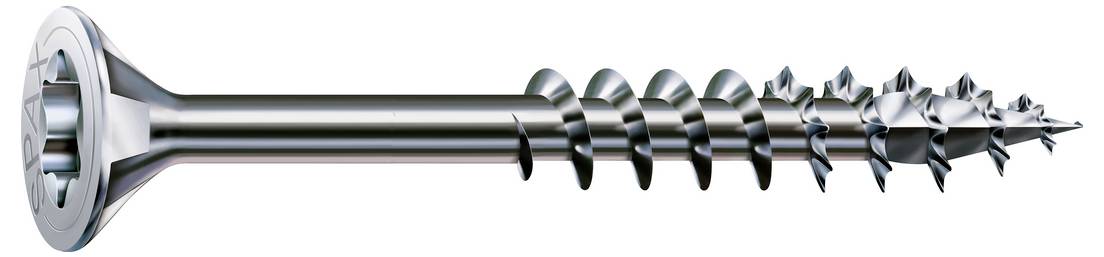

The screws with partial thread are extremely suitable for attaching thin components such as wood material plates, boards or boards to thicker components such as square timber or beams. The short thread screws into the thick component; the thread-free shaft remains in the attachment part. This gives rise to the maximum contact pressure between the two. The thread-free part should be at least equal to the thickness of the attachment part.

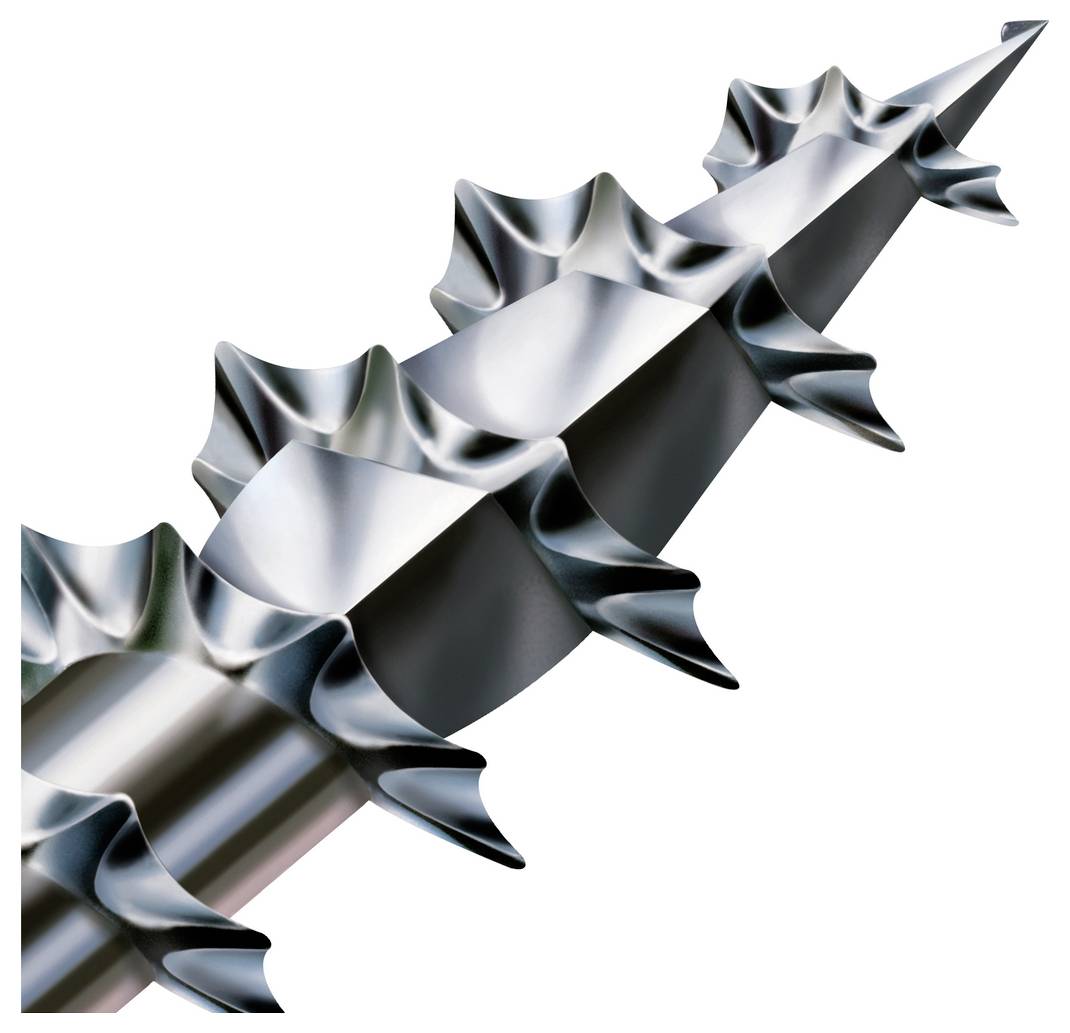

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.

With WIROX, SPAX has developed a coating that is far superior to zinc plating in terms of corrosion protection. With WIROX no chrome (VI) is used, the screws can be loaded just as well after years in the not directly weathered external area as well as environmentally friendly. WIROX screws are the first choice for all open buildings without direct weathering such as carports or pergoles, for direct weather stresses as with terraces we recommend our screws in the stainless steel version.
