Name: SPAX 0291010500605 Countersunk screw 5 mm 60 mm Pozidriv Steel 500 pc(s)
Brand: SPAX
SKU: 3742728
Availability: BackOrder

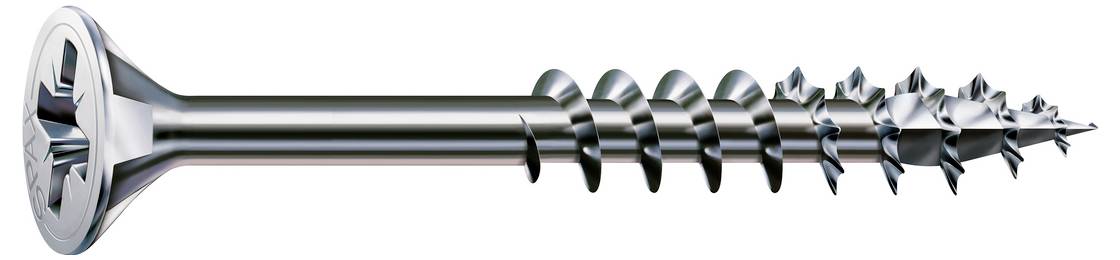

A shiny silver screw with a wide flat head, shown horizontally on a white background.

SPAX 0291010500605 Countersunk screw 5 mm 60 mm Pozidriv Steel 500 pc(s)-2

SPAX 0291010500605 Countersunk screw 5 mm 60 mm Pozidriv Steel 500 pc(s)-3

Close-up of a countersunk screw hole with a drill bit above it, showing a Phillips-style screw head labeled 'SPAX'.

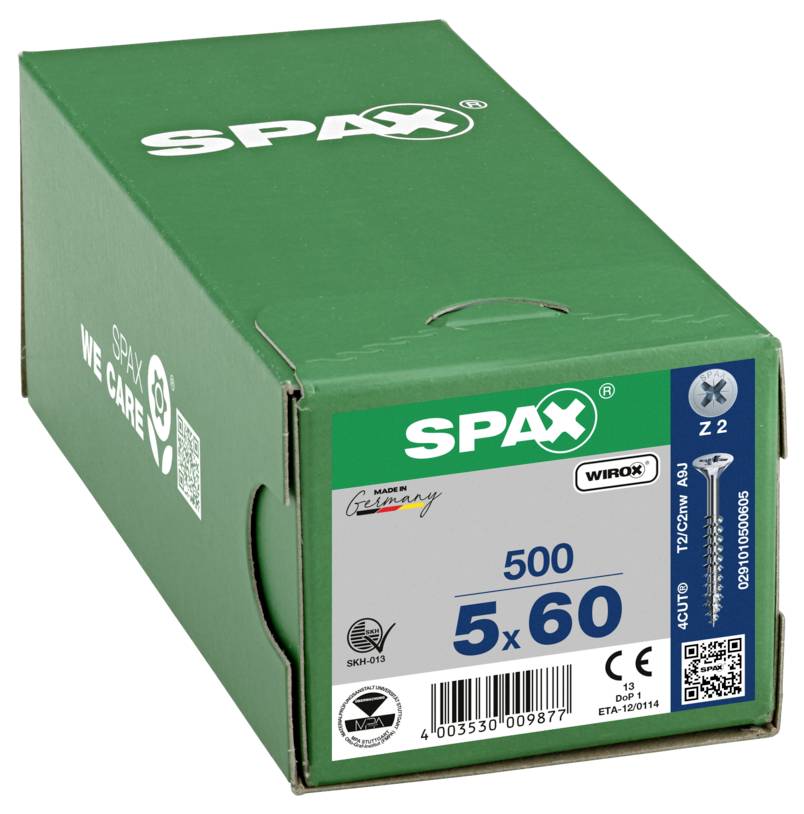

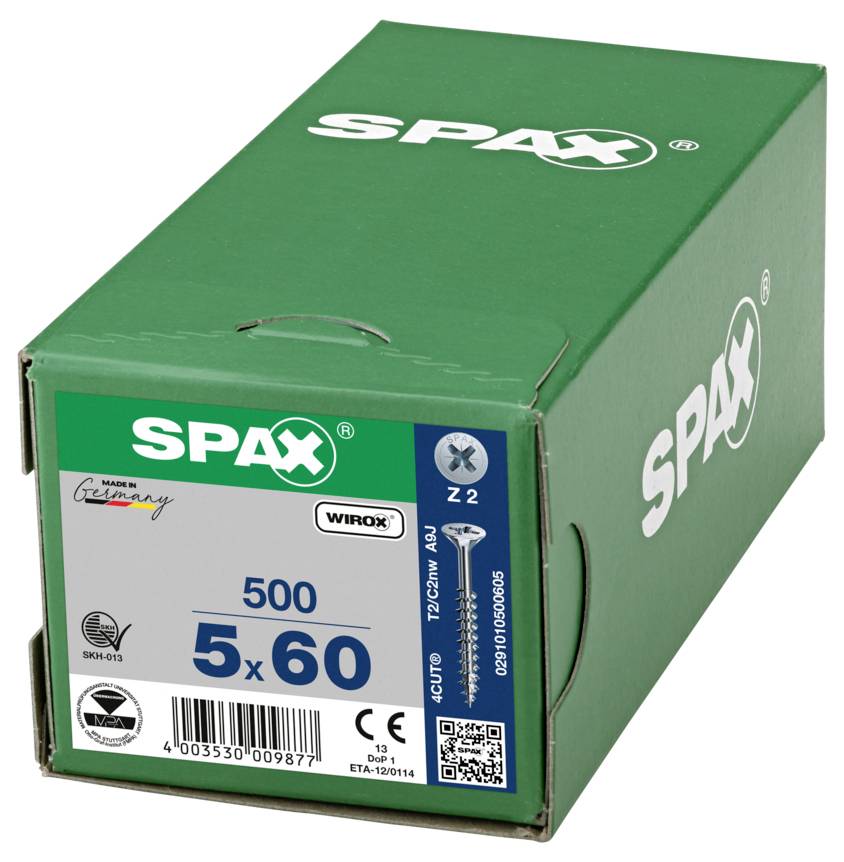

Green SPAX screw box labeled '500 5x60' with product details and barcode on the front.

SPAX 0291010500605 Countersunk screw 5 mm 60 mm Pozidriv Steel 500 pc(s)-7

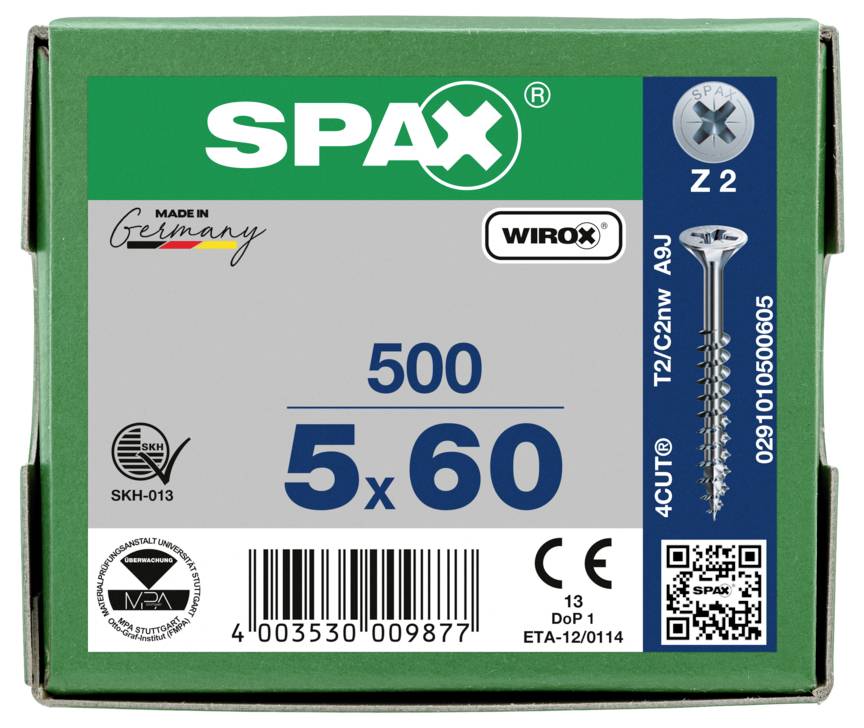

SPAX screw box label showing 500 screws, size 5 x 60, with product branding, barcode, and screw illustration.

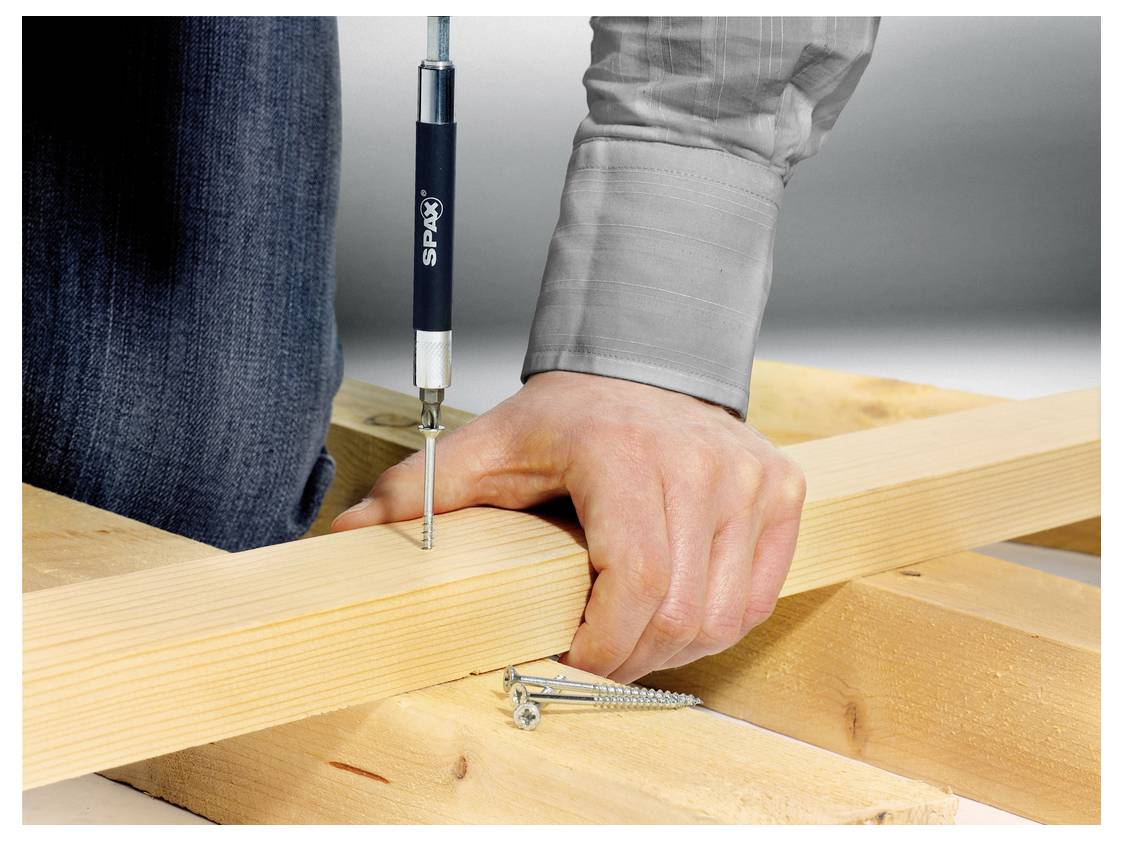

Close-up of a person using a SPAX screwdriver to drive a screw into a wooden beam while holding it in place during construction.

Close-up of a metal drill bit with spiral cutting flutes on a white background.

1/11

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SPAX SENKKOPF CROSS-HEAD Z2 PARTIAL THREAD WIROX 500ST

Multifunctional applications indoors
Fast and safe processing with low application of force (more fittings with one battery charging)
Can be used everywhere
Reduces effectively the splice of wood material even with small edge distances

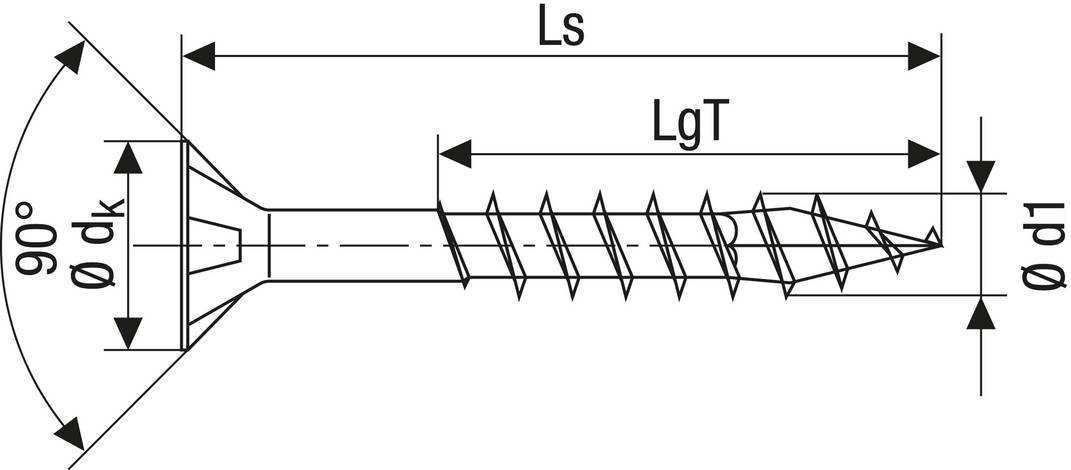

Technical specifications

Head diameter: 9.7 mm
Head base: MULTI head
Head angle: 90º
Blade size Z2
Thread shape: Partial thread

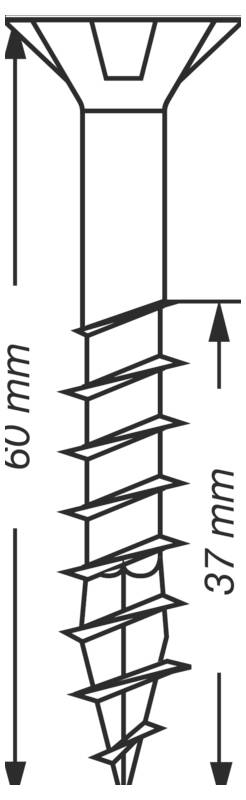

Thread length: 37 mm
Surface: WIROX
Anti-corrosion code A9J
Tip: 4CUT
MIG certificate: Yes
MPA certificate: Yes
Certificate SKH: Yes
CE 12/0114 certificate: Yes
ETA-12/0114 Annex No.: 19

Product type: Countersunk screw

Drive: Pozidriv

Material: Steel

(Ø): 5 mm

Length: 60 mm

Head shape: Countersunk

Dim: (Ø x L) 5 mm x 60 mm

Content: 500 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742728 SPAX 0291010500605 Countersunk screw 5 mm 60 mm Pozidriv Steel 500 pc(s)

Description

The universal screw is the absolute all-rounder in the range of SPAX. It can be screwed in almost everything – for example, completely without pre-drilling in coniferous wood like spruce and pine wood as well as in the common wooden material plates (MDF, chipboard and OSB boards). Our universal screw plays its superiority mainly in the interior fittings and furniture construction area, but also on the outside it can be used well with the appropriate corrosion protection. Due to its special thread geometry, the screw-in resistance is much lower than with conventional screws, WAS not only protects your power and nerves, but also protects the battery of the inserted screwdriver. Splining of the wood in the proximity of the edges is reliably prevented. This means you can turn more screws per battery charge, and you don't have to worry about broken wooden ends.

This text is machine translated.

Features

Multifunctional applications indoors

Hints

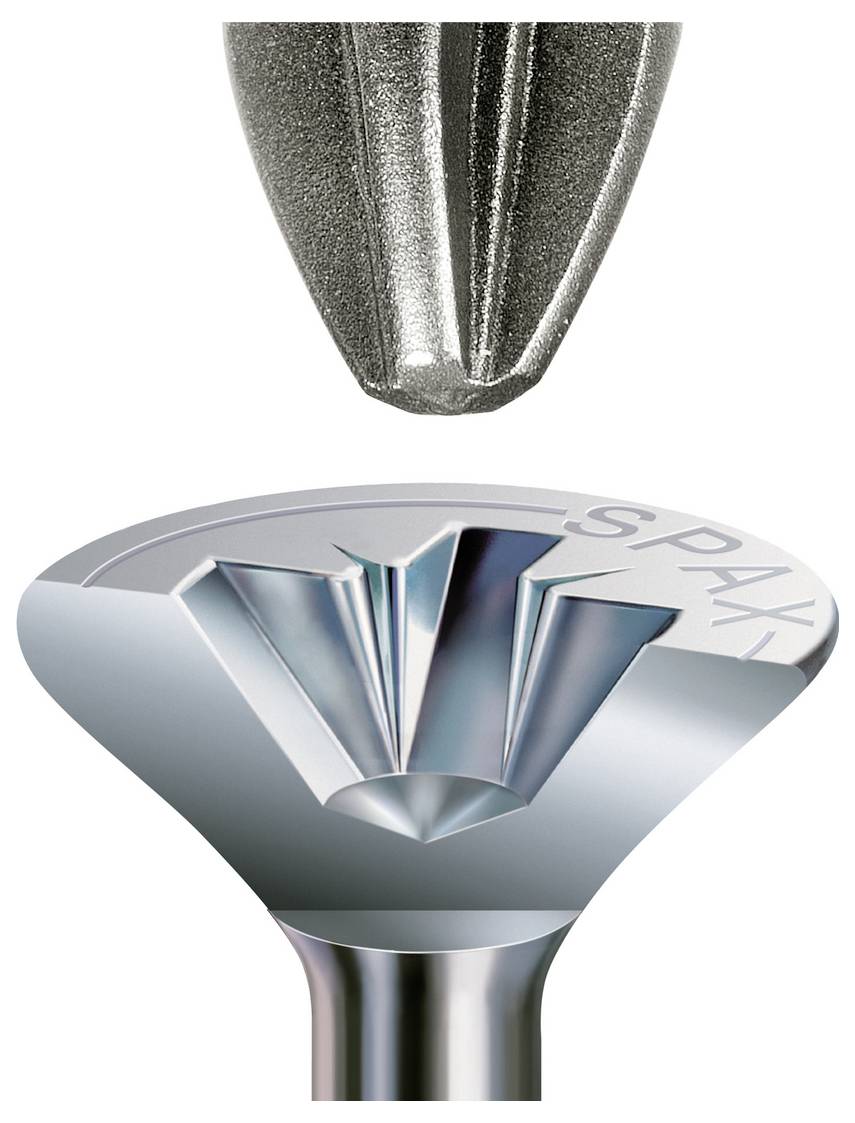

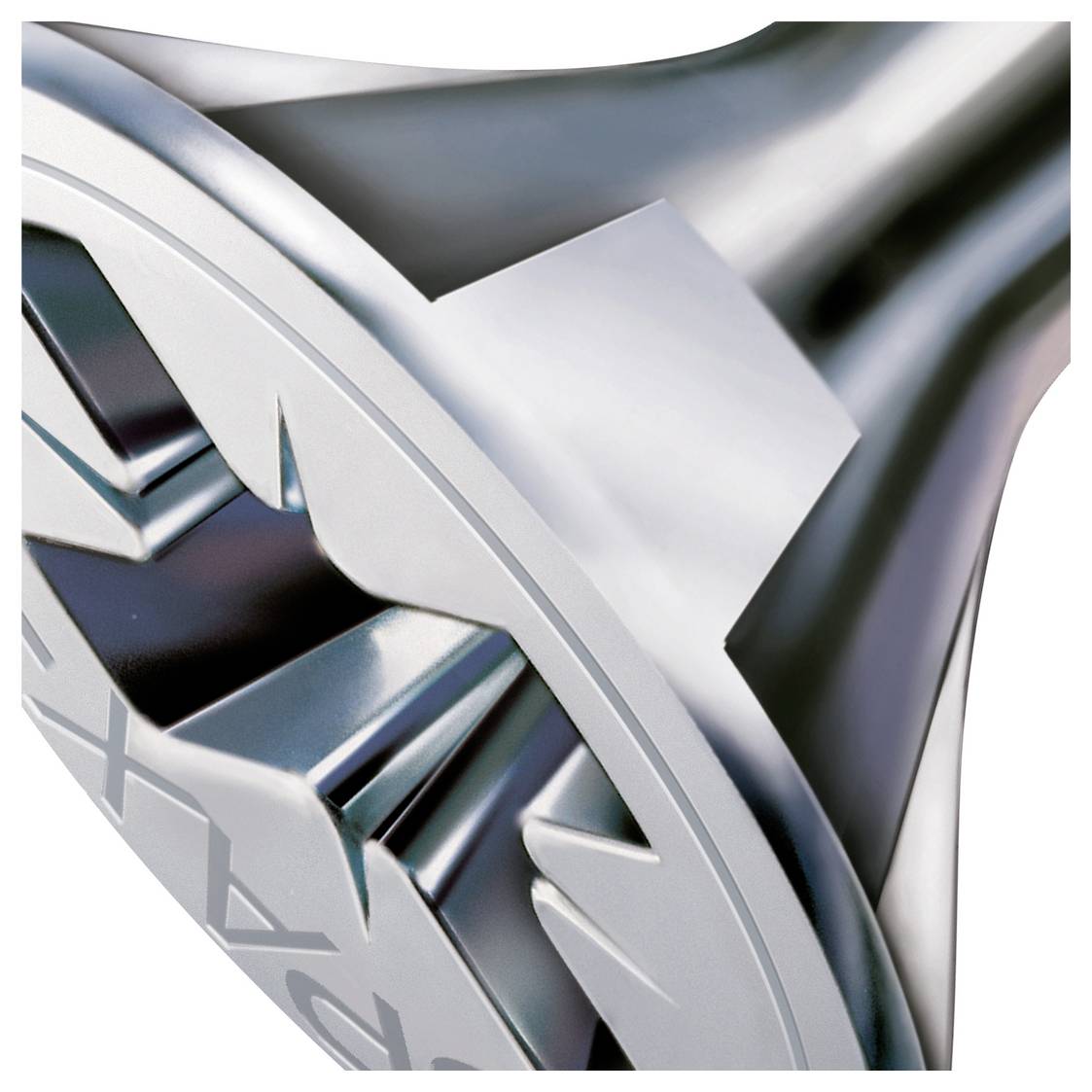

The Force Attack Cross Head Z is a further development of the simple cross-force attack by the company Philips SCREW COMPANY. The difference is that the four edges of the screwdriver blade do not taper toward the tip. This increases the lateral hold for the bit and reduces the cam-out effect. This is the result of conventional cross-head power attacks by rejuvenation, because the torque of the cordless screwdriver pushes the screwdriver bit upwards.

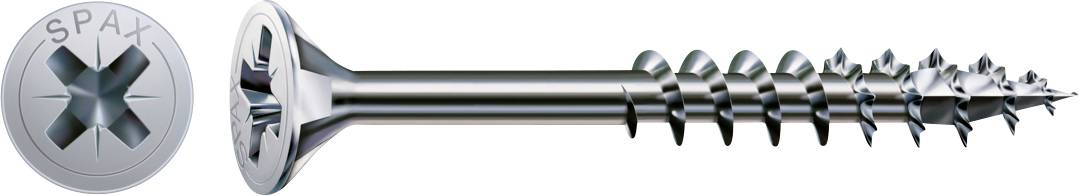

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

The screws with partial thread are extremely suitable for attaching thin components such as wood material plates, boards or boards to thicker components such as square timber or beams. The short thread screws into the thick component; the thread-free shaft remains in the attachment part. This gives rise to the maximum contact pressure between the two. The thread-free part should be at least equal to the thickness of the attachment part.

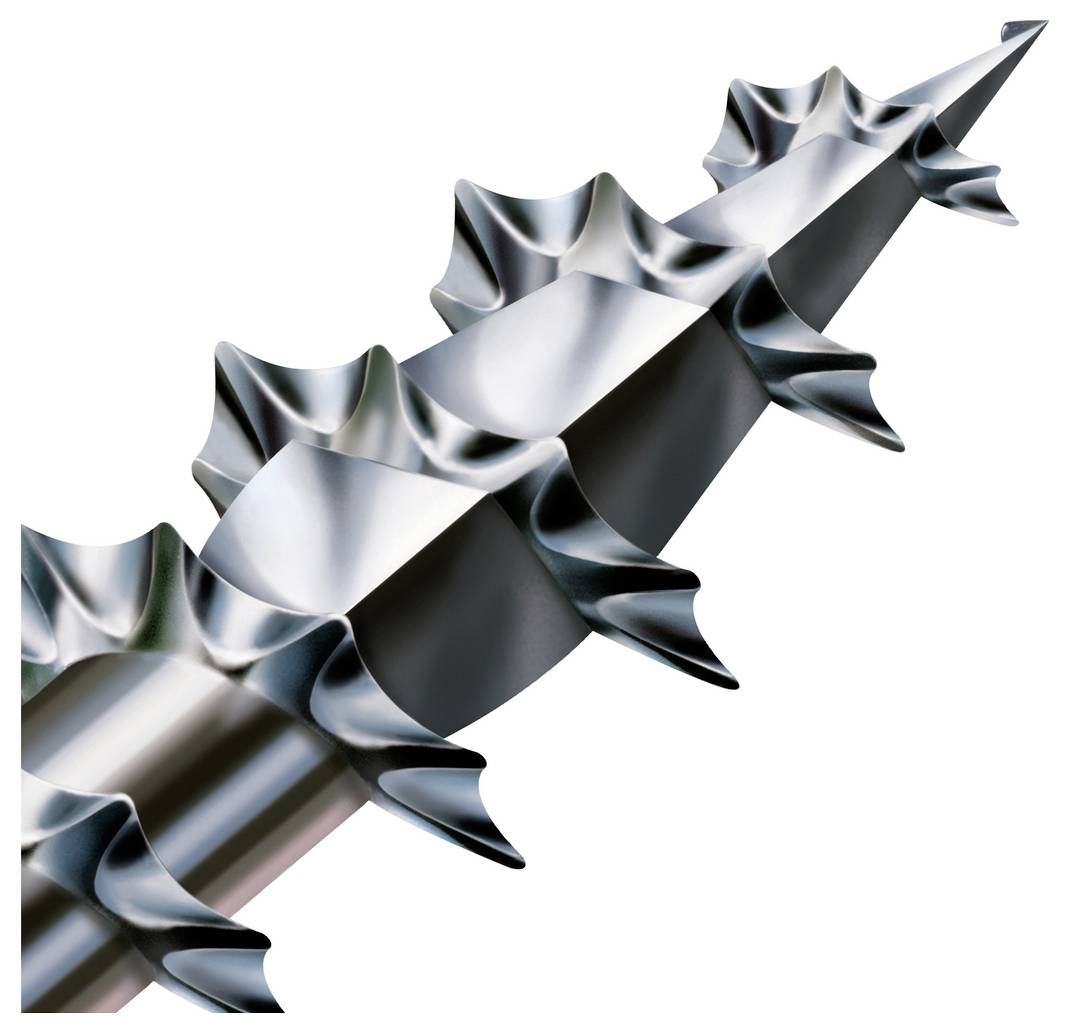

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.

With WIROX, SPAX has developed a coating that is far superior to zinc plating in terms of corrosion protection. With WIROX no chrome (VI) is used, the screws can be loaded just as well after years in the not directly weathered external area as well as environmentally friendly. WIROX screws are the first choice for all open buildings without direct weathering such as carports or pergoles, for direct weather stresses as with terraces we recommend our screws in the stainless steel version.
