Buy SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel

A black audio amplifier with multiple connections, including HDMI input, 5.1/2-channel switching and volume control.

Black digital audio decoder device with multiple audio inputs, HDMI output and power input (DC 5V).

Black audio control panel with HDMI, headphone socket, switch for 5.1 or 2 channels, input selection, power indicators and volume control.

Rear view of an audio distributor with connections for SW, CEN, SR, SL, FR, FL, HDMI OUT and DC 5V.

External sound card in black with multiple inputs, including optical and coaxial connections. USB cable alongside.

A home cinema system with speakers and an amplifier stands in front of a large screen displaying a woodland and meadow landscape.

'Diagram of an audio converter with six RCA ports, HDMI output to television, HDMI input from console, headphone socket.'

1/7

Our service for you

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.97 / piece)

€

Report legal concerns

Highlights & Details

Speaka Professional SP-HAE-300 HDMI audio extractor, supports 5.1CH 4K 3D

HDMI resolutions up to 2160p@30 Hz
32~192 kHz sampling rate
5.1CH/2.0 audio modes
Signal-to-noise ratio: 120 db
Multiple interfaces
Input: HDMI
Output: HDMI; SW, CEN, SR, SL, FR, FL; 3.5 mm headphone port
Adjustable volumeSupports 3D

Technical specifications

Sampling rate: 32~192 kHz
Signal-to-noise ratio 120 dB
HDCP 1.4 support

Connection type: HDMI
RCA

No. of A connectors: 1 x

Type A: HDMI®

No. of B connections: 5 x

Type B: RCA socket (phono)
HDMI®

Video resolution: 3840 x 2160 Pixel
4096 x 2160 Pixel

Factory colour: Black

Connector version: straight

Cable features: incl. volume control

Version: Extractor

Cable use: Audio/phono

Signal flow direction: Unidirectional (uni)

Weight: 182 g

Length: 138 mm

Width: 96 mm

Height: 21 mm

Dim: (L x W x H) 138 x 96 x 21 mm

Supported audio file formats: Dolby-AC3
DTS
LPCM 2.0
LPCM 5.1
PCM

Port: 1 port

Range of use: Home cinema/HD beamer

Plastic free packaging: Plastic-free packaging

Product type: Audio/phono Extractor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2617146 SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel

Conformity certificate

Conformity certificate 2617146 SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel

Description

This audio decoder can automatically convert the HDMI input into an analogue 5.1 channel audio output and supports the decoding of Dolby AC-3/DTS (including 5.1 RAW digital audio streaming). In this way it can be used in versatile ways, for instance, at home, in schools, in concert halls, in cinemas and other public places, in order to enjoy the effect of DTS or Dolby.

This text is machine translated.

Features

HDMI input resolution: Up to 3840x2160@30 Hz, 4096x2160@30 Hz
Supports 6CH synchronous volume adjustment and 3D
192 KHz auto decode: Built-in high-performance RTOS operating system and audio decoder chip, 192 KHz/24-bit; Supports DTS/Dolby AC-3(LPCM/PCM/RAW). SupportsMP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG and M4AHigh compatibility: Supports network players, HDTVs, Blu-ray DVD players, DVD players, DM500S, DM800HD, game consoles, PlayStation PS2,PS3, PS4/Pro, and Xbox One
Connects to your AV audio amplifier or receiver (e.g. Yamaha, Logitech) - perfect for enjoying digital home theater and surround soundMetal housing

Scope of delivery

HDMI audio extractor
Micro USB power cable
User manual

Hints

For power supply in operation, you need a free USB-A connection at an available device or an optional USB power adapter (5V DC/min. 1 A).

Frequently Bought Together

(^*All information is plus legal VAT)

This article

SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel

Conrad Electronic

€ 36.97^*

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

Conrad Electronic

€ 0.34^*

SpeaKa Professional HDMI Cable HDMI-A plug, HDMI-A plug 1.50 m Black SP-9001756 4K UHD, Audio Return Channel, gold plate

Conrad Electronic

€ 2.51^*

SpeaKa Professional SP-7869764 RCA Audio/phono Cable [2x RCA plug (phono) - 2x RCA plug (phono)] 1.50 m Black

Conrad Electronic

€ 2.51^*

Total price:

€ 42.33^*

What kind of Audio & HDMI Converters are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 24 pc(s)

Conrad Electronic

€ 7.97^*

SpeaKa Professional HDMI Cable HDMI-A plug, HDMI-A plug 1.50 m Black SP-9001756 4K UHD, Audio Return Channel, gold plate

Conrad Electronic

€ 2.51^*

SpeaKa Professional SP-7869764 RCA Audio/phono Cable [2x RCA plug (phono) - 2x RCA plug (phono)] 1.50 m Black

Conrad Electronic

€ 2.51^*

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

Conrad Electronic

€ 0.34^*

-57%

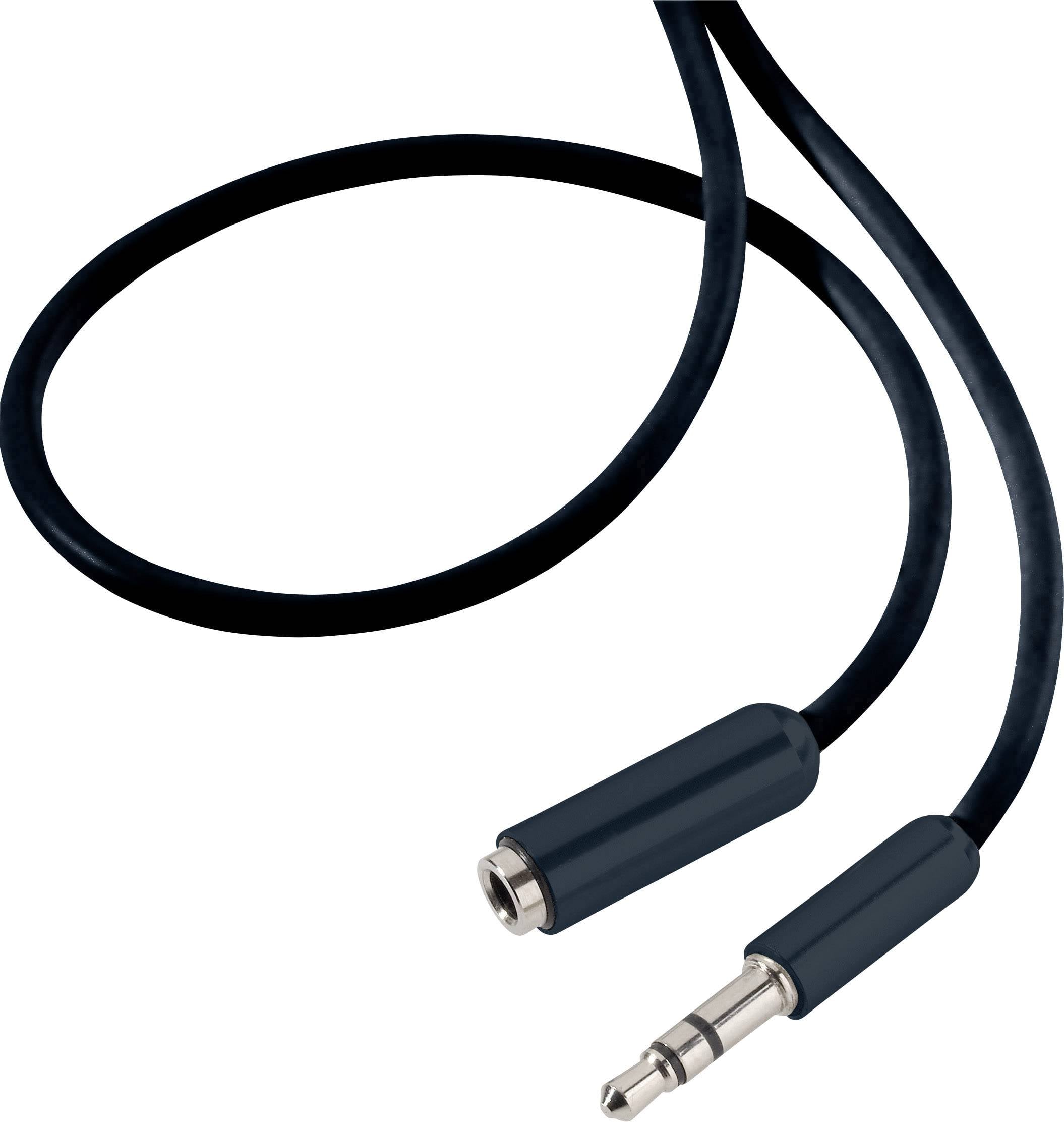

SpeaKa Professional SP-7870692 Jack Audio/phono Cable extension [1x Jack plug 3.5 mm - 1x Jack socket 3.5 mm] 1.50 m Bla
